M4171.10 Black Photoluminescent Tile Nosing, 8 FT | Ecoglo® M4.10-E30 Series
Couldn't load pickup availability

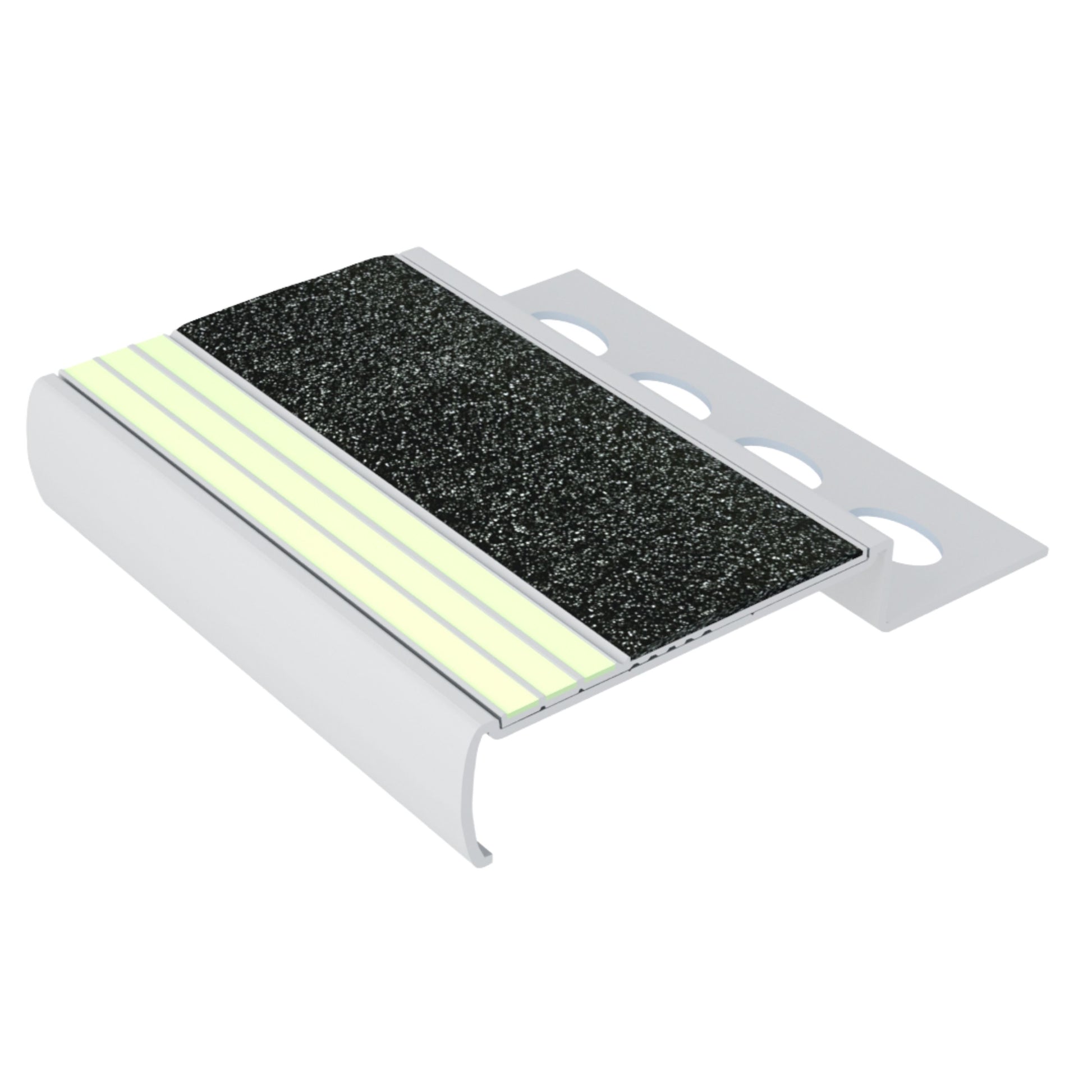

M4171.10 Black Photoluminescent Tile Nosing | Ecoglo® M4.10-E30 Series
Ecoglo® M4171.10 is the black anti-slip model in the M4.10-E30 photoluminescent tile stair-nosing series. It is engineered for tiled stair installations using tile approximately 3/16" to 11/32" thick (5 mm to 8.5 mm) and combines photoluminescent stair-edge visibility, anodized aluminum construction and hard-wearing black silicon-carbide slip resistance.
Photoluminescent Tile Stair Nosing for Commercial & Government Projects
Ecoglo® M4171.10 is designed for specification-driven tiled stair installations where architects, general contractors, government contractors and facility owners require durable stair-edge definition, slip resistance and passive photoluminescent visibility.
The M4171.10 is part of a purpose-designed anodized-aluminum tile-nosing system rather than a temporary field-applied marking. Its photoluminescent material identifies the leading edge while the black silicon-carbide surface provides durable traction and visual contrast.
The photoluminescent material absorbs energy from suitable ambient illumination and releases that stored energy as visible light when normal illumination is reduced. No electrical connection is required at the stair nosing itself.
Engineered for Tile
The M4.10 profile is designed for tiled stairs using tile approximately 3/16"–11/32" or 5–8.5 mm thick.
Black Silicon-Carbide Anti-Slip
M4171.10 uses hard-wearing black silicon-carbide non-slip material integrally bonded to the aluminum substrate.
Passive Emergency Visibility
Photoluminescent technology helps maintain visible stair-edge definition when normal lighting conditions are reduced.

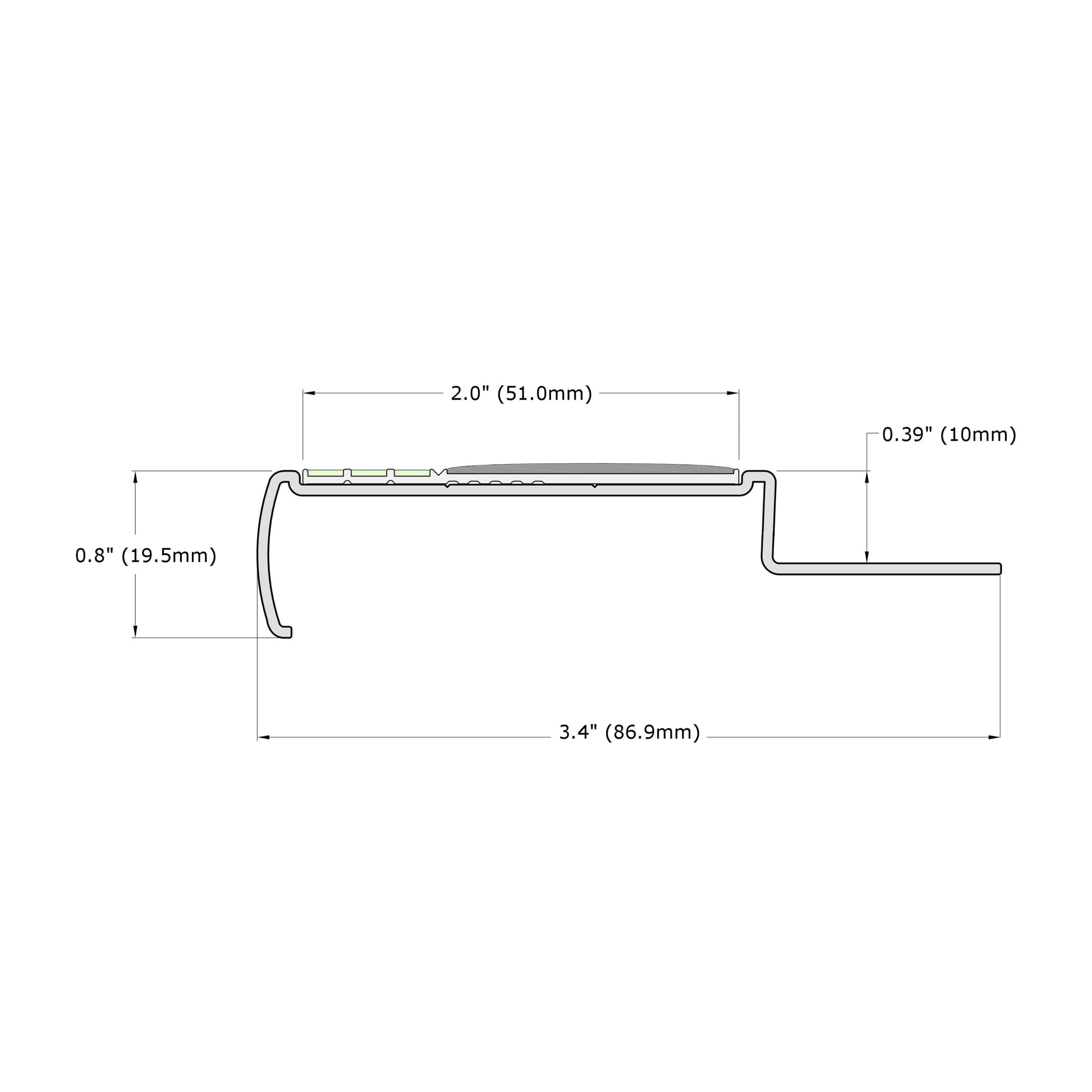

M4171.10 Technical Specifications
Model-specific information helps architects, estimators, flooring contractors and project managers accurately identify the product during specification, submittal, procurement and inspection.
| Specification | Ecoglo® M4171.10 Black |
|---|---|
| Manufacturer | Ecoglo® |
| Model | M4171.10 |
| Series | M4.10-E30 Photoluminescent Tile Nosing |
| Anti-Slip Color | Black |
| Application | Tiled stair installations |
| Compatible Tile Thickness | 3/16"–11/32" / 5–8.5 mm |
| Horizontal Surface | Approx. 2.0" / 51 mm |
| Front Profile Height | Approx. 0.8" / 19.5 mm |
| Tile Profile Height | Approx. 0.4" / 10 mm |
| Overall Profile Width | Approx. 3.4" / 86.9 mm |
| Standard Length | 8 ft |
| Base Material | Anodized aluminum |
| Standard Finish | Clear anodized aluminum |
| Optional Finishes | Light Bronze and Dark Bronze anodized finishes available at additional cost |
| Anti-Slip Material | Hard-wearing silicon-carbide non-slip material integrally bonded to the aluminum substrate |
| Insert Supply | Inserts supplied unattached |
| Insert Installation | Installed using premium polyurethane adhesive; adhesive is not included |
| Manufacturer Listing | UL 1994 and ULC 572 listed |
| Country of Manufacture | Made in the USA |
Download the Ecoglo® M4.10-E30 Technical Data Sheet
Include the manufacturer technical data sheet in project submittals, product reviews and close-out documentation.
Engineered for High-Traffic Commercial & Institutional Stairways
Ecoglo® designed the M4.10-E30 profile for demanding tiled stair environments where pedestrian traffic, abrasion, cleaning and long-term stair-edge visibility are important.
- Raised ridges help protect the photoluminescent strips from abrasive wear.
- The ridged photoluminescent surface contributes additional slip resistance.
- Hard-wearing silicon-carbide material is integrally bonded to the aluminum substrate.
- The anodized finish helps resist corrosion and abrasive wear.
- Manufacturer information references accelerated UV and weathering testing.
- Ecoglo® reports less than visually detectable performance loss following 6,000 hours of accelerated UV exposure.
- The product is aluminum based and recyclable.
- No electrical energy is required at the stair nosing itself.
How Ecoglo® M4171.10 Can Help Reduce Avoidable Inspection Delays
Incorrect products, incompatible tile profiles, missing documentation or installations that differ from approved project documents can contribute to RFIs, deficiencies, rework and delayed project close-out.
Ecoglo® M4171.10 gives the project team a clear manufacturer → series → model → technical data → approved detail → installation path that can simplify verification.
1Specify the Exact Model
Identify the product as Ecoglo® M4171.10 Black, M4.10-E30 Series rather than only “photoluminescent stair nosing.”
2Verify Tile Thickness
Confirm that finished tile thickness falls within the published M4.10 range of approximately 5–8.5 mm.
3Submit Manufacturer Documentation
Include the M4.10-E30 technical data before installation so the exact model, dimensions, materials and listing information can be reviewed.
4Resolve Code Requirements Early
Coordinate applicable photoluminescent or luminous egress requirements with the architect, code consultant and reviewing authority before tiled stairs are completed.
5Match the Approved Detail
Confirm tile interface, insert placement, stair-edge position and installation against approved project documents.
6Keep Documentation for Inspection
Retain the approved product submittal and model documentation so the installed product can be identified during final review.
Ecoglo® M4171.10 for U.S. Commercial & Government Projects
Ecoglo® M4171.10 is designed for U.S. tiled-stair projects where architects, general contractors, government contractors and facility owners require a durable photoluminescent stair-edge system with integrated slip resistance.
For U.S. Architects & Specifiers
- Specify Ecoglo® M4171.10 by exact model number
- Confirm M4.10 compatibility with the specified tile
- Identify the black anti-slip configuration
- Include current manufacturer technical documentation
- Review applicable luminous egress requirements
- Coordinate stair-edge details before construction
For U.S. General & Government Contractors
- Confirm contract and approved-product requirements
- Submit technical documentation before purchasing
- Coordinate project quantities and 8-ft lengths
- Verify the specified M4171.10 Black model
- Retain approved documentation for inspection
- Resolve AHJ questions before final close-out
U.S. Luminous Egress Path Marking Considerations
For U.S. projects, architects, code consultants and contractors should confirm the locally adopted building and fire codes and determine whether luminous egress path marking requirements apply.
Important: Applicability depends on occupancy, building height, adopted code, amendments and project-specific conditions. Final approval rests with the Authority Having Jurisdiction.
M4171.10 for Large U.S. Commercial, Institutional & Government Projects
- Federal government facilities
- State government buildings
- Municipal facilities
- Courthouses
- Airports
- Transit and rail facilities
- Hospitals and healthcare facilities
- Universities and schools
- High-rise buildings
- Commercial office towers
- Hotels
- Stadiums and arenas
- Institutional buildings
- Public infrastructure projects
Ecoglo® M4171.10 for Canadian Commercial & Government Projects
Ecoglo® M4171.10 can be considered for Canadian tiled-stair projects requiring durable photoluminescent step-edge visibility and integrated anti-slip protection. The Ecoglo® M4.10-E30 technical documentation identifies ULC 572 listing.
Requirements applicable to Canadian construction depend on the province, territory, municipality, project documents and applicable reviewing authority.
For Canadian Architects & Specifiers
- Specify Ecoglo® M4171.10 by exact model number
- Confirm M4.10 compatibility with the specified tile
- Specify the black anti-slip configuration
- Include current manufacturer technical documentation
- Review applicable provincial or territorial requirements
- Resolve stair-edge details before tender or construction
For Canadian General & Government Contractors
- Confirm tender and approved-product requirements
- Submit technical documentation before purchasing
- Coordinate quantities and 8-ft lengths
- Verify the specified M4171.10 Black model
- Retain approved documentation for inspection
- Resolve authority questions before final close-out
Canadian Building Code & Inspection Considerations
Canadian building regulations are adopted and enforced by provincial, territorial and other applicable authorities. The design team should verify the requirements in force for the project's actual location.
M4171.10 for Large Canadian Commercial, Institutional & Government Projects
- Government of Canada facilities
- Provincial government buildings
- Municipal facilities
- Courthouses
- Airports
- Transit and rail facilities
- Hospitals and healthcare facilities
- Universities and schools
- High-rise buildings
- Commercial office towers
- Hotels
- Stadiums and arenas
- Institutional buildings
- Public infrastructure projects
Architect & Specification Support
Specifying the exact stair-nosing model during design development helps coordinate tile thickness, stair geometry, anti-slip color, photoluminescent requirements and architectural finish before material reaches the jobsite.
Manufacturer: Ecoglo®
Product: M4171.10 Black Photoluminescent Tile Stair Nosing, M4.10-E30 Series.
Application: Tiled stair installations using finished tile approximately 3/16"–11/32" (5–8.5 mm) thick.
Material: Anodized-aluminum stair-nosing profile incorporating photoluminescent step-edge material and integrally bonded black silicon-carbide non-slip material.
Standard Finish: Clear anodized aluminum.
Length: 8 ft.
Installation: Install in accordance with current manufacturer instructions, approved project documents and applicable requirements.
Submittals: Provide current product data, applicable listing documentation, architectural details and installation information required by the contract documents.
Compare Other Ecoglo® M4.10-E30 Tile Nosing Colors
Each M4.10-E30 color has its own product listing so architects, contractors and procurement teams can identify the exact anti-slip color required.
M4171.10 Black
Black silicon-carbide anti-slip insert with Ecoglo® photoluminescent stair-edge marking.
Currently Viewing
M4161.10 Gray
M4.10-E30 photoluminescent tile stair nosing with gray silicon-carbide anti-slip insert.
View M4161.10 Gray →
M4151.10 Yellow
M4.10-E30 photoluminescent tile stair nosing with yellow silicon-carbide anti-slip insert.
View M4151.10 Yellow →Frequently Asked Questions About Ecoglo® M4171.10
What is Ecoglo® M4171.10?
Ecoglo® M4171.10 is the black anti-slip model in the M4.10-E30 photoluminescent tile stair-nosing series.
What tile thickness fits M4171.10?
The M4.10 profile is designed for tile approximately 3/16"–11/32" thick, equivalent to about 5–8.5 mm.
What length is M4171.10?
The M4.10-E30 tile stair-nosing series is available in 8-foot lengths.
Is M4171.10 slip resistant?
Yes. It incorporates hard-wearing black silicon-carbide anti-slip material integrally bonded to the aluminum substrate.
Does M4171.10 require electricity?
No electrical connection is required at the stair nosing itself. The photoluminescent material charges from suitable ambient illumination.
Can M4171.10 help reduce inspection delays?
It can help reduce avoidable review and inspection delays when the exact model is selected early, tile thickness is verified, manufacturer documentation is submitted before installation and the finished work matches approved project documents. Final approval remains with the applicable reviewing authority.
Does the IBC address luminous stair-edge markings?
Yes. Section 1025 of the 2024 International Building Code addresses luminous egress path markings in specified high-rise occupancies.
Is M4171.10 suitable for U.S. government projects?
M4171.10 can be considered for U.S. government and institutional projects where the specification calls for an appropriate photoluminescent tile stair-nosing system. Verify contract, listing and jurisdictional requirements before procurement.
Is M4171.10 suitable for Canadian government projects?
M4171.10 can be considered for Canadian federal, provincial, municipal and institutional projects where an appropriate photoluminescent tile stair-nosing system is specified.
Is the Ecoglo® M4.10-E30 Series ULC listed?
The Ecoglo® M4.10-E30 manufacturer technical documentation identifies the series as ULC 572 listed. Current documentation should be provided when listing verification is required.
What other M4.10-E30 colors are available?
Related products include M4161.10 Gray and M4151.10 Yellow .
Specifying M4171.10 for a U.S. Government or Large Commercial Project?
Confirm tile thickness, stair detail, quantity, applicable luminous egress requirements and project specifications before releasing material for construction.
Specifying M4171.10 for a Canadian Government or Large Commercial Project?
Confirm tile thickness, stair detail, quantity, applicable provincial or territorial requirements and project specifications before releasing material for construction.
