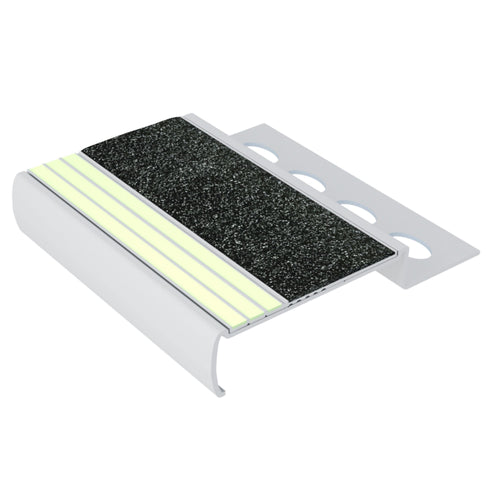

M4171.10 · Black
Black Photoluminescent Tile Nosing
Clear-anodized aluminum M4.10-E30 profile with photoluminescent step-edge marking and a hard-wearing black silicon-carbide anti-slip surface.
View M4171.10 Black →Collection: Ecoglo® Photoluminescent Tile Stair Nosings
Ecoglo® M4 Series · Photoluminescent Step-Edge Safety
Ecoglo® Photoluminescent Tile Stair Nosings
Ecoglo® M4 Series photoluminescent tile stair nosings combine luminous step-edge visibility, anodized-aluminum construction and integrated slip-resistant protection in profiles engineered specifically for tiled stairs.
Designed for commercial, institutional, government and high-rise construction, these luminous tile stair nosings help architects and contractors coordinate tile thickness, stair-edge protection, anti-slip performance and photoluminescent egress requirements before installation.
Designed Around Tile Thickness
Photoluminescent Step-Edge Visibility
Integrated Anti-Slip Protection
Commercial & Government Projects
Which Ecoglo® Photoluminescent Tile Nosing Fits My Tile?
Quick answer: Ecoglo® M4.10 profiles are designed for tile approximately 3/16" to 11/32" (about 5–8.5 mm) thick. Ecoglo® M4.125 profiles are designed for tile approximately 3/8" to 1/2" (about 9–12.5 mm) thick.
The E30 and E40 designations refer to different photoluminescent configurations. For the M4.10 family, Ecoglo® describes E30 as three photoluminescent strips with a non-slip section across the 2-inch horizontal surface, while E40 uses five photoluminescent strips for greater luminous area.
Shop M4.10-E30 Photoluminescent Tile Stair Nosings
The current ComposiGrip collection includes M4.10-E30 tile stair nosings in black, gray and yellow anti-slip configurations. Each product below is designed for approximately 3/16"–11/32" (5–8.5 mm) tile and is supplied in an 8 ft length.

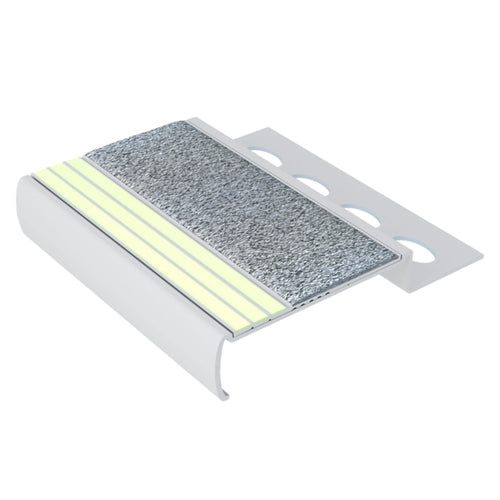

M4161.10 · Gray
Gray Photoluminescent Tile Nosing
M4.10-E30 tile stair nosing with protected luminous markings and a gray silicon-carbide anti-slip surface for a more neutral architectural appearance.
View M4161.10 Gray →

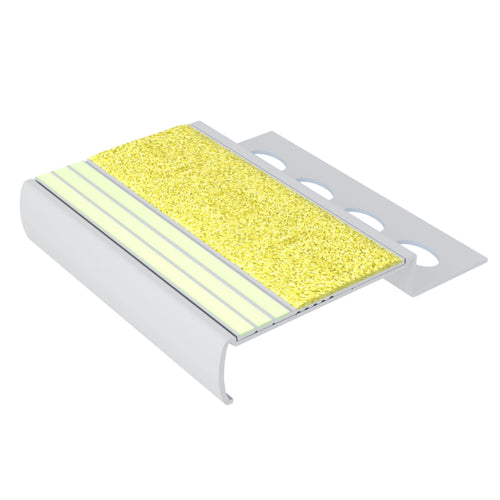

M4151.10 · Yellow
Yellow Photoluminescent Tile Nosing
M4.10-E30 profile with a high-visibility yellow silicon-carbide anti-slip surface and adjacent protected photoluminescent step-edge strips.
View M4151.10 Yellow →M4.10 vs. M4.125 Tile Stair Nosing Profiles
Confirm finished tile thickness before releasing material for construction. Selecting the correct M4 profile early can help prevent dimensional conflicts, field modifications and replacement material.
| Ecoglo® Series | Tile Thickness | Photoluminescent Configuration | Typical Selection Consideration |
|---|---|---|---|
| M4.10-E30 | 3/16"–11/32" Approx. 5–8.5 mm |
3 photoluminescent strips plus non-slip section across the 2" surface | Tiled stairs requiring luminous step-edge visibility with integrated anti-slip protection |
| M4.10-E40 | 3/16"–11/32" Approx. 5–8.5 mm |
5 photoluminescent strips | Projects requiring or preferring a greater photoluminescent area |
| M4.125-E30 | 3/8"–1/2" Approx. 9–12.5 mm |
E30 photoluminescent configuration | Thicker tiled stair assemblies requiring luminous step-edge marking |
| M4.125-E40 | 3/8"–1/2" Approx. 9–12.5 mm |
E40 photoluminescent configuration | Thicker tile with increased photoluminescent area |
Specifier note: Coordinate the final profile with finished tile thickness, architectural drawings, project specifications, applicable code requirements and the Authority Having Jurisdiction.
E30 vs. E40 Photoluminescent Tile Nosing
E30 Series
Luminous Visibility + Non-Slip Protection
Ecoglo® describes the M4.10-E30 as using three photoluminescent strips together with a non-slip section across its 2-inch horizontal surface.
E40 Series
Greater Photoluminescent Area
The M4.10-E40 uses five photoluminescent strips, giving it more luminous area than the corresponding E30 configuration.
Tile Stair Nosings Designed for Specification-Driven Construction
Photoluminescent Visibility
Helps identify the leading edge of tiled stairs during reduced-light conditions and power interruptions.
Integrated Slip Resistance
Combines luminous step-edge identification with a durable slip-resistant component in one architectural stair-nosing system.
Designed Around Tile
Defined M4.10 and M4.125 profiles allow contractors to coordinate the nosing with the specified finished tile thickness.
Inspection & Submittal Readiness
Reduce Avoidable Stair-Nosing Submittal & Close-Out Delays
On commercial, institutional and government projects, an unresolved stair-edge detail can create RFIs, rejected submittals, field modifications, deficiencies and rework. A traceable manufacturer, series, model and technical-data path makes product review easier.
1 Confirm Finished Tile Thickness
Verify whether the tiled stair requires an M4.10 or M4.125 profile before material is ordered.
2 Identify the Exact Product Series
State the Ecoglo® M4 profile, E30/E40 configuration and exact anti-slip color where applicable.
3 Submit Manufacturer Documentation Early
Include applicable product data, dimensions, installation information, architectural details and compliance documentation.
4 Coordinate Egress Requirements
Determine whether luminous egress path-marking provisions apply before the tiled stair finish is completed.
5 Install to the Approved Detail
Verify model, orientation, tile interface and placement against approved project documents and current manufacturer instructions.
Ecoglo® Tile Nosing Inspection-Readiness Checklist
- Exact Ecoglo® M4 product series identified
- Finished tile thickness verified
- M4.10 or M4.125 profile confirmed
- E30 or E40 configuration confirmed
- Anti-slip color identified where applicable
- Manufacturer product data included in the submittal
- Architectural stair details coordinated
- Installation instructions available to the installer
- Luminous egress requirements reviewed where applicable
- Installed stair-edge locations consistent with approved documents
- Locally adopted building and fire code reviewed
- AHJ-specific requirements addressed before final inspection
Important: Product documentation and early coordination can help reduce avoidable review delays, but no manufacturer or distributor can guarantee inspection approval. Final acceptance is determined by the applicable project requirements and Authority Having Jurisdiction.
U.S. Luminous Egress Path Marking Considerations
The 2024 International Building Code addresses luminous egress path markings in Section 1025 for specified high-rise occupancies. Section 1025.2.1 addresses a solid, continuous marking at the horizontal leading edge of applicable steps. Section 1025.4 recognizes luminous marking materials complying with UL 1994 or ASTM E2072 under the conditions stated by the code.
Step-Edge Markings
Applicable stair steps require a continuous stripe at the horizontal leading edge, with dimensional and positioning requirements set by the adopted code.
Photoluminescent Materials
Confirm the listing and certification documentation applicable to the exact Ecoglo® model being submitted.
Charging Illumination
Photoluminescent systems require suitable ambient illumination to charge. Verify illumination conditions for the actual installation.
Code disclaimer: Applicability varies by occupancy, building height, adopted code edition, local amendments and project conditions. Always verify with the architect, code consultant and AHJ.
Ecoglo® Tile Stair Nosings for Canadian Construction Projects
For Canadian commercial, institutional and government projects, product selection should be coordinated with the applicable provincial or territorial requirements, local regulations, contract documents, project specifications and authority requirements. Requirements can differ by province, municipality, occupancy and project type.
For Architects & Consultants
- Identify the exact Ecoglo® M4 series
- Coordinate finished tile thickness
- Review architectural stair details
- Confirm luminous marking requirements
- Include required technical documentation
For General & Government Contractors
- Verify tender and specification requirements
- Confirm approved-product requirements
- Submit technical documents before purchasing
- Coordinate quantities and project phasing
- Maintain product identification for inspection
Built for Commercial, Institutional & Government Tile Stair Projects
Government Buildings
Federal, state/provincial, municipal and public-sector facilities.
Airports & Transit
Transportation facilities with heavy pedestrian traffic and tiled stairs.
Hospitals
Healthcare and institutional facilities requiring durable stair-edge systems.
Schools & Universities
High-traffic education facilities and public stairways.
High-Rise Buildings
Commercial towers and multi-storey buildings with egress stair requirements.
Hotels
Hospitality projects requiring durable, architectural tile stair details.
Stadiums & Arenas
Public-assembly facilities with repeat stair-edge installations.
Major Commercial Projects
Large developments where model consistency and documentation matter.
Architect & Specification Support
Identifying the Ecoglo® M4 Series during design development allows the flooring system, tile thickness, stair detail, photoluminescent performance and anti-slip requirements to be coordinated before construction.
Suggested Basis-of-Design Language
Manufacturer: Ecoglo®
Product: M4 Series photoluminescent tile stair nosing selected to suit the specified finished tile thickness.
Performance: Provide photoluminescent step-edge marking with integrated slip-resistant material in accordance with approved project requirements.
Profile: M4.10 or M4.125 as required by finished tile thickness.
Configuration: E30 or E40 as indicated by approved drawings and specifications.
Submittals: Provide applicable product data, installation instructions, architectural details and compliance documentation.
Installation: Install in accordance with current manufacturer instructions, approved project documents and applicable requirements.
Technical Documentation for Project Review
Product Data
Identify model, dimensions, profile, material and intended application.
CAD / BIM Details
Coordinate the nosing with architectural stair and flooring details.
Installation Information
Give installers and reviewers a clear manufacturer reference.
Specifications
Support architect and consultant review during design and product approval.
Compliance Documentation
Provide applicable documents required for project and code review.
Model Traceability
Connect the installed stair nosing to the approved product series and model.
-
M4151.10 Yellow Photoluminescent Tile Nosing 8 FT | Ecoglo® M4.10-E30 Series
Regular price $160.80 USDRegular price -
M4161.10 Gray Photoluminescent Tile Nosing | Ecoglo® M4.10-E30 Series
Regular price $160.80 USDRegular price -
M4171.10 Black Photoluminescent Tile Nosing, 8 FT | Ecoglo® M4.10-E30 Series
Regular price $160.80 USDRegular price
Frequently Asked Questions About Ecoglo® Photoluminescent Tile Stair Nosings
What is an Ecoglo® photoluminescent tile stair nosing?
Ecoglo® photoluminescent tile stair nosings are anodized-aluminum step-edge profiles engineered specifically for tiled stairs. They combine luminous step-edge visibility with integrated slip-resistant protection to help define the leading edge of the stair in normal and reduced-light conditions.
M4171.10 Black · M4.10-E30
View M4171.10 →
Which Ecoglo® tile stair nosing fits my tile?
The M4.10 profile is compatible with tile approximately 3/16" to 11/32" thick, or about 5–8.5 mm. The M4.125 profile is compatible with tile approximately 3/8" to 1/2" thick, or about 9–12.5 mm. Confirm finished tile thickness before ordering.
What is the difference between Ecoglo® E30 and E40 tile nosings?
The configurations differ in their photoluminescent layout. Ecoglo® describes the M4.10-E30 as having three photoluminescent strips together with a non-slip section across the 2-inch horizontal surface. The M4.10-E40 uses five photoluminescent strips for a larger luminous area.
What colors are available in the M4.10-E30 tile stair nosing?
The current ComposiGrip collection includes M4171.10 Black, M4161.10 Gray and M4151.10 Yellow. The anti-slip color provides traction and daytime contrast; the adjacent photoluminescent material provides the luminous visibility.
Does Ecoglo® photoluminescent tile stair nosing require electricity?
No electrical connection is required at the stair nosing. The photoluminescent material absorbs energy from suitable natural or artificial ambient light and releases stored energy as visible illumination when the primary light level falls.
Is the M4.10-E30 tile stair nosing slip resistant?
Yes. The M4.10-E30 combines photoluminescent step-edge marking with hard-wearing silicon-carbide anti-slip material. For example, M4171.10 uses a black silicon-carbide non-slip surface integrally bonded to the aluminum substrate.
M4171.10 Black · Anti-Slip M4.10-E30
View M4171.10 →
What length are the current M4.10-E30 tile nosings?
The M4151.10, M4161.10 and M4171.10 products currently listed by ComposiGrip are supplied in 8-foot lengths. Confirm project quantities, cutting requirements and freight arrangements before ordering large quantities.
Can Ecoglo® tile stair nosings be used for commercial and government projects?
Yes. The M4 Series is particularly relevant to commercial, institutional and government construction where dimensional consistency, product documentation, architectural coordination and repeatable stair-edge installation are important.
Does the International Building Code address luminous stair-edge markings?
Yes. The 2024 International Building Code addresses luminous egress path markings in Section 1025 for specified high-rise occupancies. Section 1025.2.1 addresses continuous markings at the horizontal leading edge of applicable steps. Code applicability must be verified for the specific project and jurisdiction.
What standards are referenced for photoluminescent egress path markings?
Section 1025.4 of the 2024 IBC identifies UL 1994 and ASTM E2072 as standards for luminous egress path marking materials under the conditions stated by the code. Confirm certification and listing documentation for the exact Ecoglo® product being submitted.
When should the tile stair nosing be selected?
Ideally, tile stair nosing should be selected during design development or the submittal stage. Early selection allows the architect, flooring contractor and general contractor to coordinate finished tile thickness, stair geometry, anti-slip color and luminous marking requirements before finishing work begins.
Can Ecoglo® help make a project more inspection-ready?
A clearly identified product system, verified tile thickness, manufacturer documentation and installation that matches approved project documents can help reduce avoidable submittal questions, deficiencies and rework. Final inspection approval always rests with the applicable project requirements and Authority Having Jurisdiction.
Planning a Commercial, Government or Institutional Tile Stair Project?
Compare M4171.10 Black, M4161.10 Gray and M4151.10 Yellow M4.10-E30 photoluminescent tile stair nosings. For large projects, confirm finished tile thickness, stair details, quantities and specification requirements before releasing material for construction.
