M4151.10 Yellow Photoluminescent Tile Nosing 8 FT | Ecoglo® M4.10-E30 Series
Couldn't load pickup availability

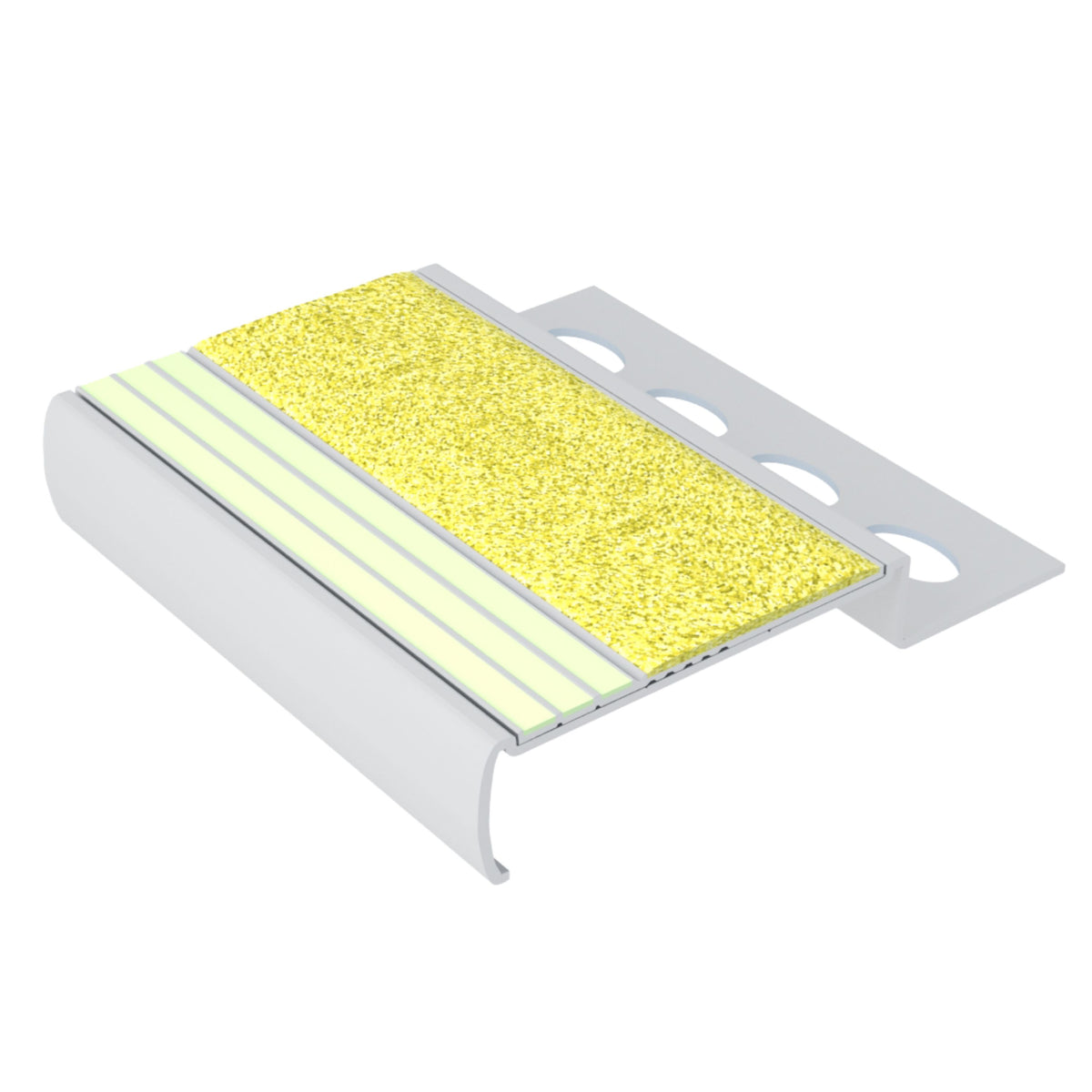

M4151.10 Yellow Photoluminescent Tile Nosing, 8 FT | Ecoglo® M4.10-E30 Series
Ecoglo® M4151.10 is the yellow anti-slip model in the M4.10-E30 photoluminescent tile stair-nosing series. Designed for tiled stairs using tile approximately 3/16" to 11/32" thick (5 mm to 8.5 mm), it combines photoluminescent stair-edge visibility with a high-visibility yellow silicon-carbide anti-slip surface and durable anodized-aluminum construction.
High-Visibility Photoluminescent Tile Stair Nosing for Egress & Commercial Stairs
Ecoglo® M4151.10 is designed for specification-driven tiled stair installations where architects, general contractors, government contractors and facility owners require durable stair-edge definition, slip resistance and passive photoluminescent visibility.
The combination of a yellow anti-slip surface and photoluminescent stair-edge material helps make the leading edge of the tread easier to identify across varying lighting conditions. This is useful in specification-driven commercial, institutional and egress applications where stair-edge conspicuity is important.
The photoluminescent material absorbs energy from suitable ambient illumination and releases stored energy as visible light when normal illumination is reduced. No electrical connection is required at the stair nosing itself.
Engineered for Tile
The M4.10 profile is designed specifically for tiled stairs using tile approximately 3/16"–11/32", or 5–8.5 mm, thick.
High-Visibility Yellow Anti-Slip
M4151.10 uses hard-wearing yellow silicon-carbide non-slip material integrally bonded to the aluminum substrate, providing traction and conspicuous visual contrast.
Photoluminescent Egress Visibility
Photoluminescent technology helps maintain visible stair-edge definition when normal lighting conditions are reduced.
M4151.10 Yellow Technical Specifications
Model-specific technical information helps architects, estimators, flooring contractors, general contractors and project managers identify the exact stair-nosing product during specification, submittal, procurement and inspection.
| Specification | Ecoglo® M4151.10 Yellow |
|---|---|
| Manufacturer | Ecoglo® |
| Model | M4151.10 |
| Series | M4.10-E30 Photoluminescent Tile Nosing |
| Anti-Slip Color | Yellow |
| Application | Tiled stair installations |
| Compatible Tile Thickness | 3/16"–11/32" 5 mm–8.5 mm |
| Horizontal Surface | Approx. 2.0" / 51 mm |
| Front Profile Height | Approx. 0.8" / 19.5 mm |
| Tile Profile Height | Approx. 0.4" / 10 mm |
| Overall Profile Width | Approx. 3.4" / 86.9 mm |
| Standard Length | 8 ft |
| Base Material | Anodized aluminum |
| Standard Finish | Clear anodized aluminum |
| Optional Finishes | Light Bronze and Dark Bronze anodized finishes available at additional cost |
| Anti-Slip Material | Hard-wearing silicon-carbide non-slip material integrally bonded to the aluminum substrate |
| Insert Supply | Inserts are supplied unattached |
| Insert Installation | Installed into the aluminum nosing using premium polyurethane adhesive; adhesive is not included |
| Manufacturer Listing | UL 1994 and ULC 572 listed |
| Country of Manufacture | Made in the USA |
Download the Ecoglo® M4.10-E30 Technical Data Sheet
Architects, specification consultants, general contractors and government contractors can include the manufacturer technical data sheet in project submittals, product reviews and close-out documentation.
High-Visibility Stair-Edge Identification for Egress Routes
M4151.10 combines two visibility characteristics in one architectural stair-nosing profile: a conspicuous yellow anti-slip surface under normal illumination and photoluminescent stair-edge material for reduced-light conditions.
- Yellow anti-slip material provides strong visual stair-edge contrast under normal lighting.
- Photoluminescent material helps identify the leading edge when normal lighting is reduced.
- Suitable for consideration on designated egress stairs where the project specification calls for photoluminescent step-edge marking.
- Particularly relevant for public, institutional, transportation and high-occupancy environments.
- Does not require an electrical connection at the stair nosing.
Engineered for High-Traffic Commercial & Institutional Stairways
Ecoglo® designed the M4.10-E30 profile for demanding tiled stair environments where pedestrian traffic, abrasion, cleaning and long-term stair-edge visibility are important.
- Raised ridges help protect the photoluminescent strips from abrasive wear.
- The ridged photoluminescent surface contributes additional slip resistance while remaining cleanable.
- Hard-wearing yellow silicon-carbide non-slip material is integrally bonded to the aluminum substrate.
- The anodized finish helps resist corrosion and abrasive wear.
- Manufacturer information references accelerated UV and weathering testing.
- Ecoglo® reports less than visually detectable performance loss following 6,000 hours of accelerated UV exposure.
- The aluminum-based profile is recyclable.
- No electrical energy is required at the stair nosing itself.
How Ecoglo® M4151.10 Can Help Reduce Avoidable Inspection Delays
On large commercial, institutional and government projects, incorrect stair-nosing selection, incompatible tile profiles, missing documentation or installation that differs from approved project documents can contribute to RFIs, deficiencies, rework and delayed close-out.
Ecoglo® M4151.10 provides a traceable manufacturer → series → model → technical data → approved detail → installation path that can simplify product verification.
1 Specify the Exact Yellow Model
Identify the product as Ecoglo® M4151.10 Yellow, M4.10-E30 Series rather than only specifying “photoluminescent stair nosing.”
2 Verify Tile Thickness
Confirm finished tile thickness falls within the M4.10 manufacturer's published range of approximately 5 mm to 8.5 mm.
3 Include Manufacturer Documentation
Submit the M4.10-E30 technical data before installation so the architect, consultant and contractor can review the exact model, dimensions, materials and published listing information.
4 Coordinate Egress Requirements Early
Where luminous egress path markings are required, coordinate the M4151.10 with the architect, code consultant and applicable reviewing authority before the tiled stair installation is completed.
5 Match the Approved Stair Detail
Confirm profile orientation, tile interface, yellow insert placement, photoluminescent edge position and installation method against approved project documents.
6 Retain Documentation for Final Review
Keep the approved product submittal, M4151.10 model number and manufacturer documentation available so the installed product can be readily identified during inspection and project close-out.
M4151.10 Yellow Inspection-Readiness Checklist
- Manufacturer identified as Ecoglo®
- Exact model identified as M4151.10
- M4.10-E30 Series identified on submittal
- Yellow anti-slip configuration confirmed
- Finished tile thickness verified within 5–8.5 mm range
- Manufacturer M4.10-E30 technical data sheet included
- Architectural stair detail reviewed
- Applicable listing documentation reviewed
- Photoluminescent charging illumination addressed where required
- Installation method confirmed before field installation
- Stair-edge position matches approved project documents
- Required marking placement remains consistent
- Applicable building and fire requirements reviewed
- Reviewing-authority requirements addressed before final inspection
M4151.10 Yellow for U.S. Commercial, Egress & Government Projects
Ecoglo® M4151.10 is designed for U.S. tiled-stair projects where architects, general contractors, government contractors and facility owners require photoluminescent stair-edge visibility together with a high-visibility yellow anti-slip surface.
For U.S. Architects & Specifiers
- Specify Ecoglo® M4151.10 by exact model number
- Identify Yellow as the specified anti-slip color
- Confirm M4.10 compatibility with tile thickness
- Include current manufacturer technical documentation
- Review applicable luminous egress requirements
- Coordinate stair-edge placement before construction
For U.S. General & Government Contractors
- Confirm contract and approved-product requirements
- Verify M4151.10 Yellow before procurement
- Coordinate quantities and 8-ft lengths
- Submit manufacturer documentation before installation
- Retain approved documentation for inspection
- Resolve AHJ questions before close-out
U.S. Luminous Egress Path Marking Considerations
For U.S. projects, architects, code consultants and contractors should confirm the locally adopted building and fire codes and determine whether luminous egress path marking requirements apply to the building.
Important: Applicability depends on occupancy, building height, locally adopted code, amendments and project-specific conditions. Final acceptance remains with the Authority Having Jurisdiction.
High-Visibility M4151.10 for Large U.S. Projects
- Federal government facilities
- State and municipal buildings
- Emergency egress stairs
- Courthouses and public-safety facilities
- Airports and transportation terminals
- Rail and transit stations
- Hospitals and healthcare facilities
- Universities, colleges and schools
- High-rise commercial buildings
- Office towers
- Hotels and hospitality projects
- Stadiums and arenas
- Public-assembly facilities
- Institutional buildings
- Public infrastructure projects
M4151.10 Yellow for Canadian Commercial, Egress & Government Projects
Ecoglo® M4151.10 can be considered for Canadian tiled-stair projects requiring photoluminescent stair-edge visibility together with a high-visibility yellow anti-slip surface. Ecoglo® M4.10-E30 technical documentation identifies the series as ULC 572 listed.
Applicable Canadian requirements depend on the province, territory, municipality, project specification and reviewing authority.
For Canadian Architects & Specifiers
- Specify Ecoglo® M4151.10 by exact model number
- Identify Yellow as the specified anti-slip color
- Confirm M4.10 compatibility with the specified tile
- Include current manufacturer technical documentation
- Review applicable provincial or territorial requirements
- Resolve stair-edge details before tender or construction
For Canadian General & Government Contractors
- Confirm tender and approved-product requirements
- Verify M4151.10 Yellow before procurement
- Coordinate quantities and 8-ft lengths
- Submit technical documentation before installation
- Retain applicable ULC documentation
- Resolve reviewing-authority questions before close-out
Canadian Building Code & Inspection Considerations
Canadian building regulations are adopted and enforced through provincial, territorial and other applicable authorities. Architects, consultants and contractors should verify requirements for the actual project location.
High-Visibility M4151.10 for Large Canadian Projects
- Government of Canada facilities
- Provincial government buildings
- Municipal buildings
- Emergency egress stairs
- Courthouses and public-safety facilities
- Airports and transportation terminals
- Rail and transit stations
- Hospitals and healthcare facilities
- Universities, colleges and schools
- High-rise commercial buildings
- Office towers
- Hotels and hospitality projects
- Stadiums and arenas
- Institutional facilities
- Public infrastructure projects
Architect & Specification Support
Specifying M4151.10 by exact model number helps coordinate tile thickness, stair geometry, yellow contrast, anti-slip surface, photoluminescent marking requirements and architectural finish before material reaches the jobsite.
Manufacturer: Ecoglo®
Product: M4151.10 Yellow Photoluminescent Tile Stair Nosing, M4.10-E30 Series.
Application: Tiled stair installations using finished tile approximately 3/16"–11/32" (5–8.5 mm) thick.
Color: Yellow anti-slip surface for strong visual stair-edge contrast.
Material: Anodized-aluminum tile stair-nosing profile incorporating photoluminescent stair-edge material and integrally bonded yellow silicon-carbide non-slip material.
Standard Finish: Clear anodized aluminum.
Length: 8 ft.
Listing: Manufacturer identifies the M4.10-E30 Series as UL 1994 and ULC 572 listed. Submit current manufacturer documentation applicable to the project.
Installation: Install according to current Ecoglo® manufacturer instructions, approved project documents and applicable requirements.
Submittals: Provide current product data, applicable listing documentation, architectural details and installation information required by the contract documents.
Specifier Note: This suggested language should be reviewed and edited by the project architect or specification consultant for the specific application and jurisdiction.
Compare Ecoglo® M4.10-E30 Tile Nosing Colors
Each M4.10-E30 anti-slip color has an individual product listing so architects, contractors and procurement teams can identify the exact model required.
M4171.10 Black
M4.10-E30 photoluminescent tile stair nosing with black silicon-carbide anti-slip insert.
View M4171.10 Black →
M4161.10 Gray
M4.10-E30 photoluminescent tile stair nosing with gray silicon-carbide anti-slip insert.
View M4161.10 Gray →
M4151.10 Yellow
High-visibility yellow silicon-carbide anti-slip insert with Ecoglo® photoluminescent stair-edge marking.
Currently ViewingFrequently Asked Questions About Ecoglo® M4151.10 Yellow
What is Ecoglo® M4151.10?
Ecoglo® M4151.10 is the yellow anti-slip model in the M4.10-E30 photoluminescent tile stair-nosing series. It combines an anodized-aluminum tile profile, photoluminescent stair-edge material and yellow silicon-carbide anti-slip material.
Why choose the yellow M4151.10 model?
The yellow anti-slip surface provides conspicuous visual stair-edge contrast under normal illumination, while the photoluminescent material helps identify the stair edge when normal lighting is reduced.
Is M4151.10 designed for egress stairs?
M4151.10 can be considered for tiled egress stairs where the project specification requires an appropriate photoluminescent stair-edge system. Applicable code and project requirements must be verified for the specific building and jurisdiction.
What tile thickness fits M4151.10?
The M4.10 profile is designed for tile approximately 3/16" to 11/32" thick, equivalent to approximately 5 mm to 8.5 mm.
What length is M4151.10?
The M4.10-E30 tile stair-nosing profile is supplied in 8-foot lengths.
Is M4151.10 slip resistant?
Yes. M4151.10 incorporates hard-wearing yellow silicon-carbide anti-slip material integrally bonded to the aluminum substrate.
Does M4151.10 require electricity?
No electrical connection is required at the stair nosing itself. The photoluminescent material charges from suitable ambient illumination and becomes visible when normal lighting is reduced.
Is the M4.10-E30 Series UL 1994 and ULC 572 listed?
Ecoglo® manufacturer technical documentation identifies the M4.10-E30 Series as UL 1994 and ULC 572 listed. Current manufacturer documentation should be supplied where listing verification is required.
Can M4151.10 help reduce inspection delays?
M4151.10 can help reduce avoidable submittal and inspection delays when the exact model is selected early, tile thickness is confirmed, manufacturer documentation is submitted before installation and the finished work matches approved project documents. Final acceptance remains with the applicable reviewing authority.
Does the IBC address photoluminescent stair-edge markings?
Yes. Section 1025 of the 2024 International Building Code addresses luminous egress path markings in specified high-rise occupancies, including applicable stair-step markings.
Is M4151.10 suitable for U.S. government projects?
M4151.10 can be considered for U.S. government and institutional projects where an appropriate photoluminescent tile stair nosing is specified. Contract, listing and jurisdictional requirements should be verified before procurement.
Is M4151.10 suitable for Canadian government projects?
M4151.10 can be considered for Canadian federal, provincial, municipal and institutional projects where an appropriate photoluminescent tile stair nosing is specified. Tender, specification and jurisdictional requirements should be verified before procurement.
Is the M4.10-E30 Series ULC listed in Canada?
Ecoglo® M4.10-E30 manufacturer technical documentation identifies the series as ULC 572 listed. Current documentation should be supplied where listing verification is required.
What other M4.10-E30 colors are available?
Other M4.10-E30 models include M4171.10 Black and M4161.10 Gray .
Specifying M4151.10 Yellow for a U.S. Egress, Government or Commercial Project?
Confirm tile thickness, stair detail, required quantity, applicable luminous egress requirements and project specifications before releasing material for construction.
Specifying M4151.10 Yellow for a Canadian Egress, Government or Commercial Project?
Confirm tile thickness, stair detail, required quantity, applicable provincial or territorial requirements and project specifications before releasing material for construction.
