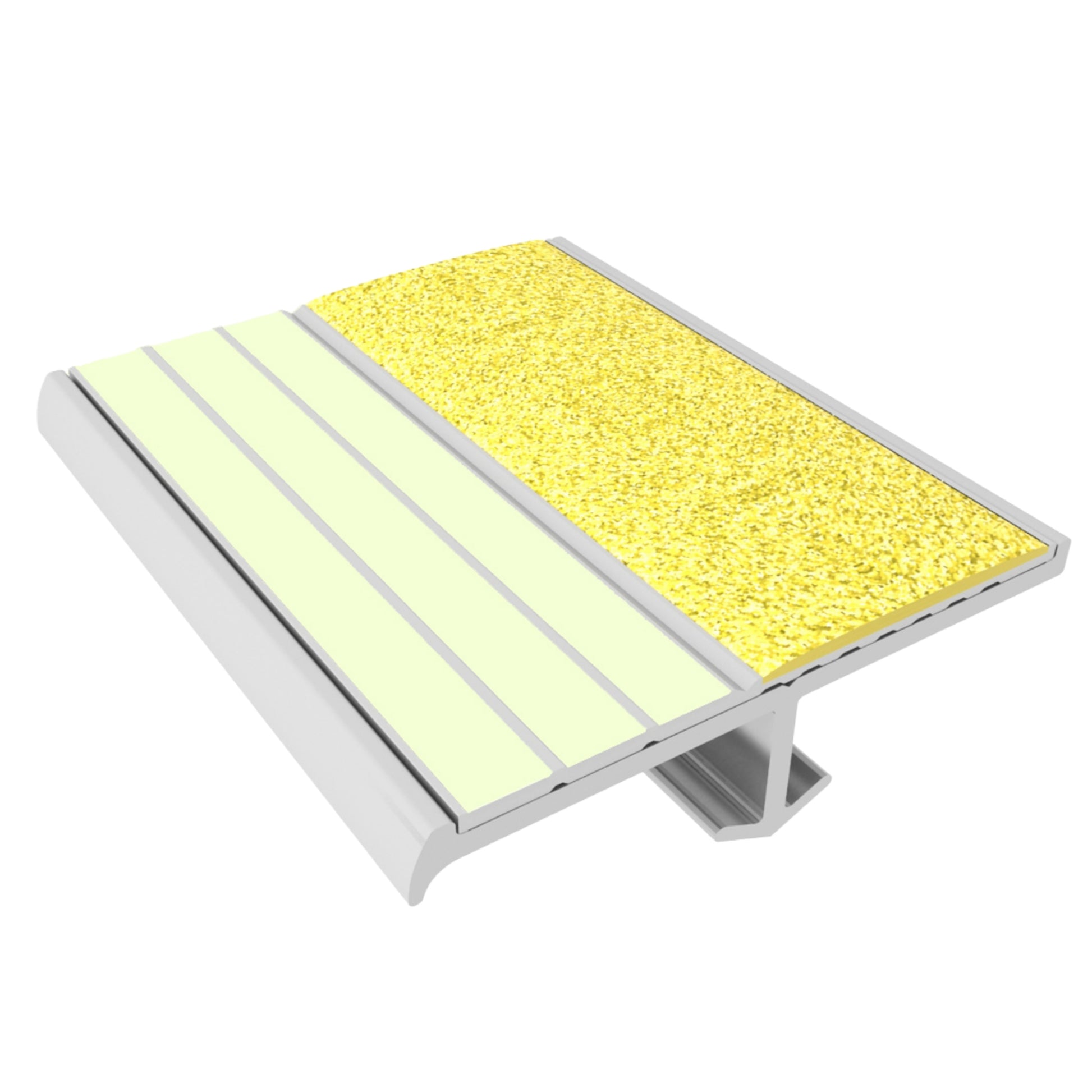

Ecoglo® S4051 Yellow Luminescent Cast In Place Stair Nosing | S4-E30
Ecoglo® S4051 is the yellow anti-slip model in the S4-E30 photoluminescent cast-in-place stair-nosing series. Designed for new concrete stair construction, the profile installs directly into wet concrete to create a durable, flush stair edge combining photoluminescent visibility with hard-wearing silicon-carbide slip resistance.
Photoluminescent Cast-In-Place Stair Nosing for Concrete Stairs
Ecoglo® S4051 is engineered for concrete stair projects where architects, general contractors, concrete contractors, estimators and facility owners require a permanent stair-edge solution combining visual contrast, slip resistance and photoluminescent visibility.
Unlike surface-applied tapes or retrofit stair-nosings, the S4-E30 profile is installed directly into wet concrete during construction. This allows the stair nosing to become integrated with the concrete stair and helps create a smooth, flush transition at the leading edge.
In normal lighting, the contrast between the yellow anti-slip surface and the photoluminescent strips helps define the edge of each step. When normal lighting is reduced or lost, the photoluminescent strips continue to provide visible step-edge definition without requiring electrical power at the stair nosing.
Cast Directly Into Concrete
Designed for installation into wet concrete on new concrete stairs, concrete-filled steel-pan stairs and precast concrete stair systems.
Yellow Silicon-Carbide Anti-Slip
Hard-wearing yellow silicon-carbide non-slip material is integrally bonded to the aluminum substrate to provide durable traction and enhanced high-visibility stair-edge contrast.
Passive Emergency Visibility
Ecoglo® photoluminescent technology helps maintain visible step-edge definition when normal lighting conditions are reduced.
Ecoglo® S4051 / S4-E30 Technical Specifications
Model-specific technical information helps architects, estimators, concrete contractors, specification consultants and project managers accurately identify the product during design, tendering, submittals, procurement and inspection.
| Specification | Ecoglo® S4051 Yellow |
|---|---|
| Manufacturer | Ecoglo® |
| Model | S4051 |
| Series | S4-E30 Photoluminescent Cast-In-Place Stair Nosing |
| Anti-Slip Color | Yellow |
| Application | Concrete stairs, concrete-filled steel-pan stairs and precast concrete stairs |
| Installation Method | Installed directly into wet concrete |
| Overall Profile Width | Approx. 2.2" / 56.8 mm |
| Main Top Surface | Approx. 2.0" / 51.0 mm |
| Overall Profile Depth | Approx. 0.8" / 19.7 mm |
| Vertical Anchor Depth | Approx. 0.6" / 15.9 mm |
| Anchor Foot Width | Approx. 0.6" / 14.7 mm |
| Standard Lengths | 8 ft and 10 ft |
| Cut-to-Length Availability | Available in cut-to-length sizes with manufacturer tolerance of approximately ±1/8" |
| Weight | Approx. 0.491 lb/ft |
| Aluminum | 6063-T5 aluminum |
| Aluminum Finish | Mill-finish aluminum with clear acrylic lacquer finish to help prevent corrosion |
| Anti-Slip Material | Hard-wearing silicon-carbide non-slip material integrally bonded to the aluminum substrate |
| Photoluminescent Configuration | Three ridged photoluminescent strips positioned along the stair-edge side of the profile |
| Insert Supply | Inserts may be supplied attached or unattached |
| Unattached Insert Installation | Installed later in construction using premium polyurethane adhesive |
| Construction Protection | Clear protective tape wraps the product during installation to help keep the nosing clean and protected |
| Indoor / Outdoor | Suitable for indoor and outdoor applications |
| Manufacturer Listing | UL 1994 and ULC 572 listed |
| Country of Manufacture | Made in the USA |
Ecoglo® S4-E30 Cast-In-Place Stair Nosing Dimensions
Review the S4-E30 profile dimensions before ordering, preparing architectural stair details or coordinating concrete work. The profile is approximately 2.2 inches wide with a 2.0-inch usable top surface.
Download the Ecoglo® S4-E30 Technical Data Sheet
Architects, specification consultants, estimators, general contractors and government contractors can use the manufacturer technical data sheet for product review, specifications, project submittals and close-out documentation.
Engineered for High-Traffic Concrete Stairways
Ecoglo® designed the S4-E30 cast-in-place profile for demanding commercial and institutional environments where long-term stair-edge visibility, traction and durability are important.
- Raised ridges help protect the photoluminescent strips from abrasive wear.
- The ridged photoluminescent surface also contributes additional slip resistance.
- Hard-wearing silicon-carbide non-slip material is integrally bonded to the aluminum substrate.
- Cast-in-place installation creates a smooth transition between the nosing and surrounding concrete.
- 6063-T5 mill-finish aluminum is protected with a clear acrylic lacquer finish.
- The profile is designed for concrete stairs, concrete-filled steel-pan stairs and precast stairs.
- Ecoglo® reports accelerated UV and weathering testing for indoor and outdoor applications.
- Manufacturer testing reports performance loss below visually detectable levels following 6,000 hours of accelerated UV exposure.
- Aluminum-based construction is recyclable.
- Photoluminescent operation requires zero electrical energy at the stair nosing.
Cast-In-Place Installation for New Concrete Stairs
S4051 is intended to be incorporated into the concrete stair during construction rather than installed as a surface-mounted retrofit after the concrete has cured.
1. Coordinate Before the Pour
Confirm the architectural stair detail, finished nosing location and required lengths before concrete placement begins.
2. Install Into Wet Concrete
Position the S4-E30 profile in accordance with approved project documents and current manufacturer installation guidance.
3. Protect During Construction
Ecoglo® supplies protective tape around the product to help keep the nosing clean during installation and construction.
How Ecoglo® S4051 Can Help Reduce Avoidable Project Delays
On large commercial, government and institutional projects, concrete stair-edge details should be resolved before the concrete is poured. Incorrect product selection, missing documentation or uncoordinated stair details can create RFIs, rework and avoidable project delays.
Identifying the exact manufacturer → series → model → technical data → approved detail → installation provides a clear documentation path from specification through final construction.
1 Specify the Exact Model
Identify the product as Ecoglo® S4051 Yellow, S4-E30 Series rather than using only a generic description such as “photoluminescent concrete stair nosing.”
2 Confirm the Concrete Stair Detail
Review the architectural stair detail and confirm that the S4-E30 cast-in-place profile has been coordinated with concrete stair geometry before installation.
3 Include the Manufacturer Data Sheet
Include the S4-E30 technical data sheet with project submittals so dimensions, materials, installation method and listed product information can be reviewed.
4 Coordinate Before Concrete Placement
Because S4051 installs into wet concrete, the nosing location and elevation should be coordinated with the concrete contractor before and during the pour.
5 Protect the Product During Construction
Retain the manufacturer's protective covering as appropriate during construction to help prevent contamination and damage.
6 Keep Documentation for Final Review
Retain approved product submittals, model numbers, technical documentation and installation records for consultant and inspection review.
S4051 Project & Inspection-Readiness Checklist
- Manufacturer identified as Ecoglo®
- Exact model identified as S4051
- S4-E30 Series identified on submittal documents
- Yellow anti-slip configuration confirmed
- Concrete stair construction reviewed
- Cast-in-place installation method confirmed
- Architectural stair-edge detail reviewed before concrete placement
- S4-E30 manufacturer technical data sheet included
- Required 8-ft, 10-ft or cut-to-length quantities coordinated
- Applicable listing documentation reviewed
- Photoluminescent charging illumination addressed where required
- Protective construction covering retained as appropriate
- Insert installation method confirmed
- Installed nosing position matches approved project documents
- Locally adopted building and fire-code requirements reviewed
- AHJ-specific requirements addressed before final inspection
Building, Fire & Life-Safety References
Ecoglo® identifies the S4-E30 series for luminous-egress applications and references multiple building, fire and life-safety standards in its technical documentation. Applicability must be confirmed for each individual project.
Code Note: Code applicability depends on building type, occupancy, jurisdiction, locally adopted code edition and project conditions. Architects, code consultants, contractors and owners should confirm requirements with the applicable Authority Having Jurisdiction.
Performance Characteristics
Slip Resistance
The integrated silicon-carbide anti-slip surface and ridged photoluminescent strips are designed to provide durable traction in demanding pedestrian environments.
UV & Weather Resistance
Ecoglo® reports accelerated UV and weathering testing supporting use in both indoor and outdoor environments.
Abrasion Resistance
Raised luminous ridges and hard-wearing silicon-carbide construction are engineered for high pedestrian traffic and long service life.
No Electrical Power
Photoluminescent technology requires no electrical connection or battery at the stair nosing.
Non-Radioactive & Non-Toxic
Ecoglo® identifies its photoluminescent product as non-radioactive and non-toxic.
Recyclable Aluminum
The aluminum-based profile is recyclable and can contribute to project sustainability objectives.
Designed for Large Commercial, Institutional & Government Projects
Ecoglo® S4051 is particularly suited to projects requiring a repeatable, specification-ready cast-in-place stair-edge solution across multiple concrete stairways or construction phases.
- Federal government buildings
- State and provincial government facilities
- Municipal and public buildings
- Courthouses and public-safety facilities
- Airports and transportation terminals
- Rail and transit stations
- Parking garages and parking structures
- Hospitals and healthcare facilities
- Universities, colleges and schools
- High-rise commercial buildings
- Office towers and corporate campuses
- Hotels and hospitality developments
- Stadiums and arenas
- Convention and public-assembly facilities
- Institutional facilities
- Large commercial developments
- Public infrastructure projects
Architect & Specification Support
Specifying the exact stair-nosing model during design development helps coordinate concrete geometry, anti-slip color, luminous marking requirements, lengths and installation before concrete construction begins.
Manufacturer: Ecoglo®
Product: S4051 Yellow Photoluminescent Cast-In-Place Stair Nosing, S4-E30 Series.
Application: New concrete stairs, concrete-filled steel-pan stairs and precast concrete stairs.
Installation: Cast directly into wet concrete at the stair leading edge.
Material: 6063-T5 aluminum profile with clear acrylic lacquer finish, Ecoglo® photoluminescent step-edge material and integrally bonded yellow silicon-carbide anti-slip material.
Overall Width: Approximately 2.2 inches / 56.8 mm.
Standard Lengths: 8 ft and 10 ft. Cut-to-length sizes available subject to manufacturer tolerance.
Color: S4051 Yellow anti-slip configuration.
Listing: Manufacturer identifies the S4-E30 Series as UL 1994 and ULC 572 listed.
Installation: Install in accordance with current Ecoglo® instructions, approved project documents and applicable requirements.
Submittals: Provide current product data, listing documentation, architectural details and installation information required by the contract documents.
Specifier Note: This suggested basis-of-design language should be reviewed and edited by the project architect or specification consultant for the specific project and jurisdiction.
Compare Ecoglo® S4-E30 Cast-In-Place Stair Nosing Colors
The Ecoglo® S4-E30 photoluminescent cast-in-place stair-nosing series is available with Black, Gray and Yellow anti-slip configurations. This allows architects, contractors and specification teams to coordinate stair-edge contrast with project requirements.

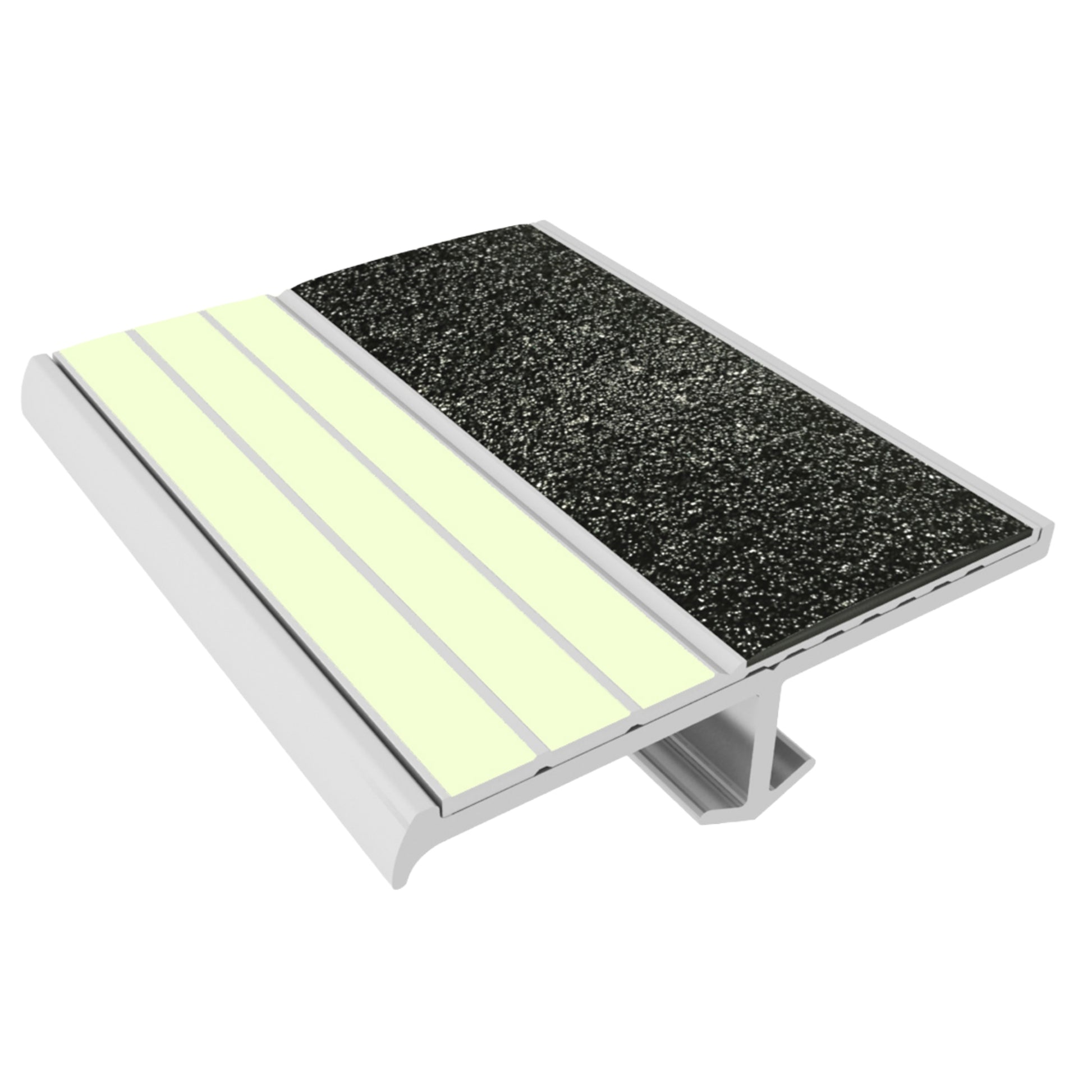

S4071 Black
Black silicon-carbide anti-slip material combined with three Ecoglo® photoluminescent step-edge strips. A versatile high-contrast configuration for commercial, institutional and government concrete stair projects.
S4061 Gray
Gray silicon-carbide anti-slip material combined with three Ecoglo® photoluminescent step-edge strips. Designed for cast-in-place installation in new concrete stair construction.
S4051 Yellow
High-visibility yellow silicon-carbide anti-slip configuration with three Ecoglo® photoluminescent step-edge strips for projects requiring enhanced visual stair-edge contrast.
Frequently Asked Questions About Ecoglo® S4051 / S4-E30
What is Ecoglo® S4051?
Ecoglo® S4051 is the yellow anti-slip model in the S4-E30 photoluminescent cast-in-place stair-nosing series. It is designed for installation directly into wet concrete.
What type of stairs can S4051 be used on?
The S4-E30 series is designed for concrete stairs, concrete-filled steel-pan stairs and precast concrete stairs.
What are the dimensions of S4-E30?
The S4-E30 profile is approximately 2.2 inches (56.8 mm) wide with a 2.0-inch (51.0 mm) top surface and approximately 0.8 inches (19.7 mm) overall depth.
What lengths are available?
Standard S4-E30 lengths are 8 ft and 10 ft. Cut-to-length sizes are also available subject to manufacturer tolerance.
Is Ecoglo® S4051 slip resistant?
Yes. S4051 incorporates hard-wearing yellow silicon-carbide non-slip material integrally bonded to the aluminum substrate.
Is S4051 installed before or after the concrete is poured?
S4051 is a cast-in-place stair nosing designed to be installed directly into wet concrete during construction. Product location should therefore be coordinated before the concrete pour.
Can the anti-slip inserts be installed later?
Yes. Ecoglo® states that inserts may be supplied attached or unattached. Unattached inserts can be installed later in construction using premium polyurethane adhesive.
Can S4-E30 be used outdoors?
Yes. Ecoglo® identifies the S4-E30 series for indoor and outdoor use and reports accelerated UV and weathering testing.
Does S4051 require electricity?
No electrical connection is required at the stair nosing. The photoluminescent material stores energy from suitable ambient illumination and releases visible light when normal lighting is reduced.
Is the S4-E30 Series UL listed?
Yes. Ecoglo® identifies the S4-E30 photoluminescent cast-in-place stair-nosing series as UL 1994 and ULC 572 listed.
What other S4-E30 colors are available?
The S4-E30 series includes S4071 Black, S4061 Gray and S4051 Yellow.
Is S4051 suitable for government and large commercial projects?
S4051 can be specified for commercial, institutional, transportation, government and other large concrete stair projects where the product is appropriate to the project specifications and applicable requirements.
Specifying S4051 for a Government or Large Commercial Project?
Confirm the architectural stair detail, concrete construction, required quantities, lengths and project specification before releasing material. Because S4051 is cast directly into wet concrete, early coordination can help prevent incorrect selections, RFIs, field changes and avoidable rework.
