Ecoglo® S10-N30 Non-Slip Cast-in-Place Stair Nosing – 2.1" Wide Concrete Stair Safety Nosing in Black, Grey or Yellow
S10-N30 Non-Slip Cast-In-Place Stair Nosing
Add long-lasting anti-slip protection, step-edge color contrast, and a clean finished edge to concrete stairs during construction.
Stair Safety Benefits
- ✔ Cast-in-place stair nosing for concrete stair construction.
- ✔ Provides excellent step-edge color contrast.
- ✔ Helps reduce slips on concrete stairways.
- ✔ Adds long-lasting anti-slip protection and a professional finished edge.

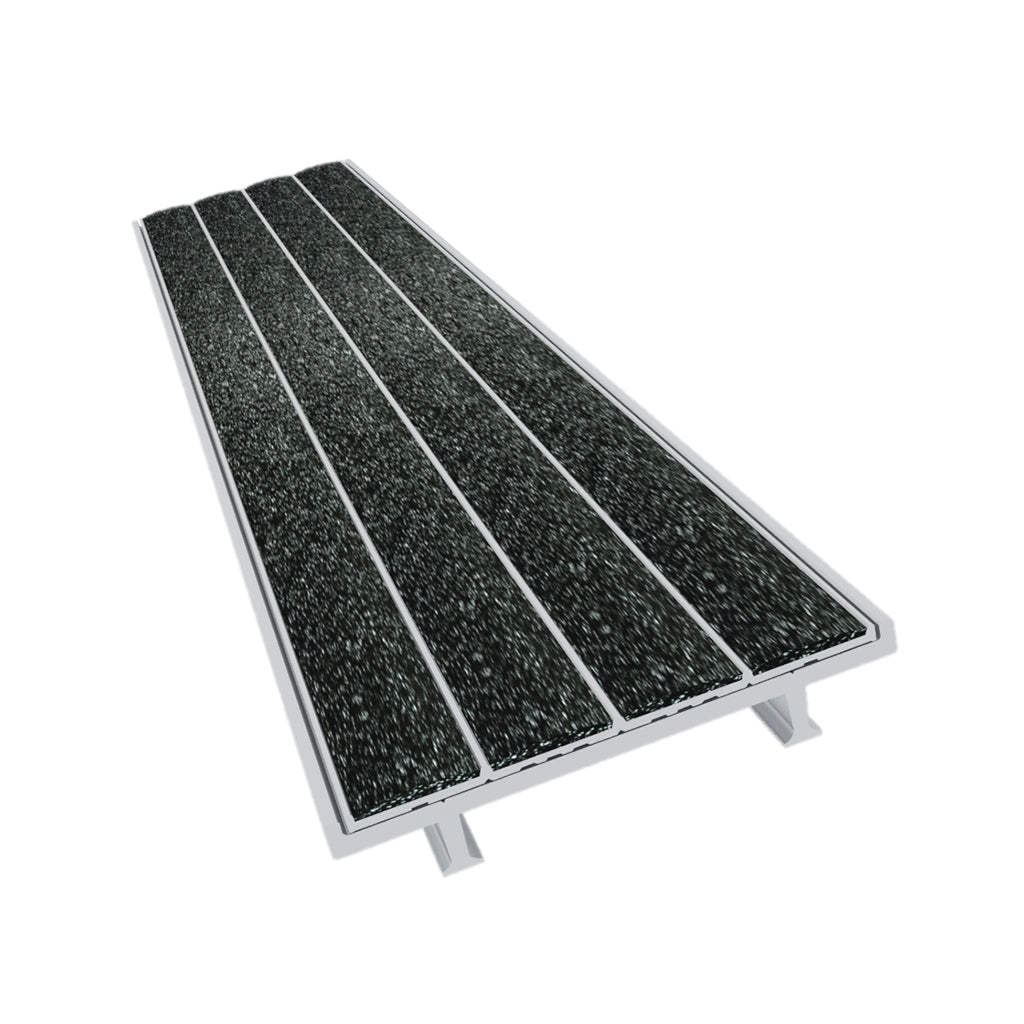

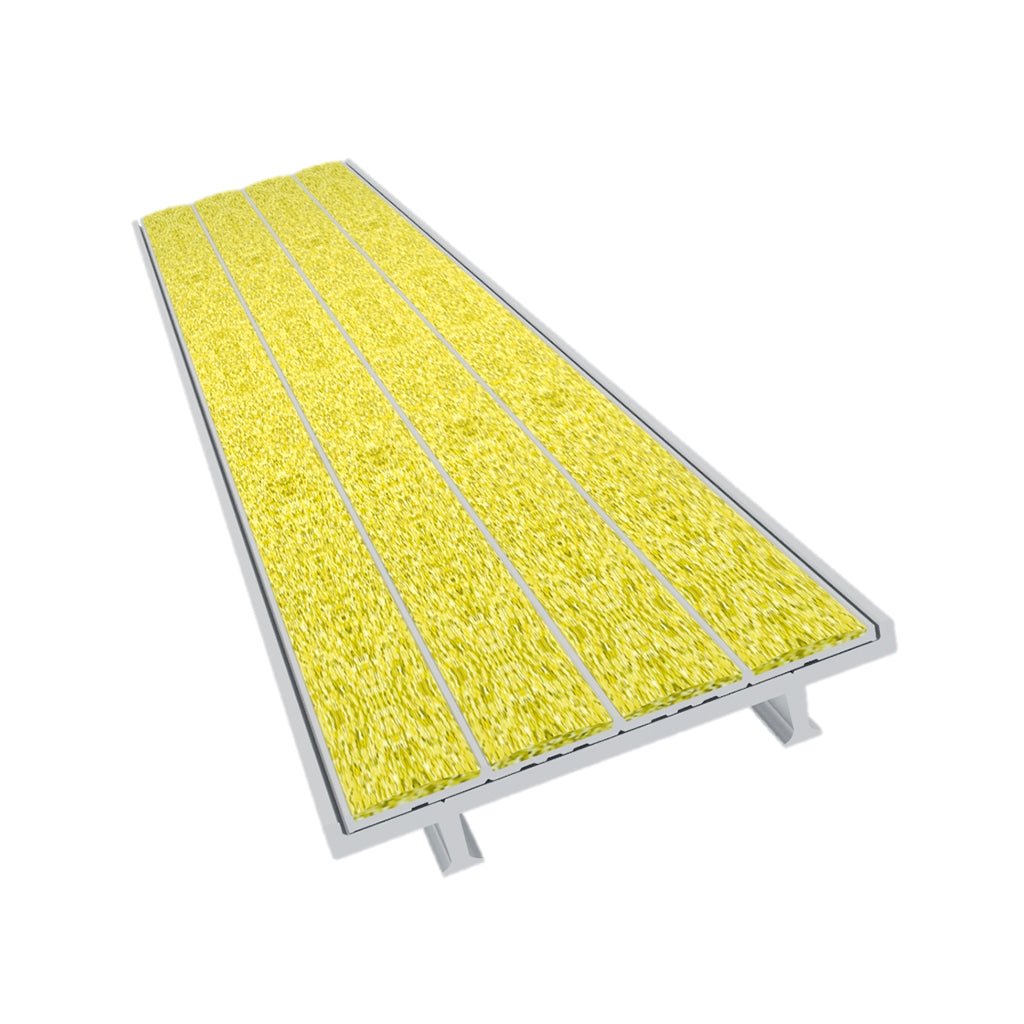

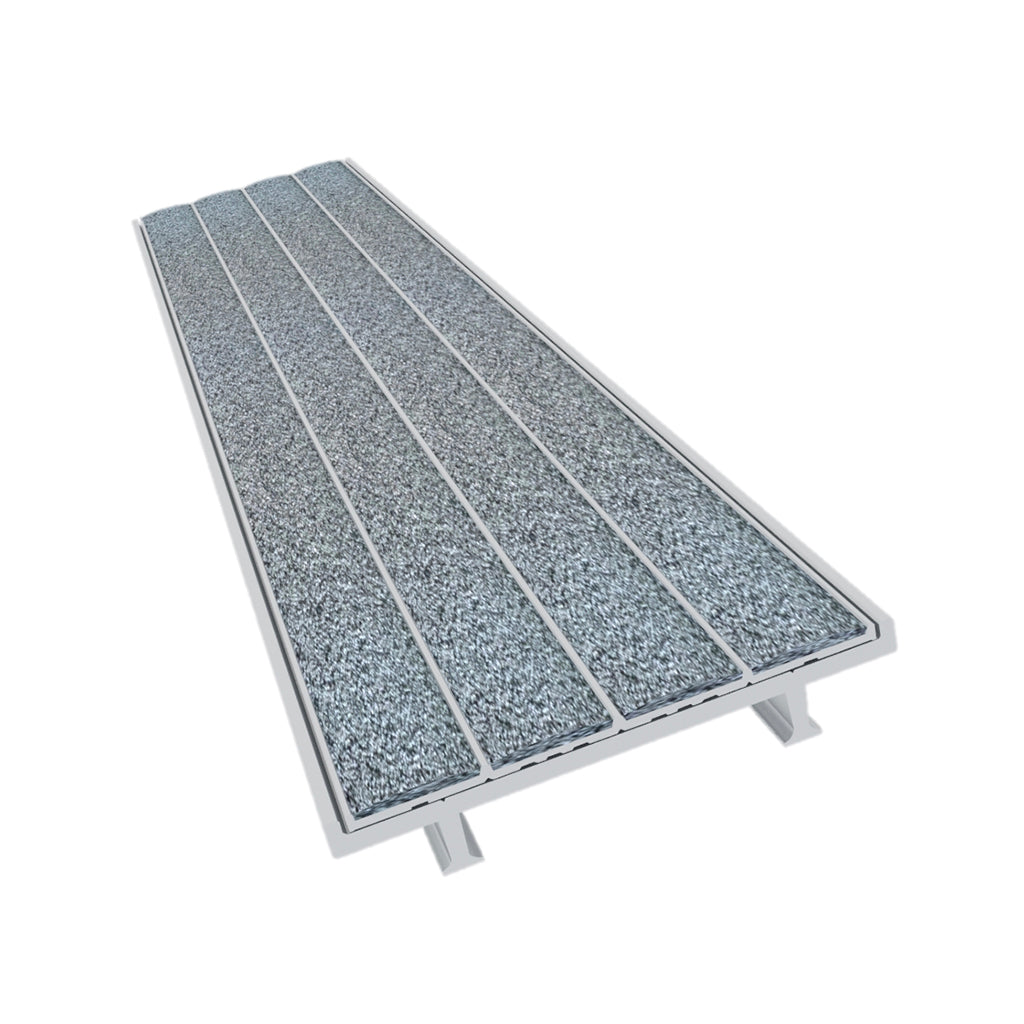

- ✔ Available with black, grey, or yellow non-slip inserts.
Built for Durability
- ✔ Hard-wearing silicon carbide non-slip material bonded to aluminum.
- ✔ Built to handle thousands of foot passes with no visible wear.
- ✔ 6063-T5 mill finish aluminum construction.
- ✔ Acrylic lacquer finish helps prevent corrosion.
- ✔ Designed for long-term use in demanding stair applications.
Concrete Installation
- ✔ Designed to install directly into wet concrete.
- ✔ Used on concrete stairs, concrete-filled steel pan stairs, and pre-cast concrete stairs.
- ✔ Install ½ inch / 25 mm back from the front of the step.
- ✔ Clear protective tape helps keep the nosing clean during installation.
- ✔ Remove protective tape by cutting along the edges and peeling away.
Sizes & Insert Options
- ✔ Available in standard 8 ft and 10 ft lengths.
- ✔ Cut-to-length sizes available with ± 1/8 inch tolerance.
- ✔ Inserts available attached or unattached.
- ✔ Unattached inserts can be installed later to protect them during construction.
- ✔ Inserts are installed with premium polyurethane adhesive.
- ✔ Weight: 0.328 lbs/ft.
Eco-Friendly
- ✔ LEED points qualified.
- ✔ Aluminum-based product is 100% recyclable with no disposal cost.
- ✔ Approximately 20% recycled aluminum content in Ecoglo secondary billet specification.
- ✔ Recommended low-VOC adhesive may support indoor environmental quality credits.
Tested Performance
- ✔ Tested for UV stability and outdoor durability.
- ✔ Tested for salt spray resistance.
- ✔ Tested for freeze-thaw resistance.
- ✔ Tested to UL 410 slip resistance standards.
- ✔ Tested for abrasion resistance and washability.
- ✔ Tested for flammability.
- ✔ Made in USA.
Ecoglo S10-N30 Cast-In-Place Stair Nosing is engineered for concrete stair construction. It combines a durable aluminum base with a bonded silicon carbide anti-slip insert to provide long-lasting traction, clear step-edge visibility, and a clean architectural finish.
Couldn't load pickup availability
Contractor & Distributor Pricing
Contractors, installers, property managers, and commercial buyers may qualify for special pricing on ComposiGrip™ stair tread covers, anti-slip strips, and safety products.
- Special pricing for qualifying contractors and distributors
- Bulk order support for commercial and residential projects
The S10-N30 Non-Slip Anodized Stair Nosing enhances step-edge visibility with color contrast while providing long-lasting anti-slip protection and a sleek appearance.
- Slip-resistant silicon carbide ridges.
- Meets IBC, IFC, OSHA egress code.
- UL 1994 Certified
- Indoor/outdoor UV-rated aluminum base.
- 5‑Year Warranty
- Manufactured in Canada/USA
Designed for new construction, Ecoglo’s Cast-In Place stair nosings install directly into wet concrete, creating a flush, seamless finish that reduces the risk of slips and trips. These nosings are ideal for concrete stairs, concrete-filled steel pan stairs, and precast concrete stairs.
Built for durability, Ecoglo’s anti-slip nosings feature a UV-resistant polymer that withstands weathering, making them suitable for both indoor and outdoor installations. The hard-wearing, abrasion-resistant surface ensures lasting performance, protecting against scratches and damage.
S10-N30 Non-Slip Cast in Place Stair Nosing Product Information
- Installation: Install in wet concrete, ½” (25mm) back from the front of the step.
- Applications: Suitable for concrete, concrete-filled steel pan, and precast concrete stairs.
- Sizes: Standard lengths of 8ft and 10ft.
- Inserts: Can be attached or unattached (unattached for later installation). Installed with premium polyurethane adhesive.
- Protective Tape: Clear tape keeps product clean during installation. Cut and peel to remove.
- Weight: 0.328 lbs/ft.
- Finish: 6063-T5 aluminum with acrylic lacquer for corrosion resistance.
Specs & Data Sheet
Durability: Silicon carbide non-slip material bonded to aluminum withstands heavy foot traffic without wear.
Step Safety: Color contrast provides slip resistance in all weather conditions.
Indoor/Outdoor Use: Tested for UV exposure, salt spray, freeze-thaw, and washability with excellent results.
Eco-friendly: LEED-qualified, recyclable, and no disposal costs.
GUIDES
-
2024 COMPLIANCE GUIDE
DOWNLOADThis document provides guidance to local building officials, architects, and contractors as to the requirements for
luminous egress path markings in new and existing high-rise buildings, in accordance with the 2024 International Building and Fire codes. -

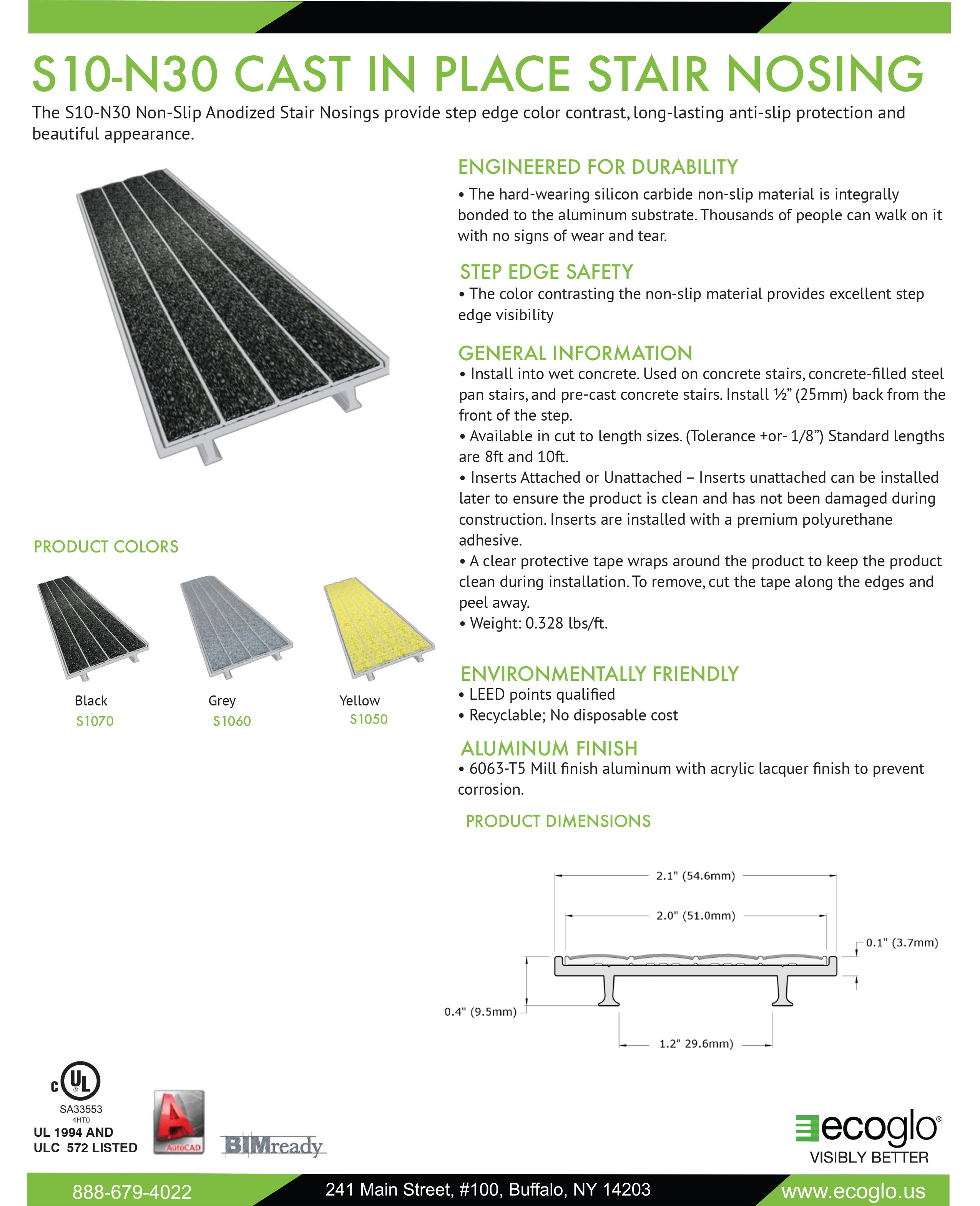

S10-N30 DATA SHEET
DOWNLOADThe S10-N30 Non-Slip Anodized Stair Nosings provide step edge color contrast, long-lasting anti-slip protection and
beautiful appearance.
