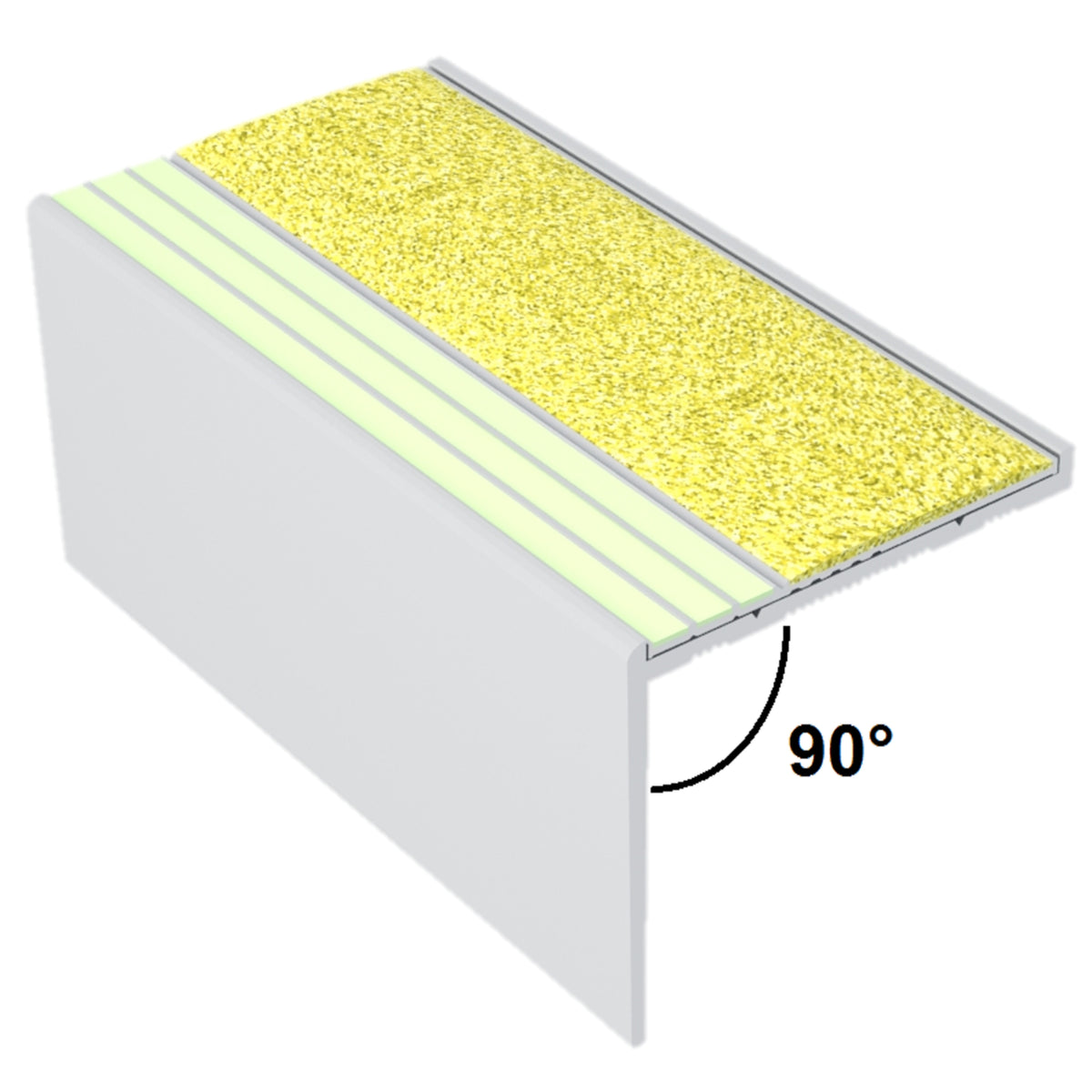

Ecoglo® RF7B151 Yellow Photoluminescent Resilient Flooring Stair Nosing | RF7B-E30
Couldn't load pickup availability
RF7B151 is the Yellow version of the Ecoglo® RF7B-E30 photoluminescent resilient flooring stair nosing. It combines a 90° anodized-aluminum profile, photoluminescent stair-edge marking and a hard-wearing Yellow silicon-carbide anti-slip surface.
Designed for flush integration with resilient flooring, vinyl and other thin flooring materials in commercial, institutional and specification-driven stair projects.
- Photoluminescent stair-edge visibility
- Yellow silicon-carbide anti-slip surface
- 90° resilient-flooring profile
- Flush integration with resilient and vinyl flooring
- Standard 8 FT and 10 FT lengths
- Custom cut-to-length options available
- Pre-drilled countersunk mounting holes
- Manufacturer RF7B-E30 documentation identifies UL 1994 and ULC 572 listing
RF7B151 is the Yellow RF7B-E30 configuration for commercial and architectural stairs finished with resilient flooring, vinyl and other thin flooring materials. The Yellow anti-slip insert provides a more visually prominent daytime stair-edge color than the neutral Black or Gray configurations.
The photoluminescent components absorb energy from suitable ambient lighting and remain visibly luminous after normal lighting is reduced or lost. No electrical connection is required at the stair nosing.
Glowing by Night.
Watch the comparison automatically move from side to side to demonstrate Ecoglo® stair-edge visibility in normal lighting and passive photoluminescent guidance when lighting is reduced.
The comparison images demonstrate Ecoglo® photoluminescent stair-edge visibility. The installed profile shown in the demonstration may differ from the RF7B151 RF7B-E30 profile.
View dimensions, colors, installation information, performance data and technical specifications.
Open Data Sheet →Install the RF7B-E30 profile flush with resilient flooring using adhesive and mechanical fasteners in accordance with current Ecoglo® installation instructions and the approved project detail.
The stair-nosing insert is installed over the mechanical fasteners using the specified polyurethane adhesive.
RF7B uses a 90° profile. RF7C uses an 85° profile. Confirm the actual stair-edge geometry, resilient-flooring assembly and architectural detail before selecting the series.
Compare Resilient Flooring Stair Nosings →Contact ComposiGrip for RF7B151 Yellow custom lengths, commercial quantities, architectural specifications, technical documentation, submittal support or help confirming the correct RF7B or RF7C profile.
Frequently Asked Questions About Ecoglo® RF7B151 Yellow
Product-specific answers about the Ecoglo® RF7B151 Yellow RF7B-E30 photoluminescent resilient-flooring stair nosing. Broader RF7B-E30 series questions are covered on the resilient flooring stair-nosings collection page.
What is Ecoglo® RF7B151 Yellow?
RF7B151 is the Yellow model in the Ecoglo® RF7B-E30 photoluminescent resilient-flooring stair-nosing series. It combines a 90° anodized-aluminum profile, photoluminescent material and a Yellow silicon-carbide anti-slip component.
When should I choose RF7B151 Yellow instead of Black or Gray?
RF7B151 is appropriate when the project specification or architectural design calls for a more visually prominent Yellow stair-edge insert.
Black RF7B171 and Gray RF7B161 provide more neutral alternatives within the same RF7B-E30 profile family.
Is RF7B151 Yellow an anti-slip stair nosing?
Yes. RF7B151 incorporates hard-wearing Yellow silicon-carbide anti-slip material together with Ecoglo® photoluminescent stair-edge marking.
Is RF7B151 Yellow designed for vinyl and resilient flooring?
Yes. RF7B151 belongs to the RF7B-E30 resilient-flooring series and is designed for flush integration with resilient, vinyl and similar thin flooring assemblies.
Confirm the actual stair-edge geometry and finished flooring assembly before ordering.
Is the Yellow insert the same as the aluminum finish?
No. RF7B151 identifies the Yellow anti-slip insert configuration. The aluminum extrusion has a separate anodized-finish selection.
Can RF7B151 Yellow be ordered in custom lengths?
Yes. In addition to standard 8 FT and 10 FT lengths, RF7B-E30 is available cut to length.
For project pricing, provide the required finished lengths, quantities and delivery location.
Does RF7B151 Yellow require electricity to glow?
No electrical connection is required at the stair nosing. The photoluminescent material absorbs energy from suitable ambient illumination and releases visible light when normal lighting is reduced.
What should I specify when ordering RF7B151 Yellow?
Identify Ecoglo® RF7B151, RF7B-E30 series, Yellow insert, required length, aluminum finish and quantity.
For commercial or specification-driven projects, include project location, relevant stair details and required delivery timing when available.
Where can architects obtain RF7B151 technical information?
The RF7B-E30 data sheet and architectural CAD details can be used for dimensions, profile coordination, installation requirements and project submittals.
Need Help Specifying Ecoglo® RF7B151 Yellow?
Contact ComposiGrip for RF7B151 pricing, project quantities, custom lengths, technical documentation, finish selection and specification support.
Contractor & Distributor Pricing
Contractors, installers, property managers, and commercial buyers may qualify for special pricing on ComposiGrip™ stair tread covers, anti-slip strips, and safety products.
- Special pricing for qualifying contractors and distributors
- Bulk order support for commercial and residential projects
RF7B-E30 Photoluminescent Resilient Flooring Stair Nosing FAQs
Answers for architects, flooring contractors, estimators, facility managers and procurement teams evaluating the Ecoglo® RF7B-E30 series for resilient flooring and commercial stair projects.
RF7B171 Black, RF7B161 Gray and RF7B151 Yellow belong to the same RF7B-E30 resilient-flooring stair-nosing series. Select the model according to the required anti-slip color, architectural finish and project specification.
What products are included in the Ecoglo® RF7B-E30 series?
The RF7B-E30 series is available in three primary anti-slip colors: RF7B171 Black, RF7B161 Gray and RF7B151 Yellow.
These models belong to the same RF7B-E30 product family, allowing architects and contractors to select the anti-slip color that best matches the required visual contrast and architectural finish.
How should I choose between Black, Gray and Yellow RF7B-E30 nosings?
Select the anti-slip color according to the required visual contrast, surrounding flooring, architectural finish and project specification.
Black and Gray provide neutral architectural options, while Yellow can provide stronger daytime color contrast where the project design calls for a more visually prominent stair edge.
For specification-driven projects, confirm the required contrast and finish with the architect or design professional.
Does the RF7B-E30 series use a replaceable insert?
Yes. Ecoglo® specifies the RF7B-E30 series with a replaceable insert that is adhesively fixed into the aluminum extrusion.
This separates the aluminum stair-nosing profile from the photoluminescent and non-slip insert component.
For replacement-component requirements, provide the RF7B-E30 model, insert color, required length and existing project information when contacting ComposiGrip.
What aluminum finishes are available for the RF7B-E30 series?
The standard aluminum finish is Clear Anodized Aluminum.
Ecoglo® also identifies Black, Light Bronze and Dark Bronze anodized finishes as optional finishes available at additional cost.
Optional-finish availability, pricing and lead time should be confirmed before material is released for ordering.
Is the RF7B-E30 insert color the same as the aluminum finish?
No. The anti-slip insert color and the aluminum extrusion finish are separate selections.
For example, RF7B171 identifies the Black anti-slip version of the RF7B-E30 series, but the aluminum extrusion can still use the standard Clear Anodized Aluminum finish or another available anodized finish.
Both selections should be identified clearly in project specifications and purchase orders.
Is RF7B-E30 suitable for high-traffic commercial stair projects?
RF7B-E30 is designed as a durable commercial stair-edge system. Ecoglo® describes the silicon-carbide non-slip material as integrally bonded to the aluminum substrate.
The anodized aluminum finish is also intended to provide abrasion resistance and corrosion protection.
Actual service life depends on traffic levels, installation, environmental exposure and ongoing maintenance.
How should the RF7B-E30 series be cleaned and maintained?
Keep the photoluminescent and anti-slip surfaces reasonably free of dirt, coatings and debris that could obscure the stair-edge markings or reduce effective surface performance.
Ecoglo® designs the photoluminescent strips with protective ridges intended to help reduce abrasive wear while still allowing the surface to be cleaned.
For project-specific cleaning chemicals or maintenance procedures, confirm compatibility with current manufacturer guidance.
How does RF7B-E30 perform when exposed to UV and weather?
Ecoglo® reports accelerated UV and weathering testing for its aluminum photoluminescent stair-nosing system and describes the photoluminescent material as highly UV resistant.
For exterior or exposed projects, the architect or contractor should still confirm suitability for the actual environmental conditions, substrate and project specification.
What environmental attributes does Ecoglo® identify for RF7B-E30?
Ecoglo® describes its photoluminescent aluminum stair-nosing products as requiring zero electrical energy at the stair nosing.
The manufacturer also identifies the materials as non-radioactive, non-toxic and recyclable.
Sustainability teams should determine how these attributes apply to the requirements of the specific project or building certification program.
What should be included in an RF7B-E30 architect or contractor submittal?
A project submittal should identify the Ecoglo® RF7B-E30 series, selected model/color, aluminum finish, required lengths and quantities.
Supporting documentation may include the RF7B-E30 data sheet, CAD details, installation information and current listing or compliance documentation required by the specification.
What information should I provide when requesting an RF7B-E30 project quote?
Provide the RF7B-E30 model/color, quantities, required lengths, aluminum finish, project location and required delivery date if known.
For larger commercial or specification-driven projects, drawings, stair details or the relevant specification section can help confirm the requested configuration.
Need Help Selecting or Specifying the RF7B-E30 Series?
ComposiGrip can assist architects, contractors, estimators and procurement teams with RF7B-E30 color selection, optional aluminum finishes, project quantities, technical documentation and specification-driven requirements.
General Information
Install with premium polyurethane adhesive.
- Option for mechanical fasteners.
- Do not use mechanical fasteners when installing outdoors.
- Available in cut to length sizes. (Tolerance +or- 1/8”) Standard lengths are 8ft and 10ft.
- Weight: 0.1 lbs/ft.
Engineered for Durability
- Manufactured using Ecoglo®’s patented process which produces the most durable and highly efficient photoluminescent product available.
- Unique ridges in the photoluminescent strips protect it from most abrasive wear. They provide slip resistance while still allowing the product to be easily cleaned.
- The hard-wearing silicon carbide non-slip material is integrally bonded to the aluminum substrate. Thousands of people can walk on it with no signs of wear and tear.
Superior Step Edge Safety
- The color contrasting the non-slip material with advanced photoluminescent technology provides step edge visibility in all light conditions.
- The unique ridges in the Ecoglo® photoluminescent strips and the integrated anti-slip contrast strips provide all-weather slip resistance.
Installed Durability:
- The rigid aluminum base spreads any applied load over a greater area of installation adhesive. Installation with a premium polyurethane adhesive/sealant is extremely durable, moisture resistant, and works very well on both smooth and textured surfaces.
For Indoor Use and Outdoor Use:
- Tested to accelerated UV/weathering exposure, and proven to be highly resistant to the effects of UV/weathering.
- The loss in performance is less than can be detected by the human eye when subjected to 6000 hours of UV exposure, which is similar to 30 years of outdoor exposure.
- The polymer used in Ecoglo’s patented process is “long chain” which forms a strong UV resistant product when bonding.
Environmentally Friendly Photoluminescent Contrast Strip
- LEED points qualified
- Zero energy consumption
- Non-Radioactive and Non-toxic
- Recyclable; No disposable cost
