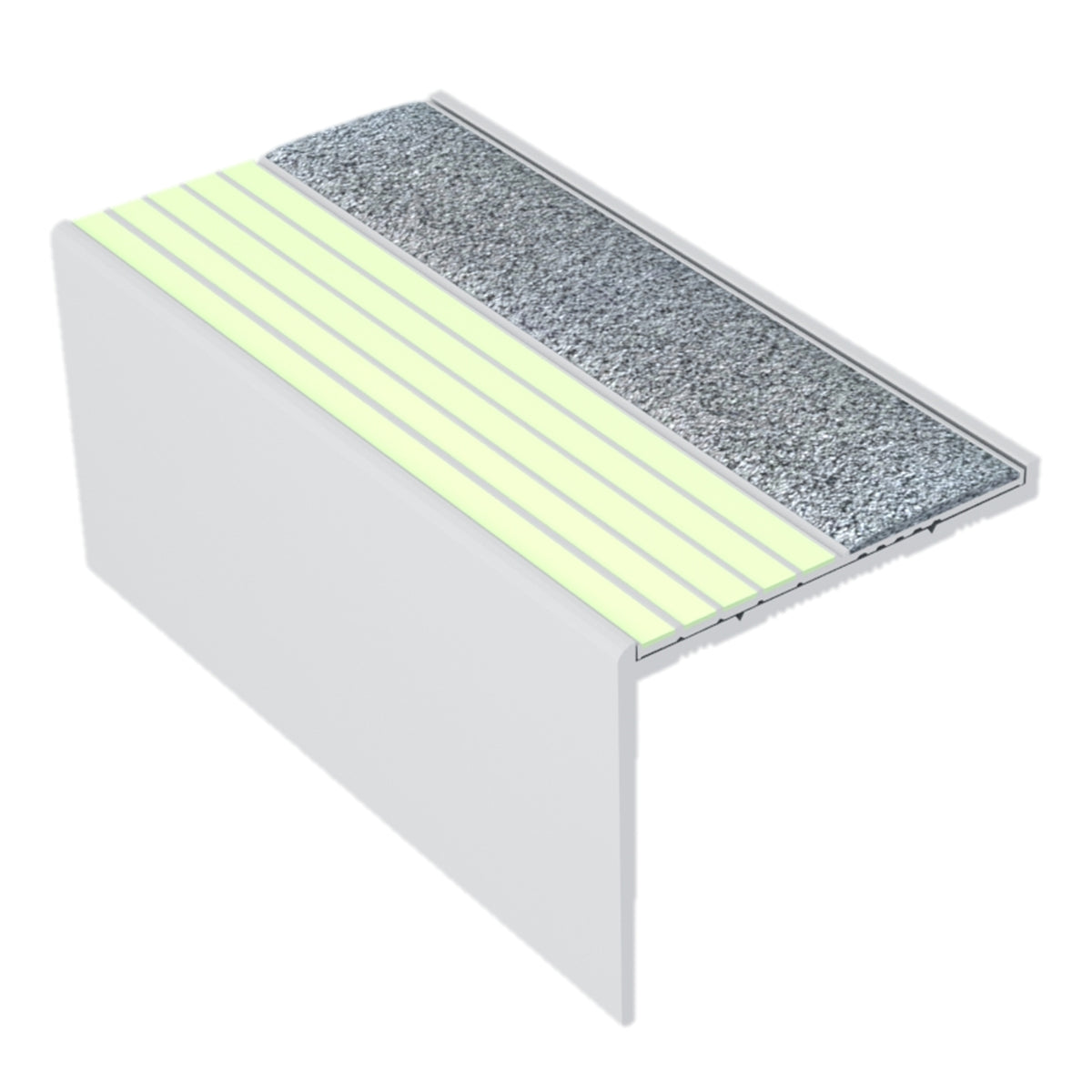

Ecoglo® RFA7B161 Gray Photoluminescent Resilient Flooring Stair Nosing | RF7B-E40
Couldn't load pickup availability
Ecoglo® RFA7B161 is the Gray configuration of the RF7B-E40 Photoluminescent Anodized Aluminum Resilient Flooring Stair Nosing. It uses a 90° aluminum stair-edge profile designed to install flush with resilient flooring.
RF7B-E40 combines photoluminescent stair-edge strips with a hard-wearing Gray silicon-carbide anti-slip component to provide visible stair-edge definition, pedestrian traction and a neutral architectural appearance in commercial stair applications.
- RF7B-E40 photoluminescent resilient-flooring stair nosing
- 90° anodized-aluminum stair-edge profile
- Gray hard-wearing silicon-carbide anti-slip material
- Five photoluminescent strips with integrated non-slip component
- Flush installation with resilient flooring
- Standard 8 FT and 10 FT lengths
- Cut-to-length sizes available
- Pre-drilled countersunk mounting holes
- Stainless-steel fasteners and concrete nylon anchors
- Replaceable insert supplied unattached
- RF7B-E40 manufacturer data sheet identifies UL 1994 and ULC 572 listing
RFA7B161 is the Gray RF7B-E40 configuration for resilient-flooring stair assemblies. The Gray anti-slip component provides a neutral architectural appearance that can coordinate with many commercial vinyl and resilient-flooring palettes while retaining the photoluminescent E40 stair-edge configuration.
Glowing by Night.
The automatic comparison demonstrates Ecoglo® stair-edge visibility under normal lighting and passive photoluminescent visibility when lighting is reduced.
Installed stair photographs demonstrate Ecoglo® photoluminescent technology. The installed profile shown may differ from the RFA7B161 RF7B-E40 resilient-flooring profile.
Review product dimensions, installation information, colors, anodized finishes, performance information and technical specifications.
Open RF7B-E40 Data Sheet →Install the RF7B-E40 nosing flush with resilient flooring using adhesive and mechanical fasteners in accordance with current Ecoglo® installation instructions and the approved project detail.
The aluminum profile is supplied with pre-drilled countersunk holes. Standard hole locations are approximately 2 inches from each end and approximately 12 inches apart.
Stainless-steel fasteners and concrete nylon anchors are supplied. The insert is supplied unattached and installed over the mechanical fasteners using the included polyurethane adhesive.
Clear Anodized Aluminum is the standard RF7B-E40 extrusion finish. Ecoglo® also identifies Black, Light Bronze and Dark Bronze anodized finishes as additional-cost options.
The Gray RFA7B161 anti-slip configuration is separate from the aluminum extrusion finish. The manufacturer describes the anodized aluminum finish as hard, abrasion-resistant and corrosion-resistant, while protective ridges help protect the photoluminescent material from abrasive wear.
Contact ComposiGrip for RF7B-E40 pricing, RFA7B161 Gray custom lengths, commercial quantities, anodized finish options, technical documentation or specification support.
Frequently Asked Questions About Ecoglo® RFA7B161 Gray RF7B-E40
Product-specific answers about the Ecoglo® RFA7B161 Gray RF7B-E40 photoluminescent anodized-aluminum resilient-flooring stair nosing, including flooring compatibility, lengths, installation, anodized finishes and project specifications.
What is Ecoglo® RFA7B161 Gray?
RFA7B161 is the Gray RF7B-E40 photoluminescent resilient-flooring stair nosing. It uses a 90° anodized-aluminum profile designed for flush installation with resilient flooring and incorporates the Gray silicon-carbide anti-slip configuration.
Why choose RFA7B161 Gray instead of Black or Yellow?
Gray provides a neutral architectural stair-edge appearance that can coordinate with many commercial resilient-flooring, vinyl and interior finish palettes.
RFA7B171 Black provides a darker neutral option, while RFA7B151 Yellow provides a more prominent daytime stair-edge color.
What flooring is RFA7B161 Gray designed for?
RF7B-E40 is designed to install flush with resilient flooring. It can be coordinated with vinyl and similar thin flooring assemblies where the RF7B 90° profile matches the stair-edge condition.
Confirm the actual flooring build-up and stair geometry against the project detail before ordering.
Is RFA7B161 Gray an anti-slip stair nosing?
Yes. RFA7B161 combines the RF7B-E40 photoluminescent configuration with a hard-wearing Gray silicon-carbide non-slip component.
What lengths are available for RFA7B161 Gray RF7B-E40?
Standard RF7B-E40 lengths are 8 FT and 10 FT.
Cut-to-length sizes are also available with a manufacturer-published tolerance of approximately ±1/8 inch.
How is RFA7B161 Gray installed?
RF7B-E40 is installed flush with resilient flooring using adhesive and mechanical fasteners. The aluminum profile has pre-drilled countersunk holes and uses stainless-steel fasteners and concrete nylon anchors.
The insert is supplied unattached and installed over the mechanical fasteners using polyurethane adhesive.
Is the Gray RFA7B161 color the same as the aluminum finish?
No. RFA7B161 identifies the Gray anti-slip configuration. The aluminum extrusion finish is selected separately.
Clear Anodized Aluminum is standard. Ecoglo® also identifies Black, Light Bronze and Dark Bronze anodized finishes as additional-cost options.
Does RF7B-E40 require electricity to glow?
The photoluminescent strips use suitable existing ambient illumination and require no electrical connection at the stair nosing.
Can RFA7B161 Gray RF7B-E40 be used indoors and outdoors?
Ecoglo® identifies RF7B-E40 aluminum stair nosings for indoor and outdoor applications and reports accelerated UV and weathering testing.
Final suitability should still be confirmed for the project's actual environmental exposure, flooring assembly and substrate.
Is RF7B-E40 UL 1994 and ULC 572 listed?
The current Ecoglo® RF7B-E40 data sheet identifies RF7B-E40 as UL 1994 and ULC 572 listed. Project teams should verify current manufacturer documentation and applicable project or Authority Having Jurisdiction requirements.
What should I specify when ordering RFA7B161 Gray?
Identify Ecoglo® RFA7B161, RF7B-E40 series, Gray anti-slip configuration, required lengths, aluminum finish and quantity.
For larger commercial or specification-driven projects, also provide the project location, relevant stair details and required delivery timing when known.
Where can architects obtain RFA7B161 technical information?
Use the RF7B-E40 technical data sheet and CAD resources for dimensions, installation coordination, finish selection and project submittals.
Need Help Specifying Ecoglo® RFA7B161 Gray?
Contact ComposiGrip for RFA7B161 Gray pricing, custom lengths, commercial quantities, anodized finish selection, technical documentation and RF7B-E40 project support.
Contractor & Distributor Pricing
Contractors, installers, property managers, and commercial buyers may qualify for special pricing on ComposiGrip™ stair tread covers, anti-slip strips, and safety products.
- Special pricing for qualifying contractors and distributors
- Bulk order support for commercial and residential projects
RF7B-E40 Photoluminescent Resilient Flooring Stair Nosing
Explore the Ecoglo® RF7B-E40 series of photoluminescent anodized-aluminum resilient-flooring stair nosings. Designed for flush installation with resilient flooring, the RF7B-E40 uses a 90° profile with five photoluminescent strips and an integrated non-slip strip for visible stair-edge definition in changing light conditions.
RF7B-E40 is a 90° photoluminescent anodized-aluminum resilient-flooring stair-nosing series. Ecoglo® identifies five photoluminescent strips and a non-slip strip across its approximately 2.19-inch surface. The series is available as RFA7B171 Black, RFA7B161 Gray and RFA7B151 Yellow.
RFA7B171 Black, RFA7B161 Gray and RFA7B151 Yellow use the same RF7B-E40 90° resilient-flooring profile. Select the anti-slip color according to the required stair-edge contrast, surrounding flooring, architectural design and project specification.
Review manufacturer product dimensions, installation information, available finishes, performance information and architectural details before final specification.
What products are included in the Ecoglo® RF7B-E40 series?
The RF7B-E40 series is available in three primary anti-slip colors: RFA7B171 Black, RFA7B161 Gray and RFA7B151 Yellow.
All three models use the same 90° RF7B-E40 resilient-flooring stair-nosing profile.
What makes RF7B-E40 different from other resilient-flooring nosings?
RF7B-E40 combines a 90° resilient-flooring profile, five photoluminescent strips and a non-slip strip across an approximately 2.19-inch surface.
This E40 configuration is designed for projects seeking a larger photoluminescent surface while maintaining an integrated anti-slip component.
What flooring is RF7B-E40 designed for?
RF7B-E40 is designed to install flush with resilient flooring. Ecoglo® also identifies its resilient-flooring nosings for vinyl and other thin flooring materials.
Confirm the finished flooring build-up and stair-edge geometry against the approved architectural detail before ordering.
What lengths are available for RF7B-E40?
Standard RF7B-E40 lengths are 8 FT and 10 FT.
Cut-to-length sizes are also available. Ecoglo® publishes an approximate cut-length tolerance of ±1/8 inch.
How is RF7B-E40 installed?
Install RF7B-E40 flush with resilient flooring using adhesive and mechanical fasteners.
The aluminum nosing is supplied with pre-drilled countersunk holes, stainless-steel fasteners and concrete nylon anchors. Standard hole locations are approximately 2 inches from each end and approximately 12 inches apart.
Does the RF7B-E40 series use a replaceable insert?
Yes. RF7B-E40 uses an insert supplied unattached from the aluminum extrusion.
The insert is installed over the mechanical fasteners using polyurethane adhesive. Ecoglo® specifies that the insert can be cut using a shear, while the aluminum nosing should be cut with an appropriate saw.
The abrasive insert should not be cut with the saw because it can damage the blade.
What aluminum finishes are available for RF7B-E40?
The standard extrusion finish is Clear Anodized Aluminum.
Ecoglo® also identifies Black, Light Bronze and Dark Bronze anodized finishes as additional-cost options.
Optional finish availability, pricing and lead time should be confirmed before material is released for ordering.
Is the RF7B-E40 anti-slip color the same as the aluminum finish?
No. Black, Gray and Yellow identify the anti-slip configuration, while the aluminum extrusion has its own anodized finish.
For example, RFA7B171 is the Black model but can still use the standard Clear Anodized Aluminum extrusion.
How should I choose between Black, Gray and Yellow RF7B-E40?
Select the anti-slip color according to the required visual contrast, surrounding resilient flooring, architectural palette and project specification.
Black provides a dark neutral option, Gray provides a softer neutral appearance, and Yellow provides a more prominent daytime stair-edge color.
Is RF7B-E40 suitable for high-traffic commercial stairs?
Ecoglo® describes RF7B-E40 as a durable stair-edge system using hard-wearing silicon-carbide non-slip material integrally bonded to the aluminum substrate.
The photoluminescent strips incorporate protective ridges intended to reduce abrasive wear, while the anodized aluminum finish provides abrasion and corrosion resistance.
Actual service life will depend on traffic, installation, exposure and maintenance.
Can RF7B-E40 be used indoors and outdoors?
Ecoglo® identifies the RF7B-E40 aluminum stair-nosing system for indoor and outdoor applications and reports accelerated UV and weathering exposure testing.
Final suitability should still be confirmed for the specific environment, substrate and project requirements.
Does RF7B-E40 require electricity to provide photoluminescent visibility?
The photoluminescent strips use suitable existing ambient illumination and consume zero electrical energy at the stair nosing.
Ecoglo® also describes the product materials as non-radioactive, non-toxic and recyclable.
Is RF7B-E40 UL 1994 and ULC 572 listed?
The current Ecoglo® RF7B-E40 manufacturer data sheet identifies RF7B-E40 as UL 1994 and ULC 572 listed.
Architects, contractors and code consultants should verify the current manufacturer documentation and applicable project or Authority Having Jurisdiction requirements.
What should be included in an RF7B-E40 architect or contractor submittal?
A project submittal should identify the RF7B-E40 series, RFA7B model/color, aluminum finish, required lengths and quantities.
Supporting documentation may include the RF7B-E40 data sheet, CAD details, installation information and current listing or project-specific compliance documentation.
What information should I provide when requesting an RF7B-E40 project quote?
Provide the RFA7B model/color, quantity, required lengths, aluminum finish, project location and required delivery timing if known.
For larger commercial or specification-driven projects, drawings, stair details or the relevant specification section can help confirm the requested configuration.
Need Help Selecting or Specifying the RF7B-E40 Series?
ComposiGrip can assist architects, contractors, estimators and procurement teams with RF7B-E40 model selection, custom lengths, optional anodized finishes, commercial quantities, technical documentation and specification-driven requirements.
General Information
Install with premium polyurethane adhesive.
- Option for mechanical fasteners.
- Do not use mechanical fasteners when installing outdoors.
- Available in cut to length sizes. (Tolerance +or- 1/8”) Standard lengths are 8ft and 10ft.
- Weight: 0.1 lbs/ft.
Engineered for Durability
- Manufactured using Ecoglo®’s patented process which produces the most durable and highly efficient photoluminescent product available.
- Unique ridges in the photoluminescent strips protect it from most abrasive wear. They provide slip resistance while still allowing the product to be easily cleaned.
- The hard-wearing silicon carbide non-slip material is integrally bonded to the aluminum substrate. Thousands of people can walk on it with no signs of wear and tear.
Superior Step Edge Safety
- The color contrasting the non-slip material with advanced photoluminescent technology provides step edge visibility in all light conditions.
- The unique ridges in the Ecoglo® photoluminescent strips and the integrated anti-slip contrast strips provide all-weather slip resistance.
Installed Durability:
- The rigid aluminum base spreads any applied load over a greater area of installation adhesive. Installation with a premium polyurethane adhesive/sealant is extremely durable, moisture resistant, and works very well on both smooth and textured surfaces.
For Indoor Use and Outdoor Use:
- Tested to accelerated UV/weathering exposure, and proven to be highly resistant to the effects of UV/weathering.
- The loss in performance is less than can be detected by the human eye when subjected to 6000 hours of UV exposure, which is similar to 30 years of outdoor exposure.
- The polymer used in Ecoglo’s patented process is “long chain” which forms a strong UV resistant product when bonding.
Environmentally Friendly Photoluminescent Contrast Strip
- LEED points qualified
- Zero energy consumption
- Non-Radioactive and Non-toxic
- Recyclable; No disposable cost
