Ecoglo® G3001 Photoluminescent Aluminum Guidance Strips (0.6" x 10ft)
Couldn't load pickup availability
Ecoglo® vs Emergency Lights
See the difference in real emergency conditions.
No Power. No Failure. Always Visible.
Visible by Day.
Glowing by Night.
See how Ecoglo® provides excellent visibility in dark and light conditions and helps enhance egress speed in all light conditions in normal lighting and provides reliable guidance in darkness or during power outages.
Benefits of the Ecoglo® G3001 Guidance Strip
High Visibility. Zero Energy Consumption. Built for Durability.
The Ecoglo® G3001 Photoluminescent Guidance Strip provides excellent visibility and helps enhance egress speed in all light conditions. The 0.6-inch-wide strip is UL 1994 and ULC 572 Listed and is ideal for areas required by code to have luminous path markings.

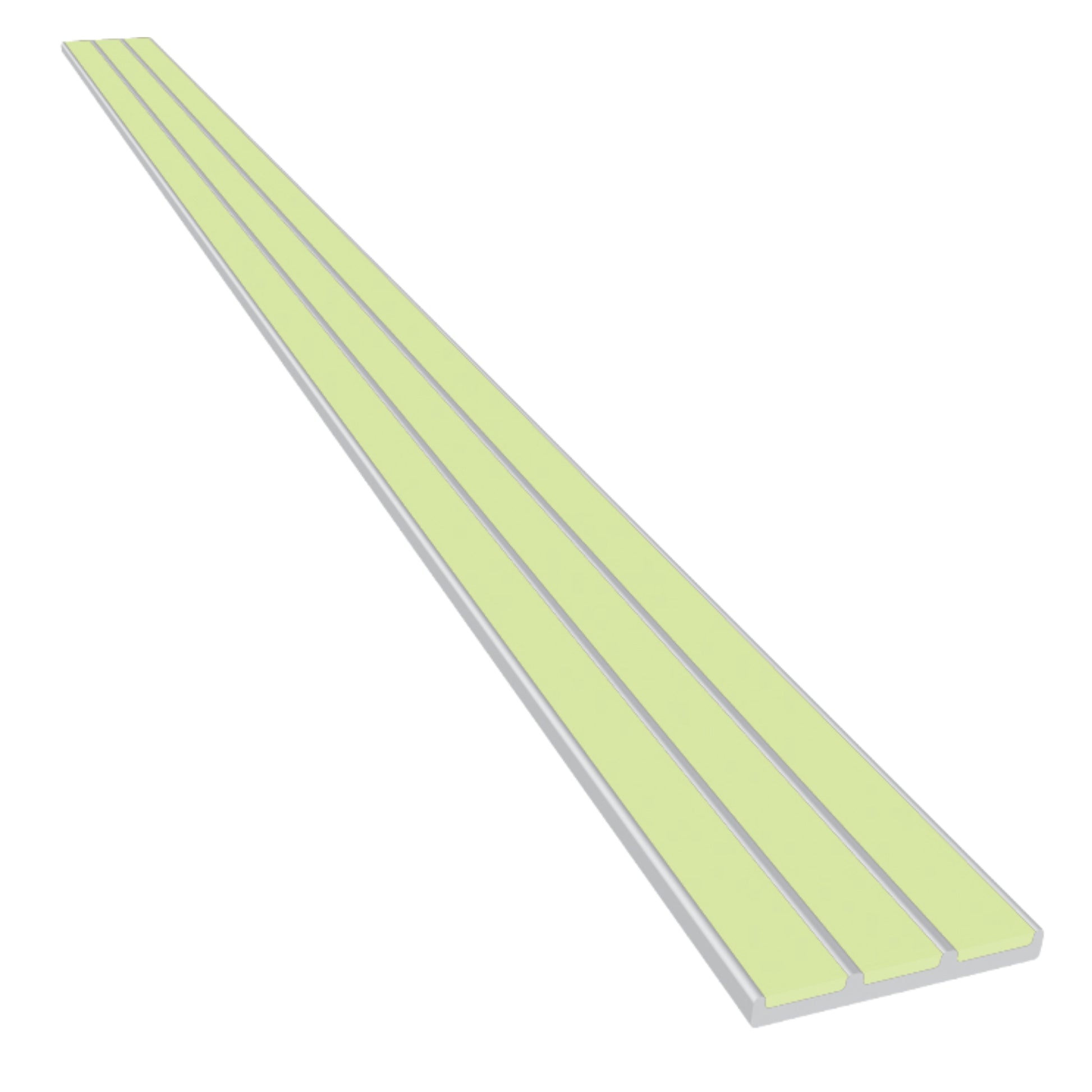

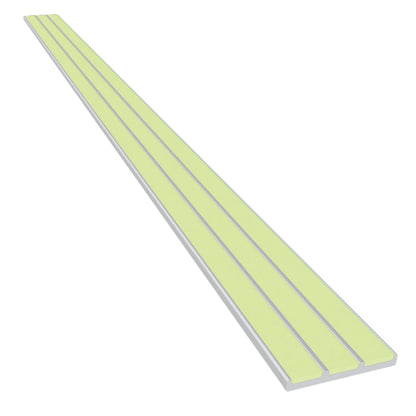

G3001 Photoluminescent Guidance Strip
The Ecoglo® G3001 is a durable 0.6-inch-wide photoluminescent guidance strip designed to provide excellent visibility and enhance egress speed in all light conditions.
Egress Safety Benefits
- ✔ 0.6-inch-wide photoluminescent guidance strip.
- ✔ Provides excellent visibility in all light conditions.
- ✔ Helps enhance emergency egress speed.
- ✔ Ideal for areas required by code to have luminous path markings.
- ✔ Highly visible in both dark and light conditions.
Code & Listings
- ✔ UL 1994 and ULC 572 Listed.
- ✔ Meets IBC/IFC 2009 and 2012 Section 1024 requirements for luminous egress path markings.
- ✔ Meets IBC/IFC 2015–2021 Section 1025 requirements.
- ✔ Meets ULC 590 S and ULC 572 S standards.
- ✔ Meets CSA B651 and ISO/FDIS 2145 standards.
Engineered for Durability
- ✔ Manufactured using Ecoglo’s patented photoluminescent process.
- ✔ Designed to provide durable and highly efficient photoluminescent performance.
- ✔ Unique ridges protect the photoluminescent strip from most abrasive wear.
- ✔ Ridges provide slip resistance while allowing the product to be easily cleaned.
- ✔ Rigid aluminum base spreads applied loads over a greater area of installation adhesive.
- ✔ Premium polyurethane adhesive or sealant provides a durable, moisture-resistant installation.
Indoor & Outdoor Use
- ✔ Suitable for indoor and outdoor use.
- ✔ Tested under accelerated UV and weathering exposure.
- ✔ Highly resistant to the effects of UV exposure and weathering.
- ✔ Performance loss is below visible detection after 6,000 hours of UV exposure.
- ✔ 6,000 hours of UV exposure is similar to approximately 30 years of outdoor exposure.
- ✔ Long-chain polymer construction creates a strong, UV-resistant bond.
Installation Details
- ✔ Install using a premium polyurethane adhesive.
- ✔ Premium polyurethane adhesive or sealant provides a durable and moisture-resistant installation.
- ✔ Works well on both smooth and textured surfaces.
- ✔ Available in 10 ft lengths.
- ✔ Weight: 0.022 lbs per ft.
Environmentally Friendly
- ✔ Qualifies for LEED points.
- ✔ Zero energy consumption.
- ✔ Non-radioactive and non-toxic.
- ✔ Aluminum-based product is 100% recyclable with no disposal cost.
- ✔ Approximately 20% of the aluminum content in the Ecoglo secondary billet specification is recycled scrap.
- ✔ Ecoglo’s recommended low-VOC installation adhesive qualifies for Indoor Environmental Quality credit EQc4.1.
Tested Performance
- ✔ Tested for photoluminescent brightness and visibility.
- ✔ Tested for UV stability and outdoor durability.
- ✔ Tested for salt spray resistance.
- ✔ Tested for freeze-thaw resistance.
- ✔ Tested for abrasion resistance and washability.
- ✔ Tested for radioactivity, toxicity and flammability.
The Ecoglo® G3001 Photoluminescent Guidance Strip provides excellent visibility and helps enhance egress speed in all light conditions. It is ideal for areas required by code to have luminous path markings.
The Ecoglo® G3001 is UL 1994 and ULC 572 Listed and meets IBC/IFC 2009 and 2012 Section 1024, IBC/IFC 2015–2021 Section 1025, ULC 590 S, ULC 572 S, CSA B651 and ISO/FDIS 2145.
Contractor & Distributor Pricing
Contractors, installers, property managers, and commercial buyers may qualify for special pricing on ComposiGrip™ stair tread covers, anti-slip strips, and safety products.
- Special pricing for qualifying contractors and distributors
- Bulk order support for commercial and residential projects
Photoluminescent Guidance for Luminous Egress Path Markings
The Ecoglo® G3001 Photoluminescent Guidance Strip provides excellent visibility and helps enhance egress speed in all light conditions. It is designed for areas required by code to have luminous path markings.
The G3001 is 0.6 inches wide and is manufactured using Ecoglo’s patented photoluminescent process. It is UL 1994 and ULC 572 Listed and meets applicable building, fire and life-safety standards identified in the manufacturer’s data sheet.
The strip features a rigid aluminum base that spreads applied loads over a greater area of installation adhesive. When installed using a premium polyurethane adhesive or adhesive/sealant, it provides a durable, moisture-resistant installation that works well on both smooth and textured surfaces.
Unique ridges protect the photoluminescent material from most abrasive wear. These ridges also provide slip resistance while allowing the product to be easily cleaned.
Designed for indoor and outdoor use, the G3001 has been tested under accelerated UV and weathering exposure and has demonstrated high resistance to the effects of UV exposure and weathering. According to the manufacturer, performance loss is less than can be detected by the human eye after 6,000 hours of UV exposure, which is described as similar to approximately 30 years of outdoor exposure.
Key Features and Benefits
Excellent Visibility
The G3001 provides high visibility in both dark and light conditions and helps enhance egress speed in all light conditions.
UL 1994 and ULC 572 Listed
The 0.6-inch-wide G3001 is UL 1994 and ULC 572 Listed for luminous egress path marking applications.
Engineered for Durability
Ecoglo’s patented manufacturing process produces a durable and highly efficient photoluminescent product.
Protective Ridge Design
Unique ridges protect the photoluminescent material from most abrasive wear, provide slip resistance and allow the product to be easily cleaned.
Rigid Aluminum Base
The rigid aluminum base spreads applied loads over a greater area of installation adhesive to support a durable installation.
Indoor and Outdoor Use
The G3001 is suitable for indoor and outdoor use and has been tested for UV stability, salt-spray resistance and freeze-thaw resistance.
Environmentally Friendly
The G3001 has zero energy consumption, is non-radioactive and non-toxic, and is manufactured with an aluminum base that is 100% recyclable.
Recommended Applications
- Areas required by code to have luminous path markings
- Indoor luminous egress path marking applications
- Outdoor luminous egress path marking applications
- Projects requiring UL 1994-listed photoluminescent guidance strips
Product Specifications
Product: Photoluminescent guidance strip
Model: G3001
Brand: Ecoglo®

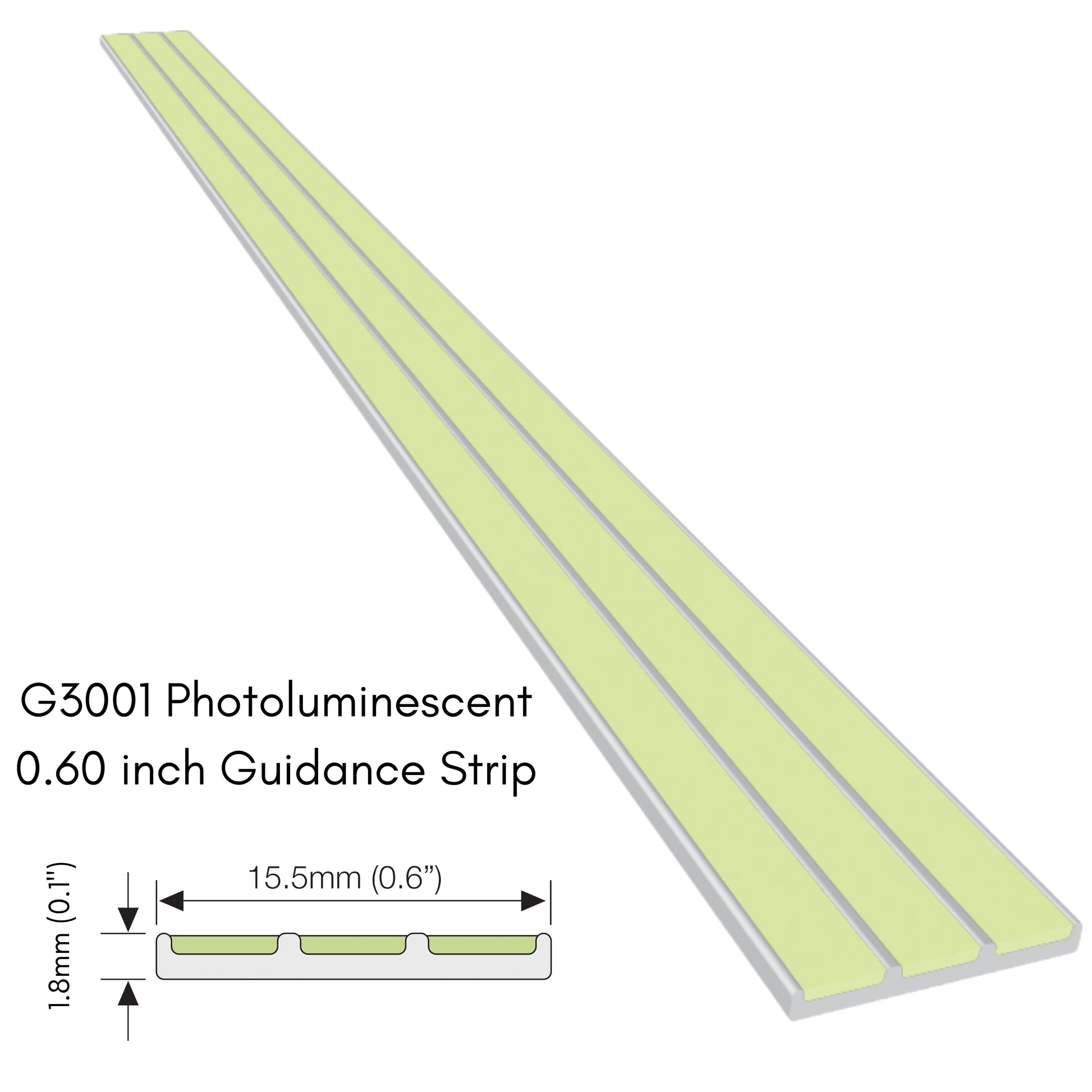

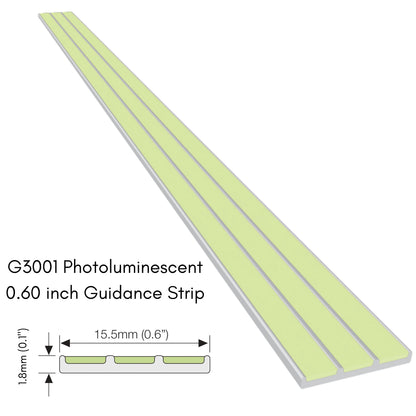

Width: 0.6 in (15.5 mm)
Profile height: 0.1 in (1.8 mm), as listed in the manufacturer’s data sheet
Length: 10 ft
Weight: 0.022 lb per ft
Base material: Rigid aluminum
Installation method: Premium polyurethane adhesive or adhesive/sealant
Use: Indoor and outdoor
Listings: UL 1994 and ULC 572 Listed
Environmental properties: Zero energy consumption, non-radioactive, non-toxic and recyclable
Installation
Install the Ecoglo® G3001 using a premium polyurethane adhesive.
The manufacturer’s data sheet also states that installation with a premium polyurethane adhesive or adhesive/sealant is extremely durable, moisture resistant and works well on both smooth and textured surfaces.
Cleaning and Durability
The G3001 features raised ridges that protect the photoluminescent material from most abrasive wear while allowing the product to be easily cleaned.
The product meets or exceeds performance criteria associated with abrasion resistance and practical washability testing.
Building, Accessible Design, Fire and Life-Safety Standards

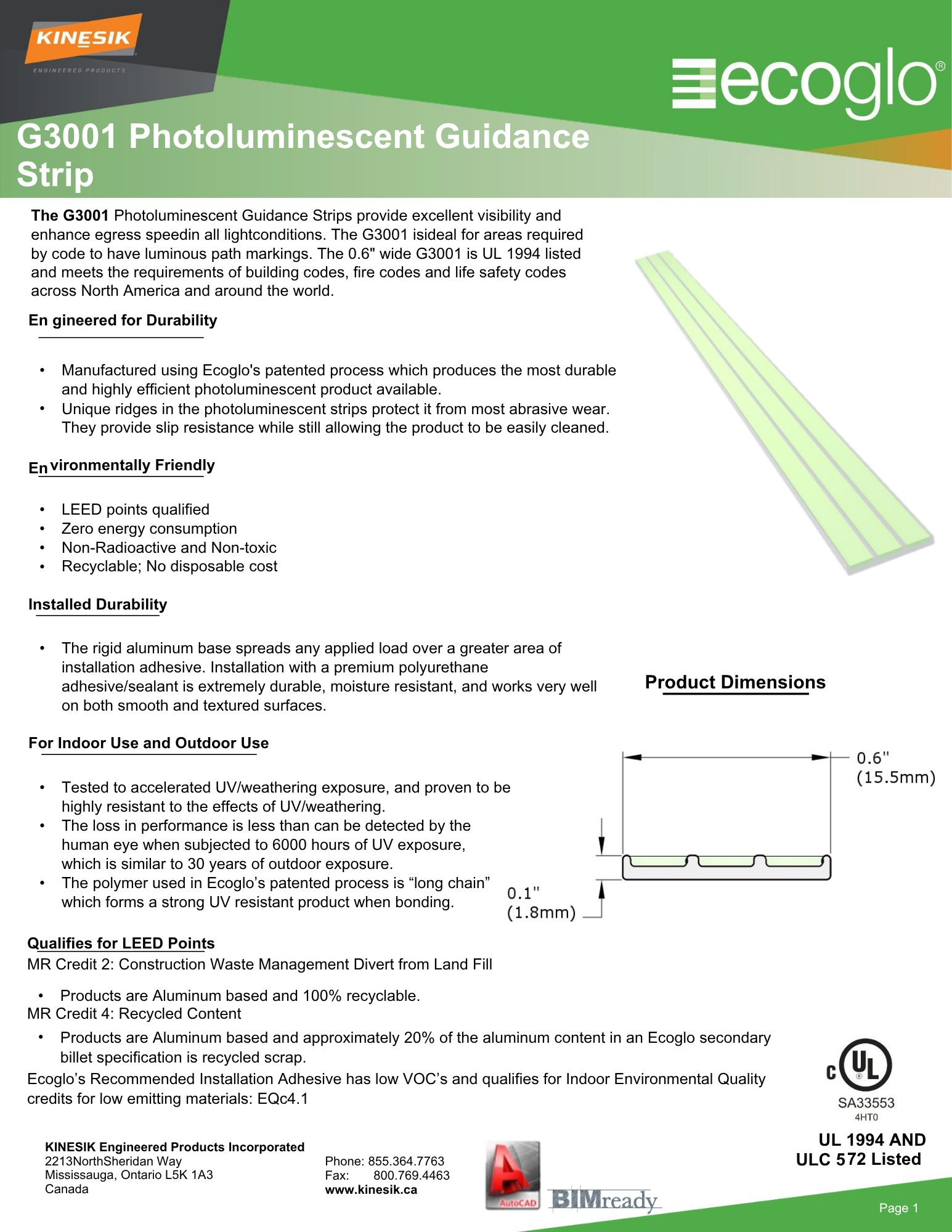

According to the manufacturer’s data sheet, the Ecoglo® G3001 meets the following standards:
- IBC/IFC 2009 and 2012, Section 1024 — Luminous Egress Path Markings
- IBC/IFC 2015–2021, Section 1025
- ULC 590 S
- ULC 572 S
- CSA B651
- ISO/FDIS 2145
Tested Performance
The G3001 meets or exceeds the performance criteria identified in the manufacturer’s data sheet for:
Brightness
- ASTM E2073-02
- DIN 67510 Part 1
- ISO 17398:2004, Clause 7.11
UV Stability and Outdoor Durability
- ASTM G155-04 Cycle 1
- ASTM B117-97 salt-spray resistance
- ASTM C1026-87 freeze-thaw resistance
Abrasion Resistance
- ASTM D1242-95a
- ASTM F510-93
- JIS H8682-1:1999
Washability
- ASTM D4828-94
Radioactivity and Toxicity
- ASTM D3648-2004
- Bombardier SMP 800-C
Flammability
- ASTM E162-02
- ASTM D635-03
- FAA AC 23.2 Paragraph 4.b
Qualifies for LEED Points
MR Credit 2: Construction Waste Management — Divert from Landfill
The product is aluminum based and 100% recyclable.
MR Credit 4: Recycled Content
Approximately 20% of the aluminum content in the Ecoglo secondary billet specification is recycled scrap.
Indoor Environmental Quality
Ecoglo’s recommended installation adhesive has low VOCs and qualifies for Indoor Environmental Quality credits for low-emitting materials under EQc4.1.
GUIDES
-
INSTALLATION GUIDE
DOWNLOADRequired Tools:
• Rubbing Alcohol or Acetone
• Premium Polyurethane adhesive/sealant
*Bostik 915 FS is recommended
• Caulking gun
• Roller, Brush, Pan, Paint Scraper
• Soft Cloth & a Box Cutter
• Painters tape
• Concrete Screws:# 8 x 32mm (1 ¼ inch) countersunk square
(#1) Stainless Steel AB self tapping screw, Phillips drive.
• Anchors – 6mm x 30mm (0.25 x 1 3/16 inches) plastic anchor
• 6 mm masonry drill bits -
2024 COMPLIANCE GUIDE
DOWNLOADThis document provides guidance to local building officials, architects, and contractors as to the requirements for
luminous egress path markings in new and existing high-rise buildings, in accordance with the 2024 International Building and Fire codes.
General Information
Install with premium polyurethane adhesive.
- Option for mechanical fasteners.
- Do not use mechanical fasteners when installing outdoors.
- Available in cut to length sizes. (Tolerance +or- 1/8”) Standard lengths are 8ft and 10ft.
- Weight: 0.1 lbs/ft.
Engineered for Durability
- Manufactured using Ecoglo®’s patented process which produces the most durable and highly efficient photoluminescent product available.
- Unique ridges in the photoluminescent strips protect it from most abrasive wear. They provide slip resistance while still allowing the product to be easily cleaned.
- The hard-wearing silicon carbide non-slip material is integrally bonded to the aluminum substrate. Thousands of people can walk on it with no signs of wear and tear.
Superior Step Edge Safety
- The color contrasting the non-slip material with advanced photoluminescent technology provides step edge visibility in all light conditions.
- The unique ridges in the Ecoglo® photoluminescent strips and the integrated anti-slip contrast strips provide all-weather slip resistance.
Installed Durability:
- The rigid aluminum base spreads any applied load over a greater area of installation adhesive. Installation with a premium polyurethane adhesive/sealant is extremely durable, moisture resistant, and works very well on both smooth and textured surfaces.
For Indoor Use and Outdoor Use:
- Tested to accelerated UV/weathering exposure, and proven to be highly resistant to the effects of UV/weathering.
- The loss in performance is less than can be detected by the human eye when subjected to 6000 hours of UV exposure, which is similar to 30 years of outdoor exposure.
- The polymer used in Ecoglo’s patented process is “long chain” which forms a strong UV resistant product when bonding.
Environmentally Friendly Photoluminescent Contrast Strip
- LEED points qualified
- Zero energy consumption
- Non-Radioactive and Non-toxic
- Recyclable; No disposable cost
Commercial Project Support: Talk to Our Ecoglo® Photoluminescent Safety Experts
Why Contractors & Facilities Choose Ecoglo®
Ecoglo® Projects
-
Bank of America Plaza features Ecoglo®’s complete emergency egress system, including step-edge, handrail, and perimeter markings, plus emergency door indicators, directional signs, and floor ID signs.
-
Ecoglo® installed a complete egress pathmarking system with included handrail marking, perimeter marking, obstruction
markings and Ecoglo®’s stair nosing. -
Ecoglo® Products installed include UL 924 listed exit signs, photoluminescent directional signs and photoluminescent
pathmarking strips developed specifically for The Pentagon. -
The 6,500-seat Mississippi Coliseum in Jackson features Ecoglo®’s luminous handrail and step-edge markings to reduce trip and fall risks during major events.
