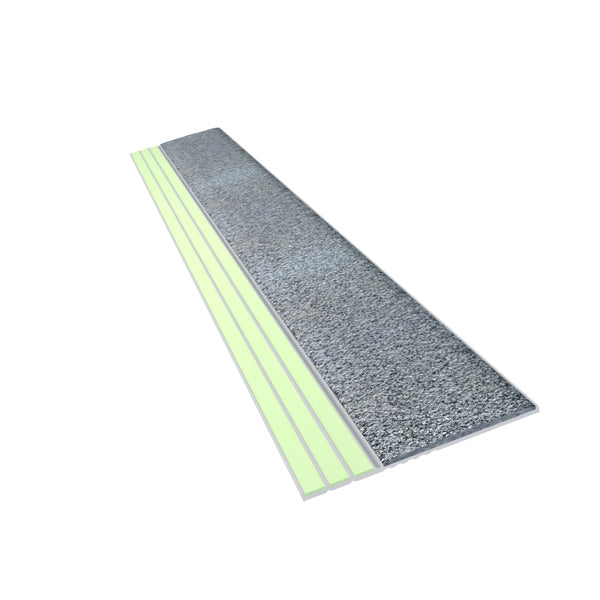

Ecoglo® E3061 Gray Photoluminescent Contrast Strips, 2 inch | E30
Ecoglo® E3061 is the gray anti-slip model in the E30 Series of 2-inch-wide photoluminescent step-edge contrast strips. Designed for stairways that require durable luminous path markings, E3061 combines three ridged Ecoglo® photoluminescent strips with a larger, hard-wearing gray silicon-carbide anti-slip surface on a rigid aluminum base.
Gray Photoluminescent Stair Edge Contrast Strip for Safer Egress
Ecoglo® E3061 is designed for stairways where architects, contractors, estimators, property managers and facility operators require a durable combination of step-edge visibility, slip resistance and photoluminescent egress marking. Ecoglo identifies the 2-inch-wide E30 Series as particularly suited to stairs that are required by code to have luminous path markings.
In normal lighting, the gray silicon-carbide anti-slip surface provides strong visual definition alongside the photoluminescent leading-edge strips to help define the stair edge. The luminous material charges from natural or artificial light and remains visible after normal illumination is lost, providing passive guidance without electricity or batteries at the strip.
The rigid aluminum profile can be installed on suitable concrete, wood and metal stair surfaces using premium polyurethane adhesive. Mechanical fasteners are also an option for appropriate installations, but Ecoglo specifies that mechanical fasteners should not be used outdoors.
2-Inch E30 Profile
The E30 profile is approximately 2 inches (51.0 mm) wide and only 0.1 inches (1.8 mm) high, providing a low-profile but highly visible stair-edge marking.
Three Photoluminescent Strips
Three ridged photoluminescent strips provide luminous stair-edge definition while the protective ridge design helps resist abrasive wear and contributes slip resistance.
Gray Anti-Slip Surface
Compared with the narrower E20 format, the E30 Series provides a larger silicon-carbide anti-slip surface for durable traction and strong visual contrast.
Ecoglo® E3061 / E30 Technical Specifications
Model-specific technical information helps architects, estimators, contractors, specification consultants and procurement teams correctly identify E3061 during design, bidding, submittals and purchasing. The specifications below follow current Ecoglo® E30 manufacturer product information.
| Specification | Ecoglo® E3061 Gray |
|---|---|
| Manufacturer | Ecoglo® |
| Model | E3061 |
| Series | E30 Series Photoluminescent Contrast Strip |
| Anti-Slip Color | Gray |
| Application | Step-edge marking and luminous egress applications |
| Overall Width | Approx. 2" / 51.0 mm |
| Overall Height | Approx. 0.1" / 1.8 mm |
| Photoluminescent Configuration | Three ridged photoluminescent strips |
| Anti-Slip Configuration | Larger gray silicon-carbide non-slip surface integrally bonded to the aluminum substrate |
| Standard Manufacturer Lengths | 8 ft and 10 ft |
| Cut-to-Length Availability | Available in cut-to-length sizes with manufacturer tolerance of approximately ±1/8" |
| Weight | Approx. 0.161 lb/ft |
| Base Material | Rigid aluminum substrate |
| Anti-Slip Material | Hard-wearing silicon-carbide non-slip material integrally bonded to the aluminum substrate |
| Installation | Premium polyurethane adhesive |
| Mechanical Fasteners | Optional for appropriate applications; manufacturer states not to use mechanical fasteners for outdoor installation |
| Indoor / Outdoor | Designed for indoor and outdoor applications |
| Electrical Power Required | None at the strip |
| Manufacturer Listing | UL 1994 and ULC 572 listed |
| Available E30 Colors | Black E3071, Gray E3061 and Yellow E3051 |
2-Inch E30 Photoluminescent Stair-Edge Profile
The E30 Series combines three photoluminescent strips with a larger color-contrasting silicon-carbide anti-slip surface across an approximately 2-inch-wide (51.0 mm), low-profile aluminum base.
2.0" Overall Width
The E30 Series measures approximately 2.0 inches (51.0 mm) wide, providing more anti-slip surface area than the narrower 1.5-inch E20 Series.
0.1" Low Profile
At approximately 0.1 inches (1.8 mm) high, E30 provides a slim surface-applied profile for existing stair installations.
Three Luminous Ridges + Anti-Slip
Ridged Ecoglo® photoluminescent strips work with the hard-wearing black silicon-carbide surface to support visibility and all-weather slip resistance.
Download the Ecoglo® E30 Technical Data Sheet
Architects, specification consultants, estimators, general contractors, government contractors and facility managers can use the manufacturer technical data sheet for product review, specifications, submittals, procurement and close-out documentation.
Engineered for High-Traffic Stairways
Ecoglo® designed the E30 Series for demanding pedestrian environments where long-term step-edge visibility, traction and durability are important.
- Photoluminescent ridges help protect the luminous material from abrasive wear.
- The ridged photoluminescent section contributes additional slip resistance.
- Hard-wearing gray silicon-carbide anti-slip material is integrally bonded to the aluminum substrate.
- The rigid aluminum base helps distribute applied loads across the adhesive installation area.
- Premium polyurethane adhesive provides a durable installation when installed according to manufacturer instructions.
- Designed for suitable smooth and textured stair surfaces.
- Ecoglo® reports accelerated UV and weathering testing for indoor and outdoor applications.
- Manufacturer testing reports less than visually detectable performance loss after 6,000 hours of accelerated UV exposure.
- Aluminum-based construction is recyclable.
- Photoluminescent operation requires zero electrical energy at the stair edge.
E3061 Installation on Existing Stair Surfaces
E3061 is a surface-applied photoluminescent contrast strip designed to be secured to a suitable prepared stair surface.
1. Prepare the Stair Surface
Ensure the installation surface is suitable, clean and prepared in accordance with current Ecoglo® installation instructions.
2. Apply Polyurethane Adhesive
Ecoglo® specifies premium polyurethane adhesive for durable installation of the E30 aluminum profile.
3. Position the Step-Edge Strip
Install the strip at the approved stair-edge location in accordance with project details, manufacturer guidance and applicable requirements.
How Ecoglo® E3061 Can Help Simplify Large-Project Specification
On commercial, government and institutional projects, clearly identifying the required stair-edge product during design and procurement can help reduce incorrect substitutions, missing documentation and avoidable field changes.
Identifying the exact manufacturer → series → model → color → technical data → installation creates a clearer documentation path from specification through installation.
1 Specify the Exact Model
Identify the product as Ecoglo® E3061 Gray, E30 Series rather than using only a generic description such as “photoluminescent stair strip.”
2 Confirm the Required Width
Confirm that the approximately 2-inch-wide E30 profile is appropriate for the architectural stair detail and project specification.
3 Include the Manufacturer Data Sheet
Include the E30 Series technical data sheet in the project submittal so dimensions, materials, installation and performance information can be reviewed.
4 Confirm Installation Surface
Verify that the stair substrate and surface condition are suitable for the manufacturer's specified installation method.
5 Coordinate Lengths and Quantities
Confirm required stair widths, field dimensions and quantities before releasing material for fabrication or cutting.
6 Keep Documentation for Final Review
Retain approved product submittals, technical documentation, installation information and model identification for consultant and inspection review.
E3061 Project & Inspection-Readiness Checklist
- Manufacturer identified as Ecoglo®
- Exact model identified as E3061
- E30 Series identified on submittal documents
- Gray anti-slip configuration confirmed
- 2-inch profile width confirmed
- Stair substrate and surface condition reviewed
- Premium polyurethane adhesive installation reviewed
- E30 manufacturer technical data sheet included
- Required lengths and quantities coordinated
- Applicable listing documentation reviewed
- Photoluminescent charging illumination addressed where required
- Indoor or outdoor installation condition confirmed
- Mechanical-fastener restrictions reviewed for outdoor applications
- Installed strip location matches approved project documents
- Locally adopted building and fire-code requirements reviewed
- AHJ-specific requirements addressed before final inspection
Building, Fire & Life-Safety References
Ecoglo® identifies the E30 Series for luminous-egress applications and references multiple building, fire and life-safety standards in its manufacturer technical documentation. Applicability must be confirmed for each individual project and jurisdiction.
Code Note: Code applicability depends on building type, occupancy, jurisdiction, locally adopted code edition and project conditions. Architects, code consultants, contractors and owners should confirm requirements with the applicable Authority Having Jurisdiction.
Performance Characteristics
Slip Resistance
The integrated silicon-carbide anti-slip surface and ridged photoluminescent section are designed to provide durable traction in pedestrian environments.
UV & Weather Resistance
Ecoglo® reports accelerated UV and weathering testing supporting indoor and outdoor applications.
Abrasion Resistance
Protective luminous ridges and hard-wearing silicon-carbide construction are engineered for demanding pedestrian traffic.
No Electrical Power
Photoluminescent operation requires no electrical connection, battery or wiring at the stair edge.
Non-Radioactive & Non-Toxic
Ecoglo® identifies its photoluminescent technology as non-radioactive and non-toxic.
Recyclable Aluminum
The aluminum-based product is recyclable and can support project sustainability objectives.
Designed for Commercial, Institutional & Government Stairways
Ecoglo® E3061 can provide a repeatable, specification-ready photoluminescent step-edge solution across large projects containing multiple stairways, exits or egress routes.
- Federal government buildings
- State and provincial government facilities
- Municipal buildings
- Courthouses and public-safety facilities
- Airports and transportation terminals
- Rail and transit stations
- Parking garages and parking structures
- Hospitals and healthcare facilities
- Universities and colleges
- Schools and educational facilities
- High-rise buildings
- Commercial office towers
- Hotels and hospitality developments
- Stadiums and arenas
- Convention centers
- Public-assembly facilities
- Industrial facilities
- Large commercial developments
- Public infrastructure projects
Architect & Specification Support
Specifying the exact E30 model during design development helps coordinate strip width, anti-slip color, luminous marking requirements, stair-edge dimensions, lengths and installation before material is ordered.
Manufacturer: Ecoglo®
Product: E3061 Gray Photoluminescent Step Edge Contrast Strip, E30 Series.
Application: Surface-applied photoluminescent stair-edge marking.
Profile Width: Approximately 2 inches / 51.0 mm.
Profile Height: Approximately 0.1 inches / 1.8 mm.
Photoluminescent Configuration: Three ridged Ecoglo® photoluminescent strips along the leading-edge portion of the profile.
Anti-Slip Configuration: Larger gray silicon-carbide anti-slip surface integrally bonded to the aluminum substrate.
Material: Rigid aluminum base with Ecoglo® photoluminescent material and integrally bonded silicon-carbide anti-slip surface.
Installation: Install using premium polyurethane adhesive in accordance with current Ecoglo® instructions and approved project documents.
Standard Manufacturer Lengths: 8 ft and 10 ft. Cut-to-length sizes available subject to manufacturer tolerance.
Color: E3061 Gray anti-slip configuration.
Listing: Manufacturer identifies the E30 Series as UL 1994 and ULC 572 listed.
Submittals: Provide current product data, listing documentation, installation information and other documentation required by the contract documents.
Specifier Note: This suggested basis-of-design language should be reviewed and edited by the project architect or specification consultant for the specific project and jurisdiction.
Compare Ecoglo® E30 Photoluminescent Contrast Strip Colors
The Ecoglo® E30 Series is available with Black, Gray and Yellow silicon-carbide anti-slip configurations. All three use the same 2-inch-wide E30 aluminum profile and three-ridge photoluminescent design, allowing architects, contractors and specification teams to coordinate stair-edge contrast with project requirements.
E3071 Black
Black silicon-carbide anti-slip surface paired with three Ecoglo® photoluminescent strips for a strong, versatile contrast treatment across commercial, institutional and luminous-egress stair applications.
E3061 Gray
Gray silicon-carbide anti-slip surface combined with three Ecoglo® photoluminescent strips for a neutral appearance, durable traction and passive luminous stair-edge visibility.
Frequently Asked Questions About Ecoglo® E3061 / E30
What is Ecoglo® E3061?
Ecoglo® E3061 is the gray anti-slip model in the E30 Series of 2-inch-wide photoluminescent step-edge contrast strips. It combines three ridged photoluminescent strips with a larger gray anti-slip surface.
How wide is the Ecoglo® E30 Series?
The E30 profile is approximately 2 inches or 51.0 mm wide and approximately 0.1 inches or 1.8 mm high.
What color is E3061?
E3061 uses a gray silicon-carbide anti-slip surface combined with Ecoglo® photoluminescent step-edge material.
What lengths are available?
Ecoglo® identifies 8 ft and 10 ft as standard manufacturer lengths. Cut-to-length sizes are also available with an approximate ±1/8-inch manufacturer tolerance.
How much does E30 weigh?
The manufacturer identifies the E30 Series weight as approximately 0.161 pounds per linear foot.
How is E3061 installed?
Ecoglo® specifies premium polyurethane adhesive for E30 installation. Mechanical fasteners are also an option for appropriate applications.
Can mechanical fasteners be used outdoors?
Ecoglo® states that mechanical fasteners should not be used when installing the E30 Series outdoors.
Can Ecoglo® E3061 be used outdoors?
Yes. Ecoglo® identifies the E30 Series for indoor and outdoor use and reports accelerated UV and weathering testing.
Does E3061 require electricity?
No electrical connection is required at the strip. Photoluminescent material absorbs energy from suitable ambient illumination and emits visible light when normal lighting is reduced.
Is Ecoglo® E3061 slip resistant?
Yes. E3061 incorporates hard-wearing gray silicon-carbide non-slip material integrally bonded to the aluminum substrate, while the ridged luminous section also contributes to traction.
Is the E30 Series UL listed?
Ecoglo® identifies the E30 Series as UL 1994 and ULC 572 listed.
What other E30 colors are available?
The E30 Series includes E3061 Gray, E3061 Gray and E3061 Gray.
Is E3061 suitable for government and large commercial projects?
E3061 can be specified for commercial, institutional, transportation, government and other large projects where the product is appropriate to the project specifications and applicable requirements.
What is the difference between the E30 and E20 Ecoglo® contrast strips?
The E30 is approximately 2 inches wide and combines three photoluminescent strips with a larger anti-slip surface. The narrower E20 Series is approximately 1.5 inches wide.
Specifying E3061 for a Government or Large Commercial Project?
Confirm the stair substrate, architectural detail, required strip lengths, quantities, anti-slip color and project specification before releasing material. Correct product identification and early coordination can help prevent incorrect selections, substitutions, field changes and avoidable rework.
