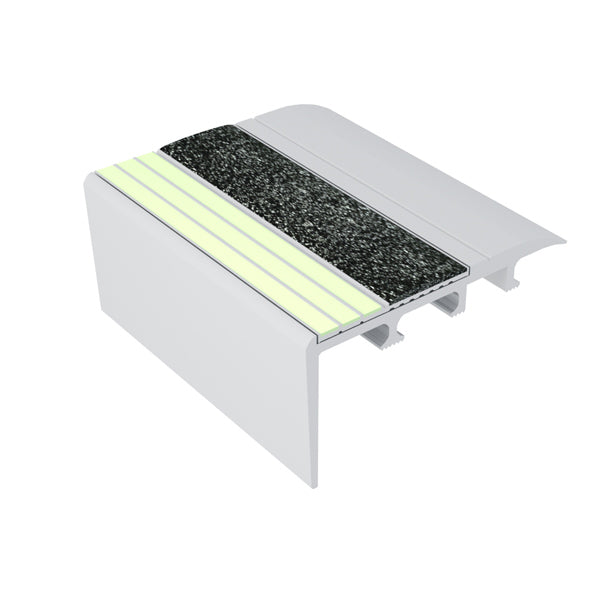

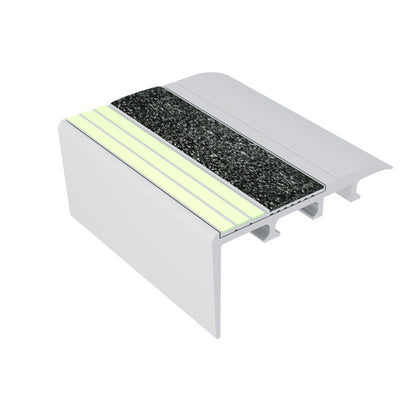

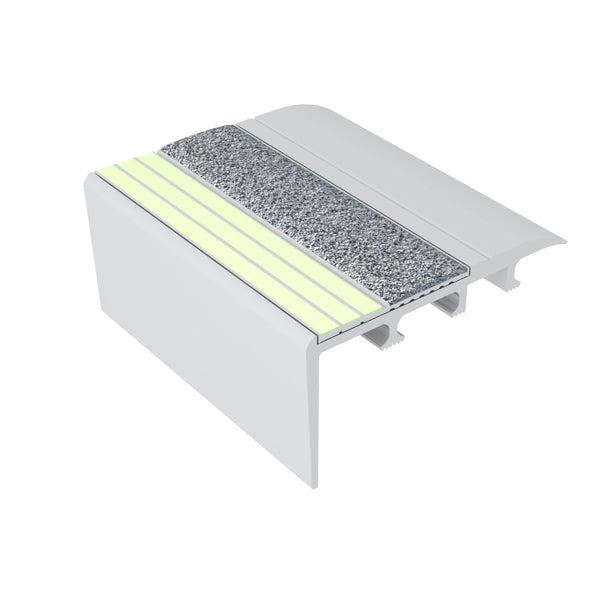

Ecoglo® C4-E20 Luminescent Carpet Stair Nosing
Couldn't load pickup availability
Visible by Day.
Glowing by Night.
See how Ecoglo® improves step visibility in normal lighting and provides reliable guidance in darkness or during power outages.
Product Dimensions
Engineered for Durability & Precision Fit
Designed for long-term performance in commercial and high-traffic environments, Ecoglo® stair nosings are built to deliver consistent safety, precise installation, and reliable durability.
Product Details
Built for performance, durability, and long-term safety.
For Indoor & Outdoor Use.
Heavy-duty construction, easy installation, and custom sizing for professional stair safety upgrades.
Size & Weight
2.7" W x 1.3" H
Custom Length: 2, 4, 6, 8, or 10 FT
Weight: 0.57 LBS/FT
Included Hardware
Supplied with pre-drilled countersunk holes, plus stainless steel fasteners and concrete nylon anchors.
Hole Spacing
Standard hole location is 2" from each end and approximately 12" apart.
Custom Sizes
Custom-cut lengths available with a ±1/8” tolerance. Contact us for project-specific sizes.
Finishes
- 6063-T5 Aluminum with Clear or Black Anodized Finish
- Type 2, Class 1 — 20 microns thickness
- Light Bronze and Dark Bronze anodized finishes available at additional cost
Easy Installation
Inserts can be supplied attached or unattached. Unattached is recommended for on-site cutting. Inserts are installed using premium polyurethane adhesive.
Pass Inspection. Improve Egress Visibility. Prevent Falls — Even in Power Outages.
⚠ Slips & Falls = Liability Risk
⚠ Poor visibility = Code violation
⚠ Power outages = unsafe egress
Ecoglo® solves all 3 — permanently.
Get Quote for Your Project- ✔ Designed specifically for carpeted commercial staircases
- ✔ Helps pass inspections & meet building code requirements
- ✔ Trusted by contractors, property managers & facilities teams
- ✔ Reduces slip risks in high-traffic areas
Code-Compliant When It Matters Most!
Prevent falls, guide occupants during power outages, and support building and fire safety compliance with Ecoglo® photoluminescent stair nosings.
Improve Visibility. Support Safer Egress. Reduce Risk.
Don’t Risk Failing Inspection — Or Liability
Poor stair visibility during emergencies can lead to serious injuries, failed inspections, and costly liability.
✔ Pass Inspection
✔ Avoid Liability
✔ Stay Compliant
✔ Protect Occupants
Ecoglo® is engineered to support building, fire, and life safety code requirements—helping you improve egress visibility, support inspection readiness, and protect occupants with a reliable, always-on solution.
Built to Meet Critical Safety Standards
Designed to support building, fire, and life safety code requirements—helping you improve inspection readiness and reduce risk.
✔ Helps support code compliance & safer egress pathways
Designed for Commercial Projects
- ✔ Carpeted Staircases in Commercial Buildings
- ✔ Meets Code Compliance & Inspection Requirements
- ✔ Perfect for Retrofits & New Construction Projects
- ✔ Trusted by Contractors, Architects & Facility Managers
Trusted Safety. Proven Performance.
Designed to meet strict safety standards and trusted in commercial environments across North America.
Always On!
Even When the Lights Go Out.
Just reliable, code-ready visibility when it matters most.
Ecoglo® Glow in the Dark Stair Nosing
Advanced photoluminescent and non-slip technology help improve stair visibility, support safer egress, and reduce slip risk when lighting conditions change.
Why Ecoglo® Works
Environmentally Friendly. Built for Performance.
✔ LEED Points Qualified
✔ Zero Energy Consumption
✔ Non-Radioactive & Non-Toxic
✔ 100% Recyclable – No Disposal Cost
✔ UV Stability (Indoor & Outdoor Performance)
✔ Salt Spray Resistance
✔ Freeze-Thaw Resistant
✔ High Abrasion Resistance
✔ Easy to Clean & Washable
✔ Non-Flammable – Does Not Burn
Ecoglo® vs Emergency Lights
See the difference in real emergency conditions.
No Power. No Failure. Always Visible.
The Ecoglo® C4-E20 Meets Building, Fire & Life Safety Codes
Code-Compliant Visibility When Every Second Counts!
Helps support safer egress, stronger code-readiness, and better stair visibility in critical moments.
IBC / IFC
Section 1025 – Luminous Egress Path Markings
NFPA 101®
Designed to meet NFPA 101® Life Safety Code requirements.
NYC Building Code 2018
Section BC 1025 – Luminous Egress Path Markings
NYC LL 141 of 2013
Section BC 1025 – Luminous Egress Path Markings
NYC LL 26 of 2004
Reference Standard 6-1
California Building Code
Section 1025 – Exit Passageways
Connecticut State Fire Safety Code
Section 1026 – Floor Proximity Egress Path Markings
Benefits of Ecoglo® Contrast Strips
Code-Compliant. Power-Free. Fail-Safe.
Ecoglo® photoluminescent exit signs and egress systems meet UL 924, NFPA 101®, and IFC standards—delivering reliable, maintenance-free visibility when the lights go out.
Why Ecoglo® Wins vs Alternatives
✔ No Power ✔ No Failure ✔ Code-Compliant

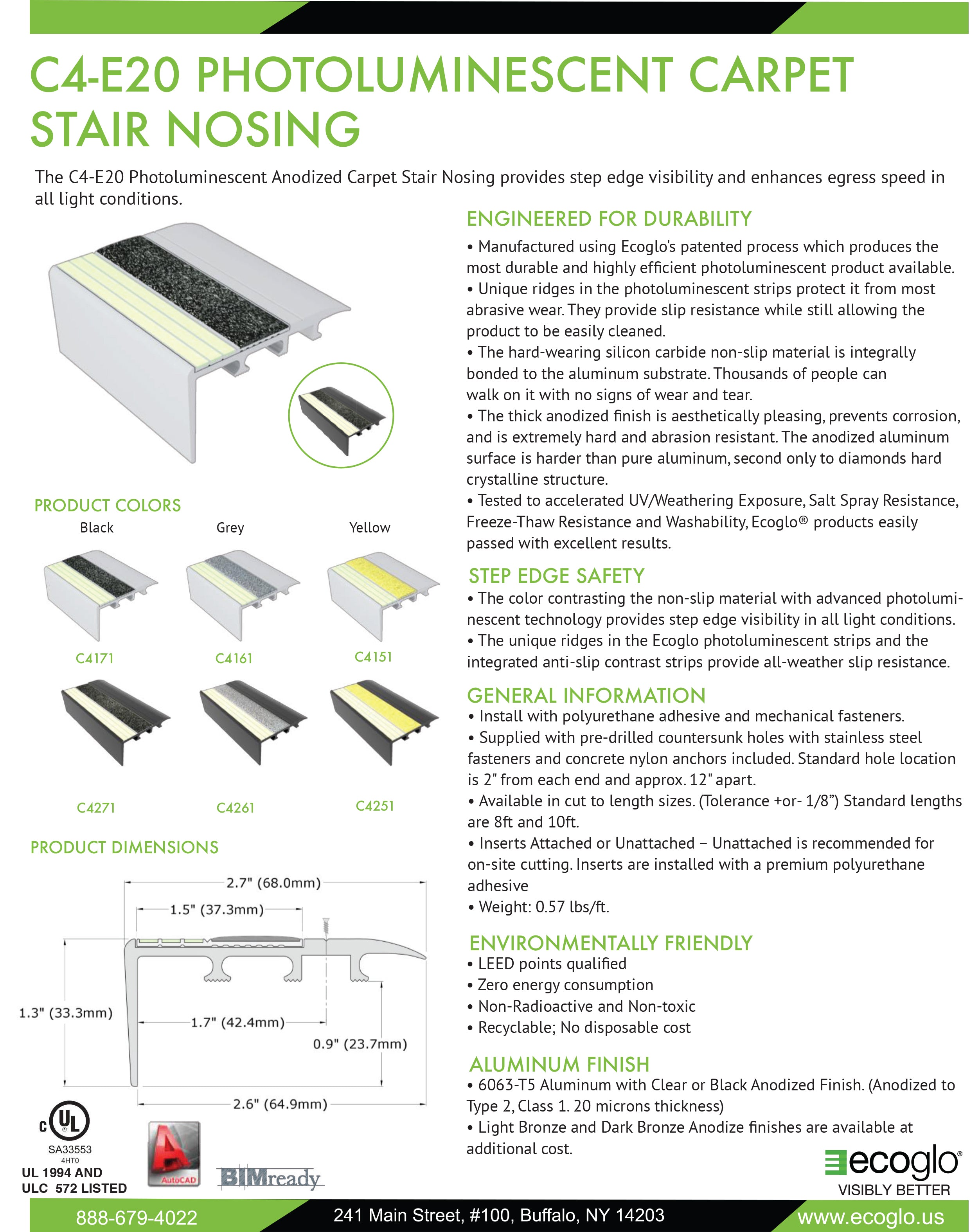

Download C4-E20 Series Data Sheet
Detailed product specifications, dimensions, and compliance information for accurate planning and project approval.

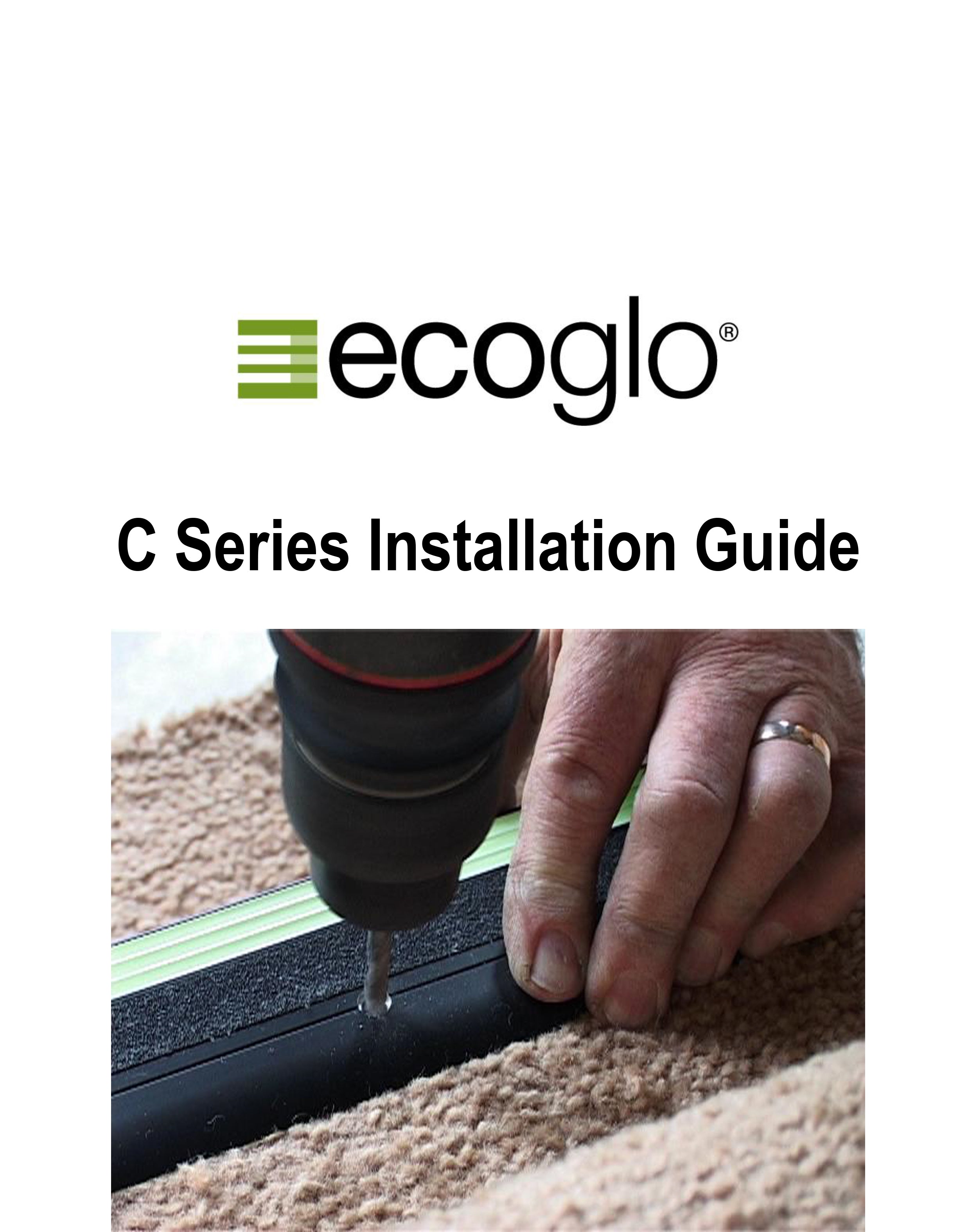

Download Installation Guide
Step-by-step instructions to ensure fast, accurate installation and long-term performance.
Download Compliance Guide
Stay compliant with IBC, IFC, and fire safety codes. This guide helps ensure your project meets inspection requirements and avoids costly delays.
Talk to Our
Ecoglo® Safety Experts
Get expert guidance from engineers and photoluminescent safety specialists to ensure your project meets code, stays on schedule, and passes inspection.
Bulk Pricing • Code Compliance • Custom Solutions
Call 855.277.0306 • Trusted by contractors, architects & facility managers

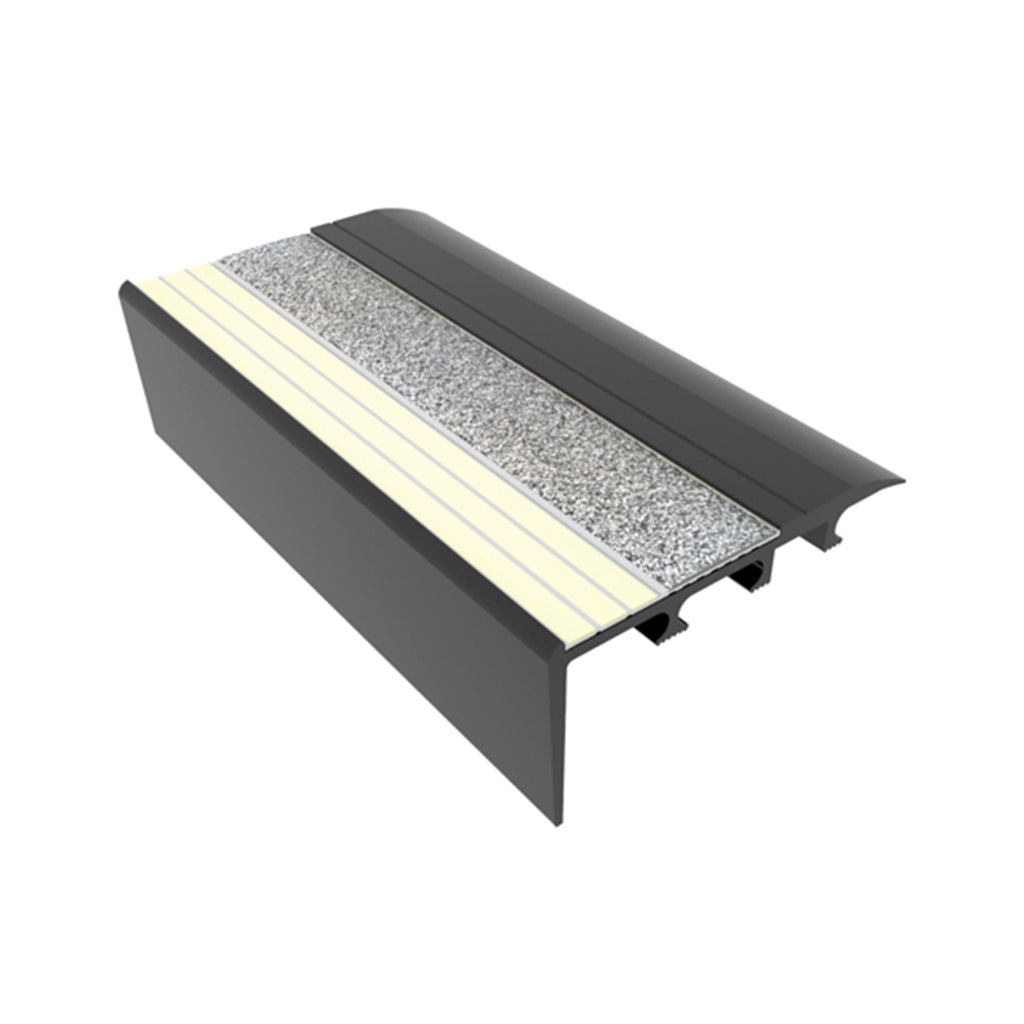

C Series Carpet Stair Nosings Available in standard clear aluminized aluminum
(Type 11, Class 1).
Black, bronze and custom color anodizing available upon request, as a special order.
Why Ecoglo® C4-E20 Is Chosen for Luminous Egress Projects
Photoluminescent guidance with integrated anti-slip performance, making it a strong fit for code-driven stair upgrades where visibility, durability, and low-maintenance performance all matter.
Built for luminous egress applications, C4-E20 provides passive guidance with zero energy consumption, avoiding wiring, batteries, and ongoing electrical maintenance.
The photoluminescent strips feature protective ridges designed to help reduce abrasive wear while still allowing the surface to be cleaned more easily.
The integrated anti-slip contrast strips work alongside the luminous insert to support both traction and egress path visibility in the same profile.
With bonded silicon carbide anti-slip material, anodized aluminum construction, and tested resistance to weathering and wear, this is built for demanding everyday use.
Best Fit Projects for Ecoglo® C4-E20
Technical Snapshot
Referenced Codes & Standards
Why C4-E20 Beats Basic Glow Tape and Temporary Fixes
Not a peel-and-stick afterthought. The luminous and anti-slip elements are integrated into a commercial-grade aluminum nosing.
Supports luminous egress guidance without adding electrical infrastructure or ongoing energy costs.
Better suited to demanding public stairways than temporary tapes or coatings that wear faster under daily use.
Strong fit for projects where code-driven egress markings, durability, and maintenance all matter.
Sustainable and Low-Maintenance by Design
Planning a Luminous Egress Upgrade?
Access technical documents, CAD resources, BIM files, or request project pricing for C4-E20.
Frequently Asked Questions
What is the Ecoglo® C4-E20 Luminescent Carpet Stair Nosing used for?
It is designed to improve step-edge visibility and help enhance egress safety in low-light and emergency conditions. It also includes a non-slip surface to help reduce the risk of slips on carpeted stairs.
Does the Ecoglo® C4-E20 glow in the dark?
Yes. This stair nosing uses advanced photoluminescent technology that absorbs ambient light and glows in darkness, helping provide visible guidance when the lights go out.
Is the Ecoglo® C4-E20 slip-resistant?
Yes. It features durable silicon carbide non-slip ridges bonded to an aluminum base to provide added traction and improve stair safety.
Can this stair nosing be used indoors and outdoors?
Yes. The Ecoglo® C4-E20 is designed for both indoor and outdoor use and is tested for UV stability, salt spray resistance, freeze-thaw resistance, and washability.
What sizes are available?
The Ecoglo® C4-E20 is available in a 2.7" width x 1.3" height profile and comes in standard lengths of 2, 4, 6, 8, or 10 feet. Custom-cut lengths are also available.
What colors and finishes are available?

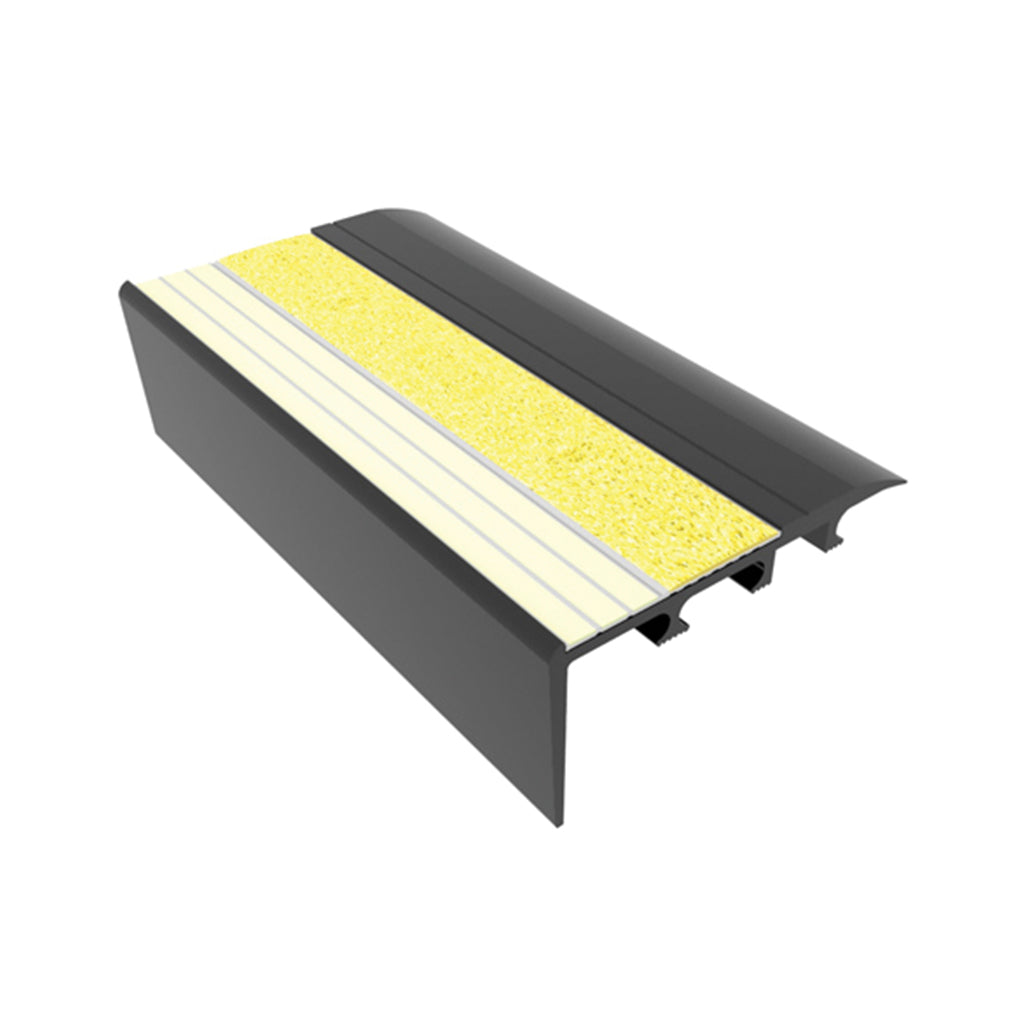

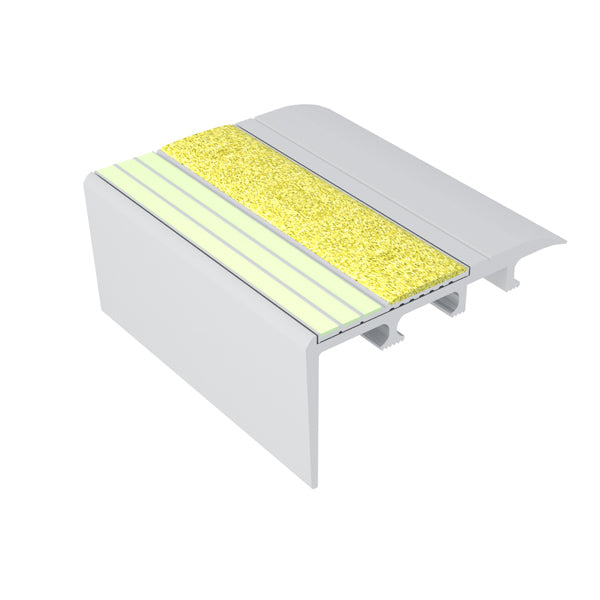

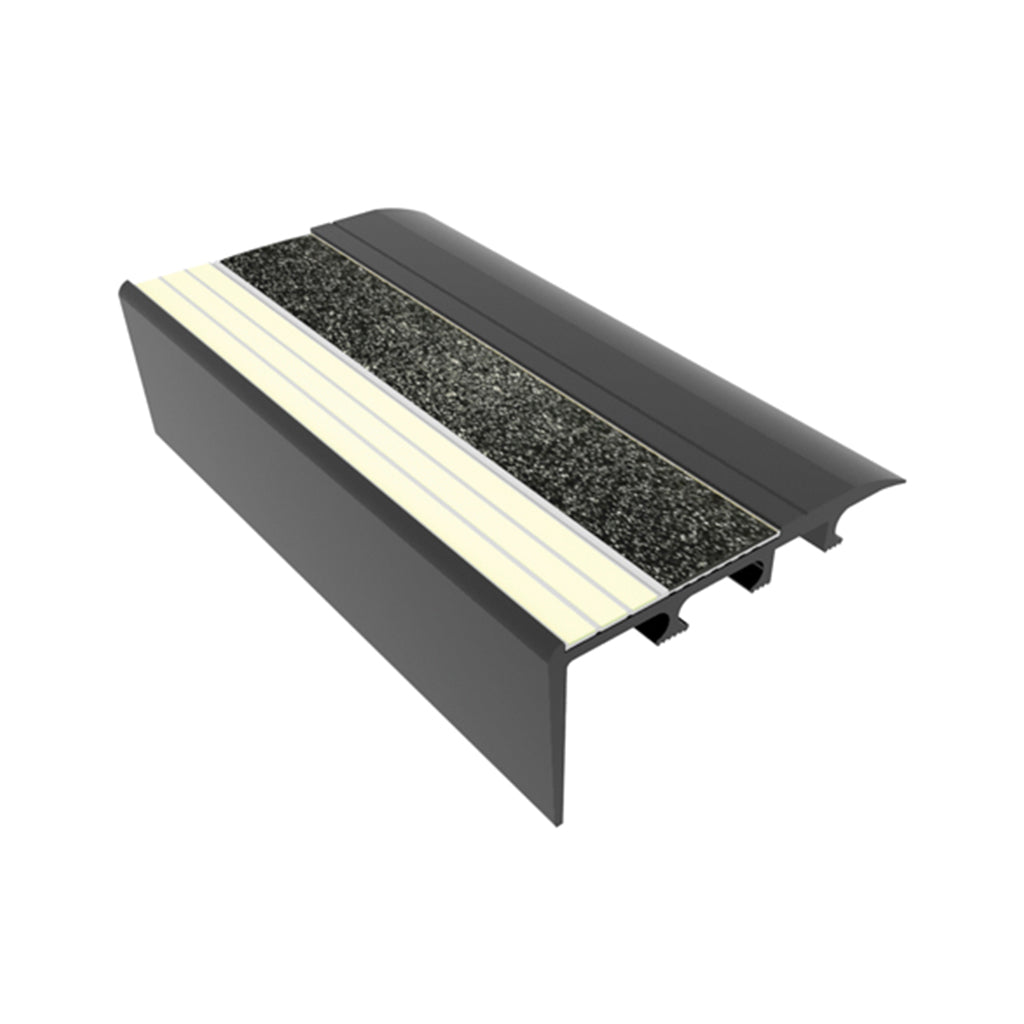

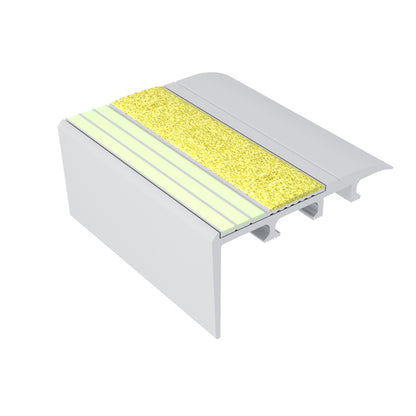

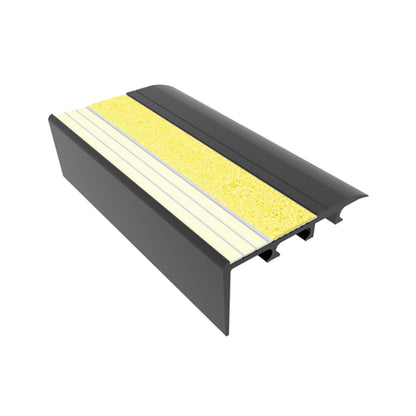

This product is available in aluminum black, grey, and yellow, as well as anodized black, grey, and yellow finishes to suit different stair designs and visibility requirements.
Is the Ecoglo® C4-E20 code compliant?
It is designed to meet luminous egress path marking requirements and the page references IBC/IFC Section 1025, NFPA 101, NYC Building Code, CBC, and Connecticut Fire Safety Code. Always confirm final project requirements with your local authority having jurisdiction.
Is this product UL certified?
Yes. The page states that the Ecoglo® C4-E20 is UL 1994 certified.
How is the Ecoglo® C4-E20 installed?
It is supplied with pre-drilled countersunk holes, stainless steel fasteners, and concrete nylon anchors. Inserts may be attached or unattached, and polyurethane adhesive is used for insert installation.
Can the product be cut to custom lengths?
Yes. Custom-cut lengths are available with a ±1/8" tolerance. Unattached inserts are recommended when on-site cutting is required.
Is the Ecoglo® C4-E20 durable for high-traffic areas?
Yes. It is engineered for long-term performance and heavy foot traffic, with an abrasion-resistant anodized aluminum base and durable non-slip surface.
Does this product require electricity or wiring?
No. Ecoglo® photoluminescent products are power-free, maintenance-free, and designed to remain visible in darkness without wiring or electrical power.
Is the Ecoglo® C4-E20 environmentally friendly?
Yes. The page describes it as LEED-qualified, recyclable, non-radioactive, non-toxic, and zero energy consumption.
Does the Ecoglo® C4-E20 come with a warranty?
Yes. The product includes a 5-year limited warranty.
Ecoglo® Projects
-
Bank of America Plaza features Ecoglo®’s complete emergency egress system, including step-edge, handrail, and perimeter markings, plus emergency door indicators, directional signs, and floor ID signs.
-
Ecoglo® installed a complete egress pathmarking system with included handrail marking, perimeter marking, obstruction
markings and Ecoglo®’s stair nosing. -
Ecoglo® Products installed include UL 924 listed exit signs, photoluminescent directional signs and photoluminescent
pathmarking strips developed specifically for The Pentagon. -

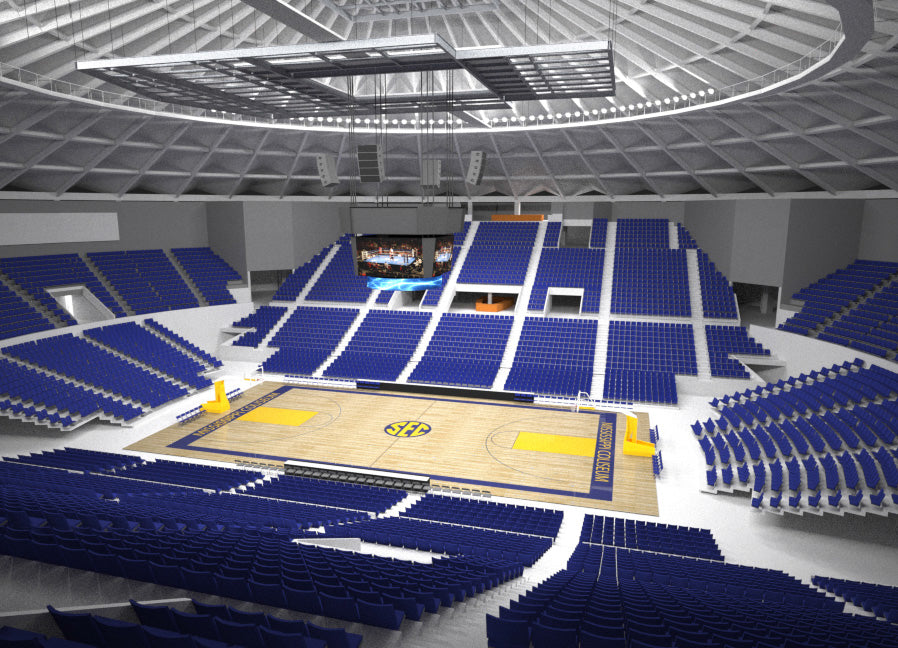

The 6,500-seat Mississippi Coliseum in Jackson features Ecoglo®’s luminous handrail and step-edge markings to reduce trip and fall risks during major events.
Ecoglo®
Schools & Universities
Emergency egress, code compliance.
Boost stair safety in schools with Ecoglo®’s glow-in-the-dark contrast strips. Designed for high-traffic areas, they provide a non-slip grip and visible step edges—even during power outages. Ideal for stairwells, exits, and hallways.
Ecoglo®
Stadiums
Perfect for stadiums, these glow-in-the-dark strips enhance step visibility and traction in all lighting conditions. Durable and slip-resistant, they help guide crowds safely during power outages or low-light events.
Ecoglo®
Condo & Apartment Buildings
Reduce insurance risk.
Designed for condos and apartment buildings, these glow-in-the-dark strips improve stair safety by enhancing visibility and traction in all light conditions. Durable and low-maintenance, they help meet updated building and fire safety codes—ideal for stairwells, exits, and common areas.
Ecoglo®
Hospitality & Lodging
Guest safety during blackouts.
Perfect for hotels and lodging facilities, these glow-in-the-dark strips enhance guest safety by improving stair visibility and slip resistance. Durable and discreet, they help meet updated building codes and provide reliable guidance during low light or emergency situations.
General Information
Install with premium polyurethane adhesive.
- Option for mechanical fasteners.
- Do not use mechanical fasteners when installing outdoors.
- Available in cut to length sizes. (Tolerance +or- 1/8”) Standard lengths are 8ft and 10ft.
- Weight: 0.1 lbs/ft.
Engineered for Durability
- Manufactured using Ecoglo®’s patented process which produces the most durable and highly efficient photoluminescent product available.
- Unique ridges in the photoluminescent strips protect it from most abrasive wear. They provide slip resistance while still allowing the product to be easily cleaned.
- The hard-wearing silicon carbide non-slip material is integrally bonded to the aluminum substrate. Thousands of people can walk on it with no signs of wear and tear.
Superior Step Edge Safety
- The color contrasting the non-slip material with advanced photoluminescent technology provides step edge visibility in all light conditions.
- The unique ridges in the Ecoglo® photoluminescent strips and the integrated anti-slip contrast strips provide all-weather slip resistance.
Installed Durability:
- The rigid aluminum base spreads any applied load over a greater area of installation adhesive. Installation with a premium polyurethane adhesive/sealant is extremely durable, moisture resistant, and works very well on both smooth and textured surfaces.
For Indoor Use and Outdoor Use:
- Tested to accelerated UV/weathering exposure, and proven to be highly resistant to the effects of UV/weathering.
- The loss in performance is less than can be detected by the human eye when subjected to 6000 hours of UV exposure, which is similar to 30 years of outdoor exposure.
- The polymer used in Ecoglo’s patented process is “long chain” which forms a strong UV resistant product when bonding.
Environmentally Friendly Photoluminescent Contrast Strip
- LEED points qualified
- Zero energy consumption
- Non-Radioactive and Non-toxic
- Recyclable; No disposable cost
