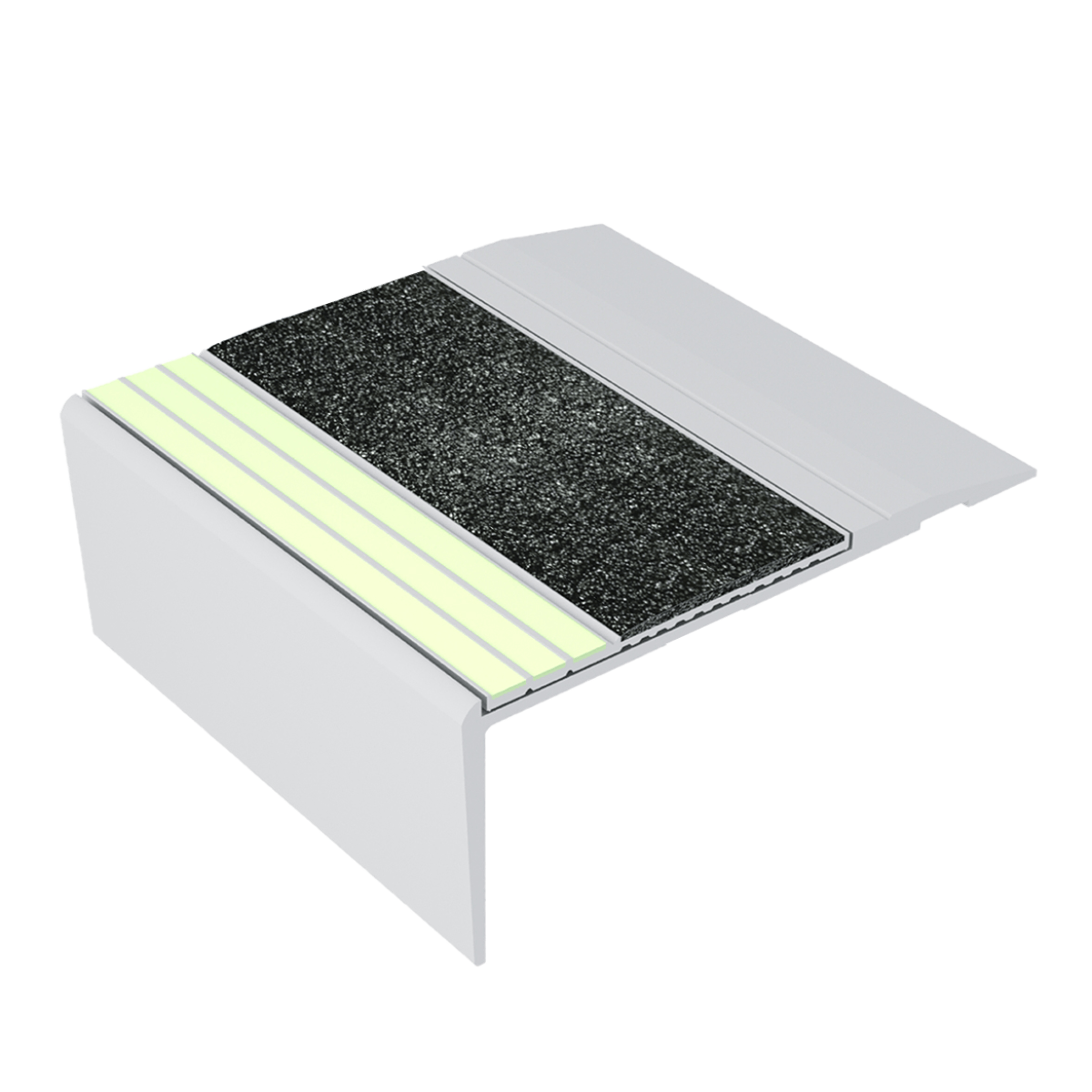

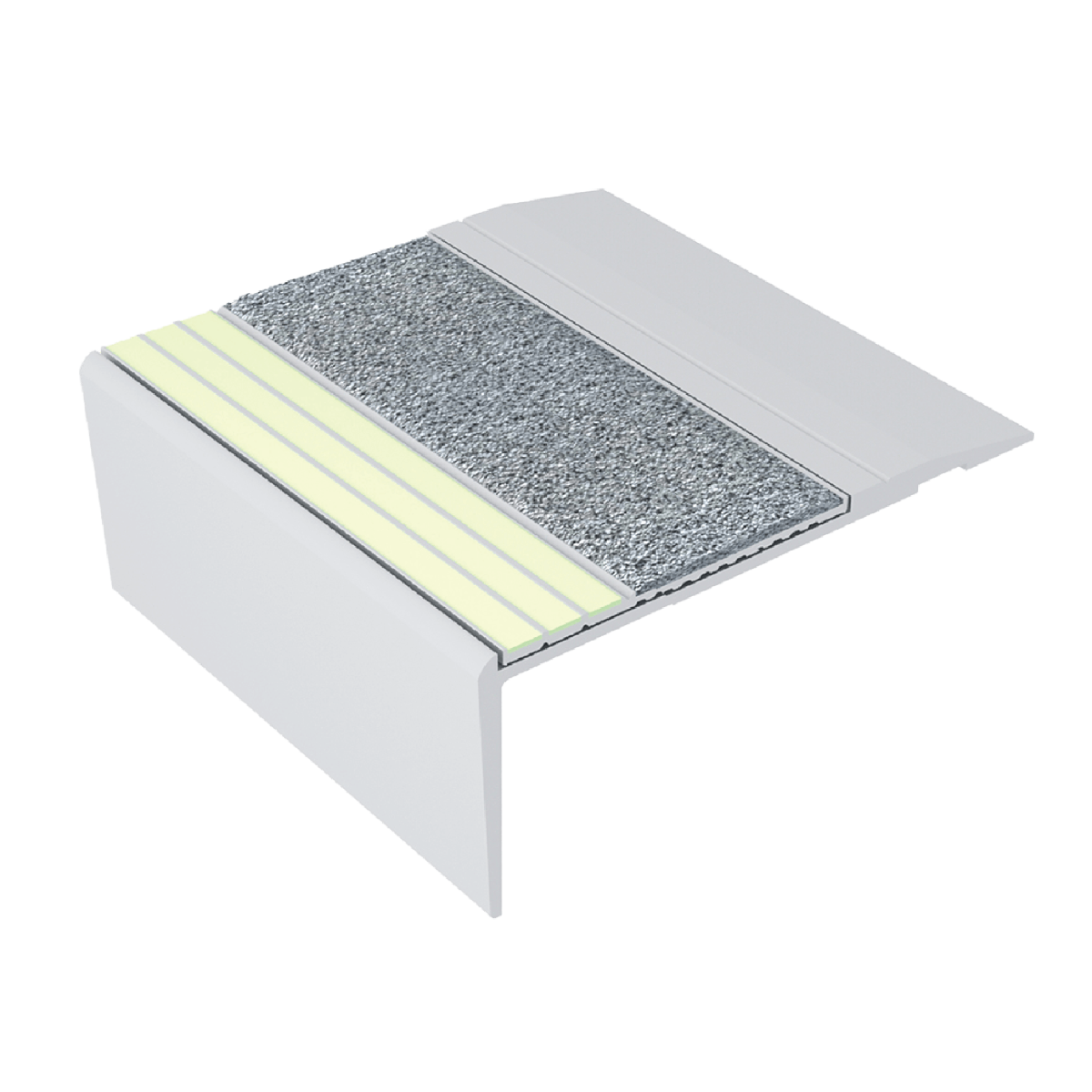

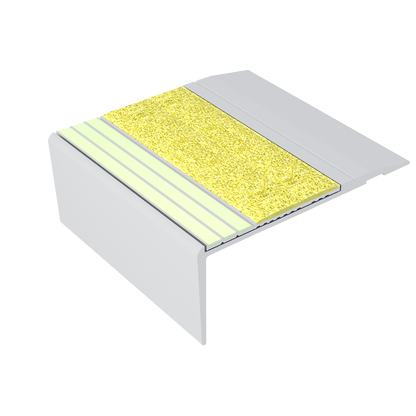

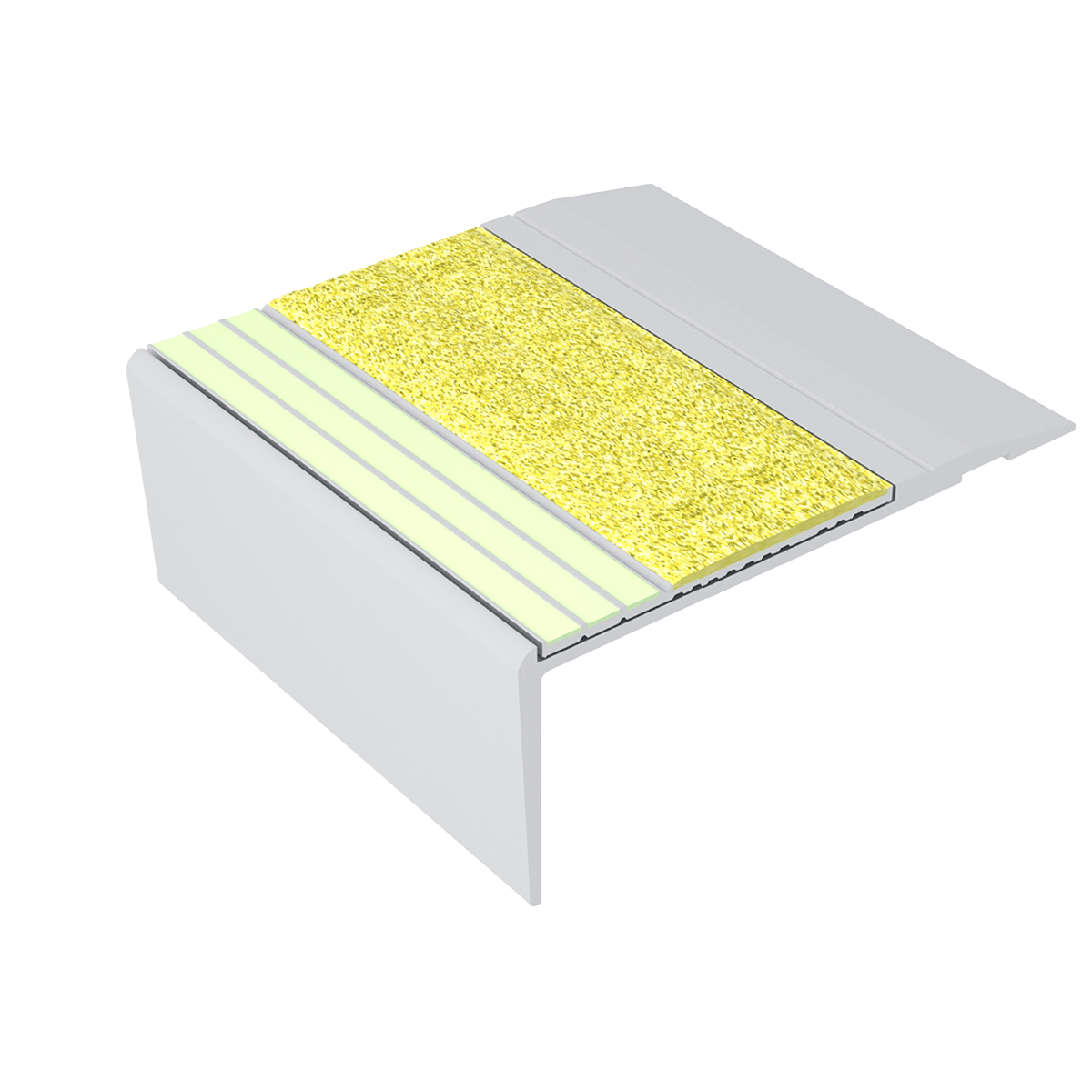

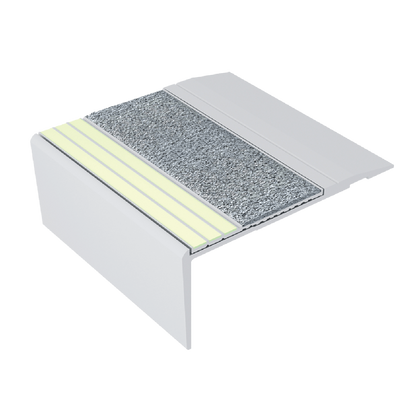

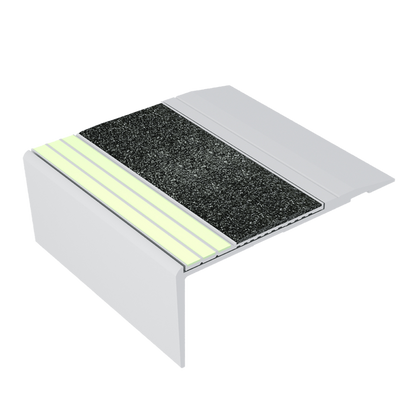

Ecoglo® F4B-E30, 3.2" Wide Photoluminescent Flat Stair Nosing for Egress Safety

Ecoglo® F4B-E30 Photoluminescent Flat Stair Nosing for Egress Safety

A 3.2-inch-wide, right-angled aluminum stair nosing that provides photoluminescent step-edge visibility, durable slip resistance and improved pathfinding after the lights go out.

The Ecoglo® F4B-E30 Photoluminescent Flat Stair Nosing is designed to fit over the edge of steps in public stairways, exit stairs, egress routes and other locations where visibility and pathfinding in darkness are important.

Ecoglo® photoluminescent technology absorbs and stores energy from normal ambient lighting, then remains visible for an extended period when lighting is reduced or electrical power is lost. The luminous strips, contrasting non-slip insert and right-angled aluminum profile help identify the step edge in both light and dark conditions, supporting safer and more efficient emergency egress.

The F4B-E30 also incorporates a hard-wearing silicon carbide non-slip surface that supplements the stair’s existing slip-resistant properties. It can be installed over concrete, timber, tile, steel, checker plate and thin carpeted stairs. It may also be fitted over suitable commercial or industrial carpet without underlay up to 6 mm, approximately 0.24 inch, thick.

• ✔

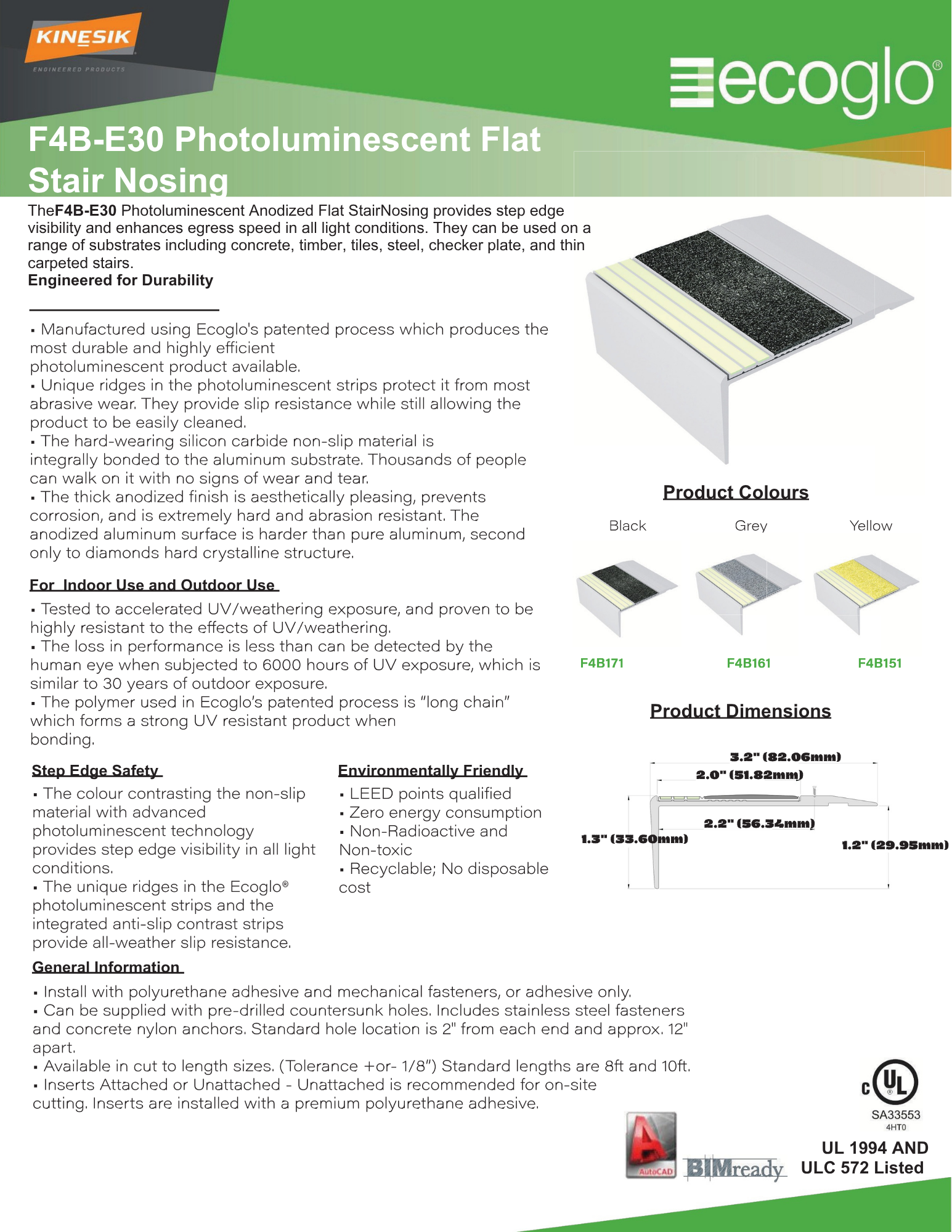

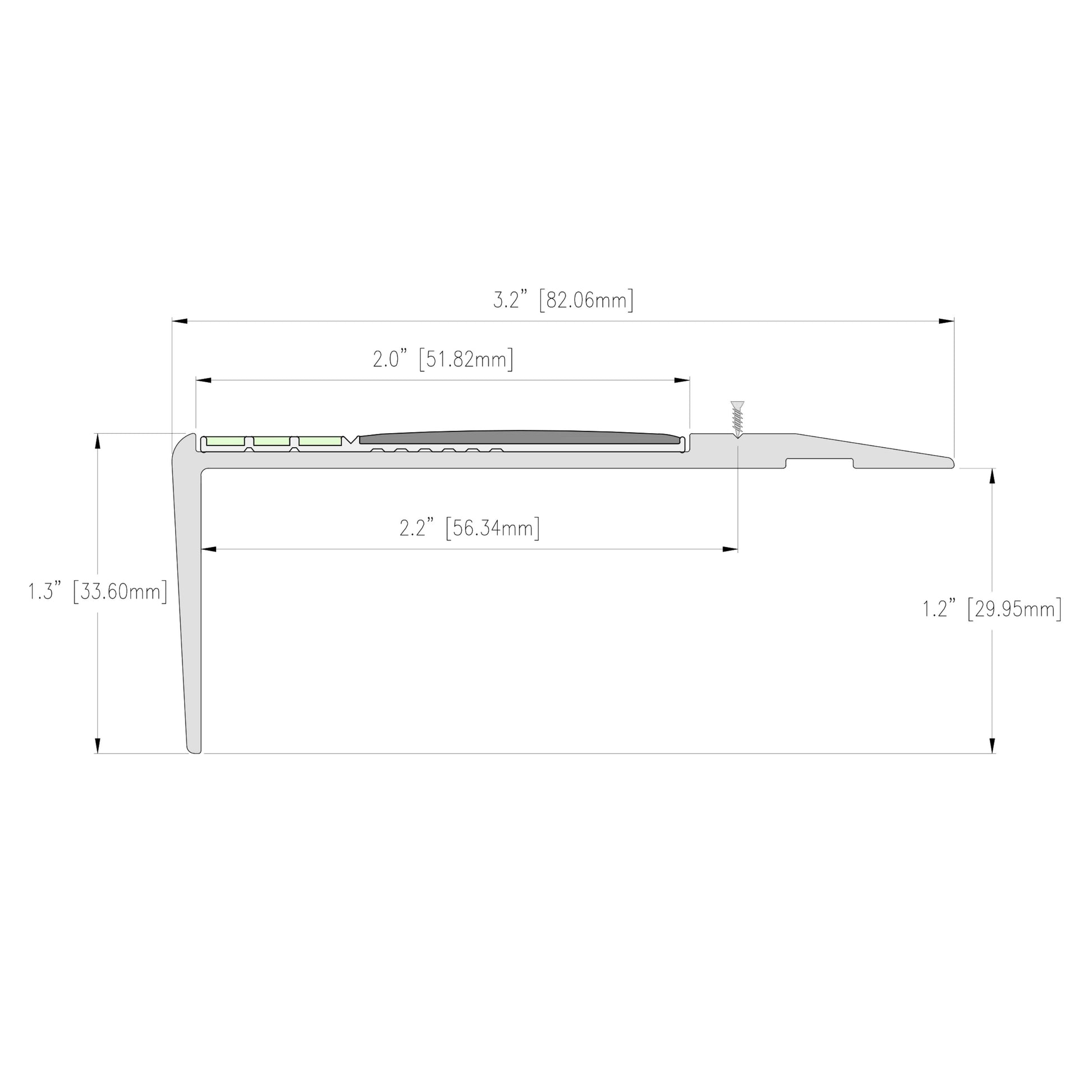

  3.2-inch-wide right-angled profile: The attached F4B-E30 data sheet specifies an overall width of 3.2 inches or 82.06 mm.
• ✔
  Photoluminescent step-edge visibility: Provides visible step-edge guidance in normal lighting and after the lights go out.
• ✔
  Supports safer emergency egress: Helps occupants identify stair edges and follow the egress path during darkness, reduced lighting and power failure.
• ✔
  Right-angled aluminum construction: Designed to fit over and protect the front edge of existing steps.
• ✔
  UL 1994 and ULC 572 Listed: Listed for photoluminescent egress-marking applications as identified in the manufacturer’s data sheet.
• ✔
  Indoor and outdoor use: Designed and tested for durable performance in interior and exterior stair applications.
• ✔
  Multiple compatible substrates: Suitable for concrete, timber, tile, steel, checker plate and thin carpeted stairs.
• ✔
  Suitable over thin commercial carpet: May be fitted over suitable industrial or commercial carpet without underlay up to 6 mm, approximately 0.24 inch, thick.
• ✔
  Patented photoluminescent technology: Manufactured using Ecoglo®’s process for high-brightness, long-lasting photoluminescent performance.
• ✔
  Protected luminous strips: Unique raised ridges help shield the photoluminescent material from abrasive foot traffic while allowing easier cleaning.
• ✔
  Integrated non-slip protection: A hard-wearing silicon carbide non-slip insert is integrally bonded to the aluminum substrate.
• ✔
  Designed for heavy foot traffic: The bonded non-slip material is engineered to withstand thousands of foot passes without visible signs of wear.
• ✔
  Improved step-edge contrast: The contrasting non-slip insert and photoluminescent strips clearly define the leading edge of each stair.
• ✔
  Slip-resistant in varied conditions: The luminous ridges and integrated anti-slip insert provide all-weather slip resistance.
• ✔
  Durable anodized finish: The hard anodized surface provides an attractive architectural finish while helping resist corrosion, abrasion and everyday wear.
• ✔
  UV and weather resistant: Tested for accelerated UV exposure, salt-spray resistance and freeze-thaw performance.
• ✔
  Long-term outdoor performance: The manufacturer reports performance loss below human-eye detection after 6,000 hours of UV exposure, described as comparable to approximately 30 years of outdoor exposure.
• ✔
  Easy to clean: The profile and protected luminous strips are designed for practical washability and stain resistance.
• ✔
  Flexible installation: Install with premium polyurethane adhesive and mechanical fasteners, or with adhesive only where appropriate.
• ✔
  Pre-drilled countersunk holes: Available pre-drilled for a clean, secure mechanical installation.
• ✔
  Installation hardware included: Supplied with stainless steel fasteners and concrete nylon anchors.
• ✔
  Standard hole spacing: Holes are normally positioned 2 inches from each end and approximately 12 inches apart.
• ✔
  Standard and custom lengths: Available in standard 8-foot and 10-foot lengths, with cut-to-length options supplied to a tolerance of ± 1/8 inch.
• ✔
  Attached or unattached inserts: Unattached inserts are recommended when the aluminum profile will be cut on site.
• ✔
  Weight: Approximately 0.462 lb per linear foot.
• ✔
  6063-T5 aluminum: Available in mill finish or with clear or black anodized finishes.
• ✔
  Architectural anodizing: Clear and black finishes are anodized to Type 2, Class 1, with a 20-micron coating thickness.
• ✔
  Special-order finishes: Light bronze and dark bronze anodized finishes are available at an additional cost.
• ✔
  Zero energy consumption: Operates without wiring, batteries or electrical power.
• ✔
  Non-radioactive and non-toxic: Tested for radioactivity and toxic-gas generation.
• ✔
  Recyclable aluminum construction: Aluminum-based and 100% recyclable, with no ongoing electrical component-disposal requirements.
• ✔
  Recycled material content: Approximately 20% of the aluminum content in the Ecoglo® secondary billet specification is recycled scrap.
• ✔
  May contribute toward LEED credits: Supports applicable construction-waste, recycled-content and low-emitting-material objectives.
